Sioux Tools SDR6P - Manual (Page 22)

Form ZCE772B 22 Date 2013November5/B
25
12
13
14
15
16
17
18
19
20
21
22
24
6
1
4
5
2
3
7
8
9
10
11
23
34
35
36
37 38
28
29
30
31
32
33
26
27
39
40
41
42
43
44
25. SPSDR-9 Reversing Manifold (Includes Figures 24 thru 28)
26. ME1A189 Spring (2)*
27. ME9A14 Steel Ball (2)*
28. 04215 O-Ring
29. SPSDR-2 Pistol Reversing Housing
(Includes Figures 24 thru 28)
30. SDR-16 Reversing Shuttle
31. SDR-12 Reversing Mechanism Screw
32. SPSDR-28 Grip (Includes Grip Tape)
33. 30610 Roll Pin 5/64 x 3/4 in
34. 21542 Retaining Ring
35. 14311 O-Ring
36. SDR-23 Trigger Sleeve
37. SDR-200 Trigger
38. 04046 Silencer Pad (2)*
39. IM3100-22 Tipper Valve Seat
40. SDR-20 Tipper
41. SDR-13 Trigger Spring
42. 69007 O-Ring
43. SDR-35 Exhaust Cap
44. 66244R Inlet Adapter
Not Shown:
SPSDR-7AR 7 Tooth Rotor Motor Assembly (2000 & 4000 RPM)
(Includes Figures 15 thru 23)
SPSDR-8AR 10 Tooth Rotor Motor Assembly (2500 RPM)
(Includes Figures 15 thru 23)
SPSDR-2A Reversing Housing Assembly
(Includes Figures 24 thru 44)
SPSDR-61A Gear Carrier Assembly (2000 RPM)(3/8" thread)
(Includes Figures 5 thru 9)
SPSDR-62A Gear Carrier Assembly (2500 RPM)(3/8" thread)
(Includes Figures 5 thru 9)
SPSDR-63A Gear Carrier Assembly (4000 RPM)(3/8" thread)
(Includes Figures 5 thru 9)
SPSDR-64A Gear Carrier Assembly (2000 RPM)(1/2" thread)
(Includes Figures 5 thru 9)
30202 Chuck Key 1/4"
30002 Chuck Key 3/8"
30429 Chuck Key 1/2"

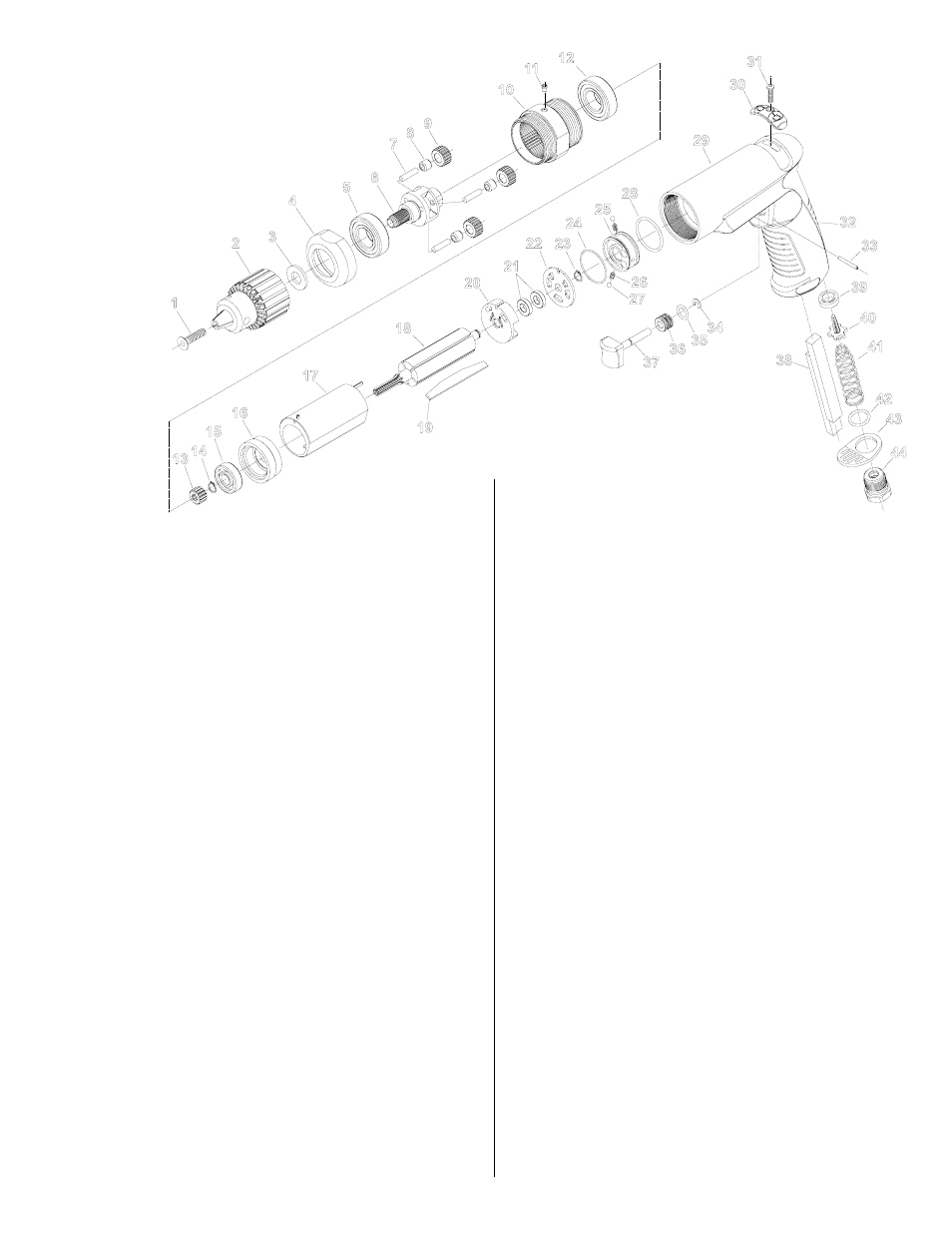

PARTS LIST FOR SDR10P STANDARD REVERSING
SERIES DRILLS, SINGLE REDUCTION
SERIAL “C”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R Chuck Screw
2. 21019B 1/4" Chuck (for model numbers ending with 2)
21133B 3/8" Chuck (for model numbers ending with 3)
PDR3000-2 3/8" Keyless Chuck
(for model numbers ending with RK3)
74222 1/2" Chuck (for model numbers ending with 4)
3. ME5A72 Spacer (for model numbers ending with 2 or 3)
35798 Spacer (for model numbers ending with 4)
4. SDR-43 Gear Case Cap
5. 10265 Ball Bearing
6. SDR-61 Gear Carrier (2000 RPM)(3/8" thread)
SDR-62 Gear Carrier (2500 RPM)(3/8" thread)
SDR-63 Gear Carrier (4000 RPM)(3/8" thread)
SDR-64 Gear Carrier (2000 RPM)(1/2" thread)
7. SDR-24 Pin (3)*(2000 & 2500 RPM)
30062 Pin (3)*(4000 RPM)
8. 10028B Needle Bearing (3)*(2000 & 2500 RPM)
10040 Needle Bearing (3)*(4000 RPM)
9. SDR-44 Planetary Gear (3)* (2000 RPM)
SDR-45 Planetary Gear (3)* (2500 RPM)
SDR-46 Planetary Gear (3)* (4000 RPM)
10. SDR-40 Single Reduction Gear Case (Includes Figure 11)
11. 30375 Grease Fitting
12. ME11A33A Ball Bearing
13. SDR-47 Sun Gear (4000 RPM only)
14. 21491 Retaining Ring (4000 RPM only)
15. 10220 Ball Bearing
16. SDR-80 Front End Plate
17. SP74130 Cylinder, Reversing
18. SDR-7 Rotor (7 tooth)(2000 & 4000 RPM)
SDR-8 Rotor (10 tooth)(2500 RPM)
19. SP74048 Vane Set
20. SDR-11 Rear End Plate
21. SDR-26 Ball Bearing (2)*
22. SDR-10 Reversing Plate
23. 21491 Retaining Ring
24. 69017 O-Ring
*Order Quantity As Required
FURNISH CATALOG, SERIAL,
AND MODEL NUMBER
WHEN ORDERING PARTS
