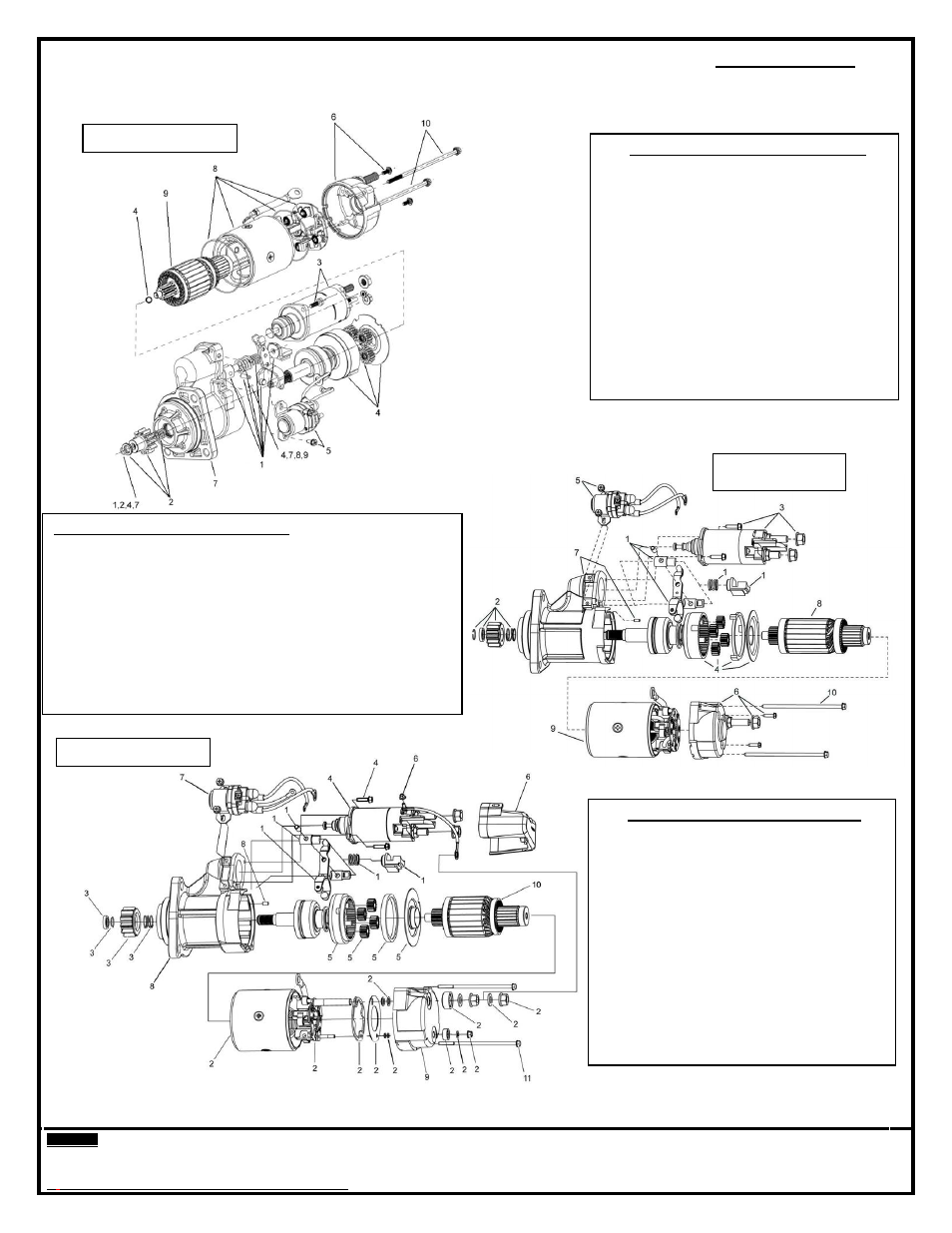

THESE EXPLODED PARTS VIEWS OF 29MT - 38MT - 39MT STARTERS ARE AVAILABLE ON www.delcoremy,com
WEBSITE UNDER PRODUCTS AND SERVICE PARTS
29MT STARTER
29MT SERVICE PARTS PACKAGES
1. LEVER
2. PINION
3. SOLENOID ASSEMBLY
4. DRIVE SHAFT ASSEMBLY
(WITHOUT PINION)
5. INTEGRAL MAGNETIC SWITCH
(IMS)
6. CE HOUSING
7. DRIVE HOUSING (NOSE)
8. FRAME & FIELD
9. ARMATURE ASSEMBLY
10. THRU BOLTS
HARDWARE PACKAGE MAY BE
NECESSARY
38MT STARTER
38MT SERVICE PARTS PACKAGES
1. LEVER
6. CE HOUSING
2. PINION 7. DRIVE HOUSING (NOSE)
3. SOLENOID ASSEMBLY 8. ARMATURE ASSEMBLY
4. DRIVE SHAFT ASSEMBLY 9. BRUSH & FRAME ASM.
(WITHOUT PINION) 10. THRU BOLTS
5. INTEGRAL MAGNETIC
SWITCH (IMS)
HARDWARE PACKAGE MAY BE NECESSARY
HARDWARE PACKAGE XXXXXXXX MAY BE NECESSARY
39MT SERVICE PARTS PACKAGES
1. LEVER
2. BRUSH & FRAME
3. PINION
4. SOLENOID ASSEMBLY
5. DRIVE SHAFT ASSEMBLY
6. JUMP START PROTECTION (JSP)
7. INTEGRAL MAGNETIC SWITCH
(IMS)
8. DRIVE HOUSING (NOSE)
9. CE HOUSING
10. ARMATURE ASSEMBLY
11. THRU BOLTS
HARDWARE PACKAGE MAY BE
NECESSARY
1.
39MT STARTER
