Dacor OB52 - Manual (Page 12)

10

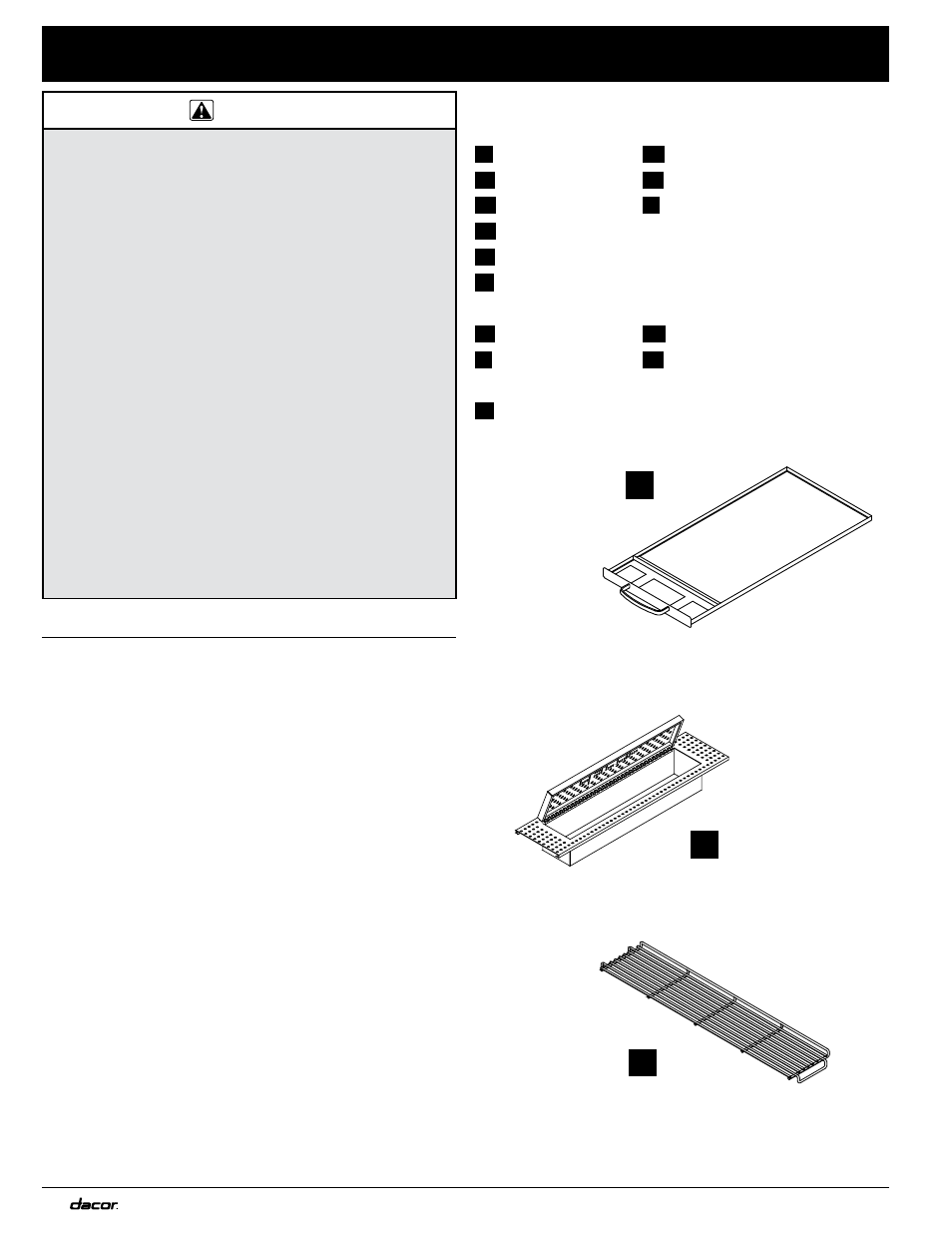

Parts List
Models oB36, oBs36, oB52 & oBs52:
A Drip tray G Rotisserie rod and forks
B Smoker box H Rotisserie motor
C Warming rack J Light lens pry stick
D Regulator assembly Match holder
E Grills Cleaning cream
F Flame spreaders
Models oB52, oBs52 & oBsB162
K Side burner grate M Side burner heads (2)
L Side burner cover N Side burner caps (2)
lp Models equipped for use with an lp cylinder:
P 3/4” coupling and nipple
Installation Instructions
warning
Before installing the appliance, make sure the elec-
•
trical and gas (on tank-less installations) service
meets the requirements specified in the Planning
the Installation section of this manual.
This appliance must be installed by a licensed
•
plumber or gas fitter when installed within the
Commonwealth of Massachusetts.
Excessive weight warning: Since the appliance and
•
grill cart are heavy, install the appliance with the help
of at least one other person.
Make sure the power cord is NOT connected to the
•
electrical outlet while connecting the gas line to the
appliance.
Do not apply excessive pressure when tightening
•
connections and fittings.
Do not use plumber’s putty or Teflon tape on gas
•
compression connections. Doing so can defeat the
proper sealing of these fittings.
Use only approved gas line thread compound or
•
tape to seal gas connections.
The maximum gas supply pressure to the regulator
•
must not exceed 1/2 pound per square inch.
Preparing for Installation
Before removing the unit from the box, check the 1.
labeling on the box to make sure that the appliance is
equipped for the gas type to be used. Liquid propane
units are identified by the “LP” designation at the end
of the model number. Do not proceed with installation
if you do not have the correct model. Conversion in the
field from one gas type to another is not permissible.
With the help of an assistant, remove the appliance 2.
and all the parts from the box. Check to make sure all
parts are included.
Remove all shipping materials from the appliance and 3.
peel off the protective plastic coating.
To reduce weight during installation, make sure all 4.
loose parts are removed from the grill.
A
B
C
