Delfield Flat Top 4560N - Manual (Page 2)

4560N Front-Breathing Flat Top Freezer Base
Model_#__________
CSI_Section
Printed_in_the_USA.__
07/07
DS4560N 980_S._Isabella_Road
Mt._Pleasant,_MI_48858
www.delfield.com Phone:_800-733-8948
Fax:_800-669-0619
Email:[email protected]
MODEL #OF SHELF STORAGE VOLTS/HERTz/ NEMA SHIP
NUMBER SHELVES AREA SQ. FT. CAP. CU. FT. H.P. PHASE AMPS PLUG WEIGHT
__ 4560N_ 2_ 7.36_ 15.7_ 1/3+_ 115/60/1_ 12_ 5-15P_ 340_lbs/_154kg
Mechanical Data — Standard Unit
INSTALLATION NOTE:
Refrigeration_system_is_designed_
so_that_air_will_flow_under_the_unit,_
through_the_compressor_area_and_out_
the_front_of_the_unit.__Any_restriction_
to_this_air_flow_path_will_void_the_
warranties.
PLEASE NOTE:
Air_flow_through_the_louver_on_the_
back_of_the_unit_is_not_necessary_
for_operation,_however,_any_air_
which_passes_through_the_louver_is_
beneficial.

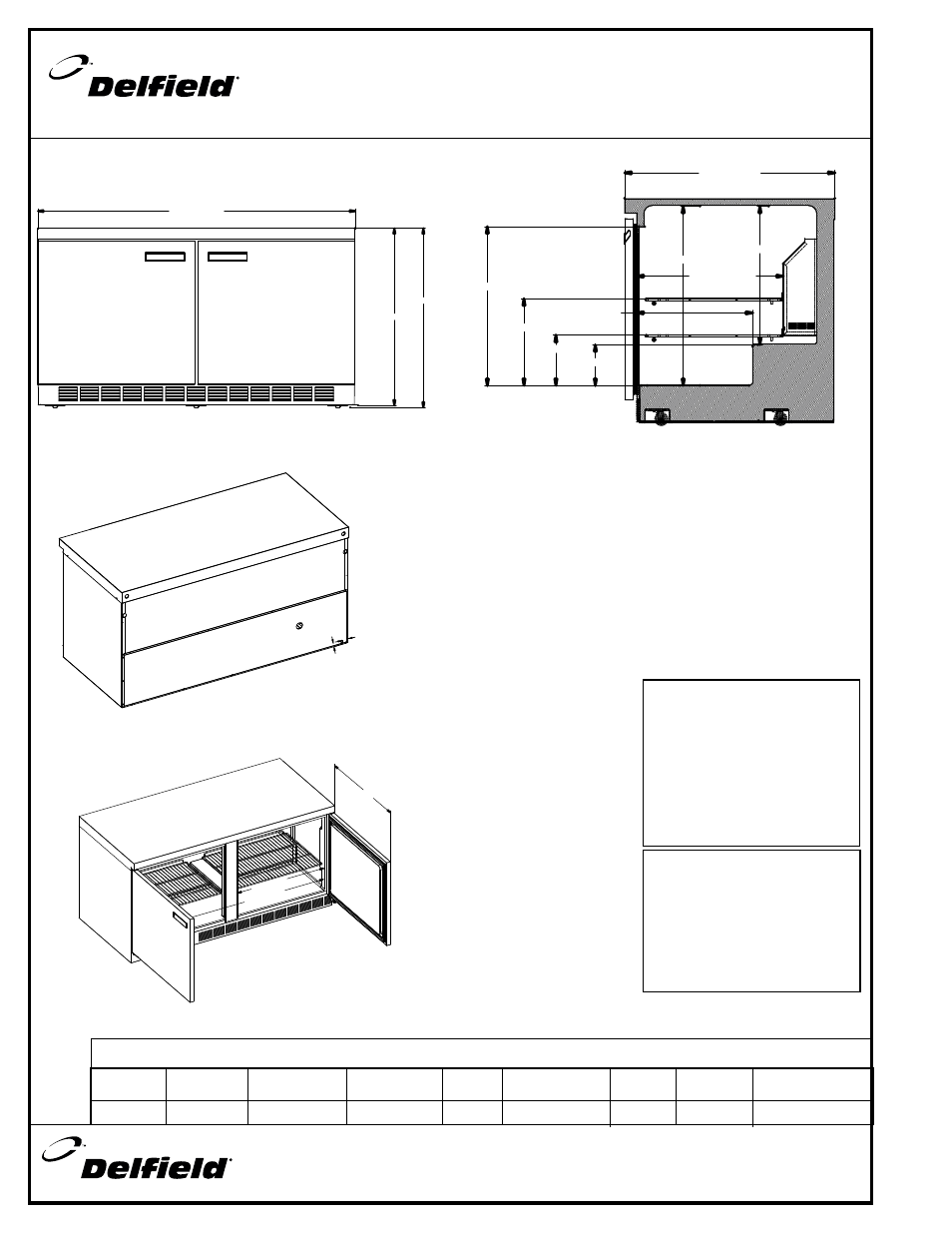

4560N_ISO_VIEW
4560N_ELEVATION_VIEW
4560N_RIGHT_SIDE_VIEW
#/2$
./3%
3(%,&
!,4
./3%
$//2
).4%2)/2
3(%,&
!,4
./3%
$//2
).4%2)/2
3(%,&
!,4
./3%
$//2
).4%2)/2
4560N_ISO_VIEW
