4575/76 HP/HT Pressure Reactors
21

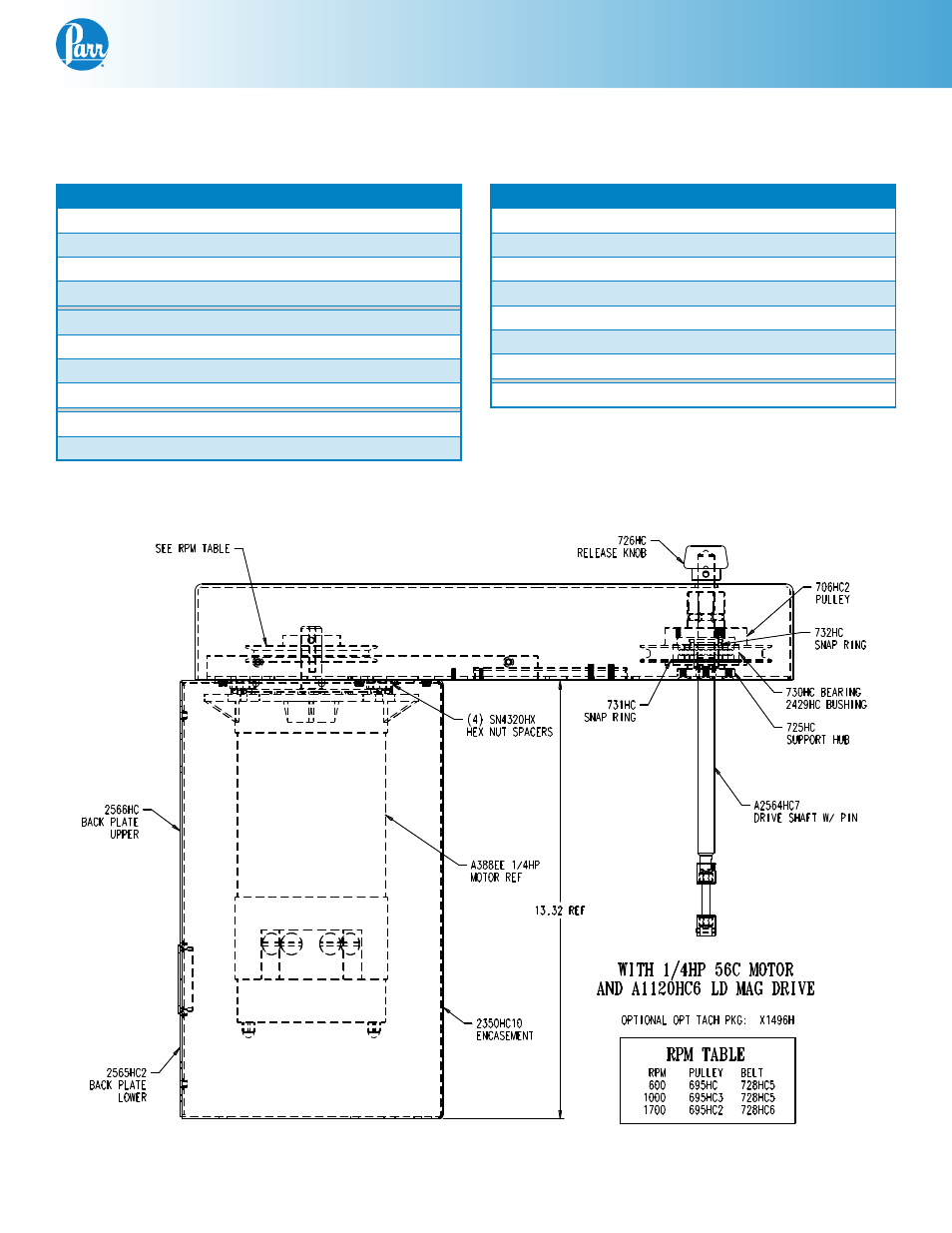

Overarm Assembly for 4575A/4576A
Fixed Head Style Mounting, 1/4 hp Motor
1/4 hp Motor and Overarm Assembly
Part No. Description Code
A388EES Motor, 1/4hp, 90VDC
A388EEQ Motor, 1/4hp, 90VDC, XP
A388EET Motor, 1/4hp, 180VDC
A388EER Motor, 1/4hp, 180VDC, XP
695HC5 Pulley, 600 rpm
695HC2 Pulley, 1700 rpm
728HC5 Belt for 600 rpm pulley
728HC6 Belt for 1700 rpm pulley
A2564HC7 Upper Drive Shaft, 9.56" LD
A2564HC8 Upper Drive Shaft, 7.66" FMD
Driven Pulley for 1/4 hp Motor and Overarm Assembly
Part No. Description
A2519HC Driven pulley assembly consists of:
706HC2 Pulley
725HC Support hub
732HC Snap ring
730HC Ball bearing
731HC Snap ring internal, 2”
2429HC PTFE bushing
726HC Release knob
