Reaction Vessel Parts List
Consult the itemized list for your reactor, provided
along with this manual. For purpose of reactor iden-
tification, the following abbreviation codes are used:
RV - Removable Vessel FMD- Footless Mag Drive
FG - Flat Gasket Seal FH - Fixed Head
SS - T316 Stainless Steel LD - Light Duty Stirrer
GE - Gas Entrainment BDV- Bottom Drain Valve
THERMOWELL
265HC9
HEAD
2965HC2
1133HC BUSHING
2996HC COLLAR
COOLING LOOP
1459HC4
2141HC53
SHAFT
(2) A2148HC
IMPELLERS
WITH SCREWS
2965HC HEAD
(2) 1360HC FERRULE
527HC ORIFICE RING
(2) 1359HC2 NUT, LONG HP/HT
366HC BUSHING
1446HC ADAPTER
49HC2 ORIFICE CONE
526HC/581HC RUPTURE DISC
366VB HEX COUPLE
288VBAD MALE CONNECTOR
A472E3 THERMOCOUPLE
457HC3KL GASKET
48HC GASKET
(OPPOSITE GAGE ASSEMBLY)
326HC COMPRESSION NUT
WITH BUSHING
433HC4 SAFETY HEAD
WITH NUT
366HC BUSHING
1459HC COOLING LOOP
(2) A176VB VALVES
1461HC INLET TUBE
A3314HC STIRRER BRACKET
1452HC ADAPTER
822HC40 SHAFT
197VBAD MALE TEE
265HC6 THERMOWELL
A888HC2 RUPTURE DISC ASSY
56HC PRESSURE GAGE
1452HC3 APDAPTER
491HCAD NIPPLE
A176VB VALVE
94CA PLUG
326HC COMPRESSION NUT
(2) A92HW MALE CONNECTOR
A837HC3 IMPELLER
WITH SCREW
A837HC IMPELLER
WITH SCREW
* For parts made from alternate materials use the
codes shown below as a suffix to the standard part
number.
CM - Alloy 400 CC - Alloy 20Cb3
CT - Alloy 600 CAD - Titanium Grade 2
CX - Zirconium CAA - Titanium Grade 4
CH - Alloy C-276 CG - Alloy B-2

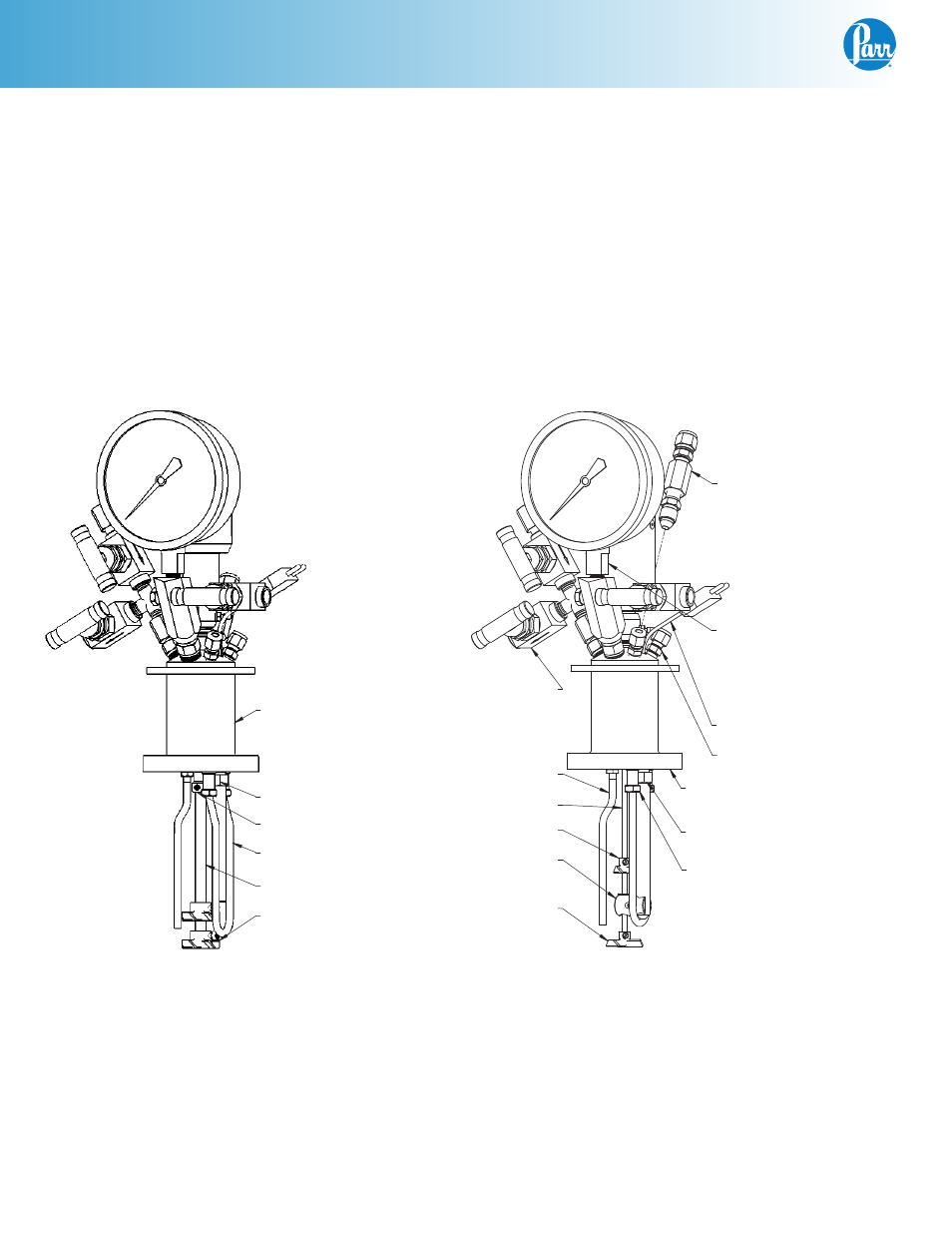

Head Assembly with A1120HC6
Magnetic Stirrer
Head Assembly with A2140HC2
Footless Magnetic Stirrer
