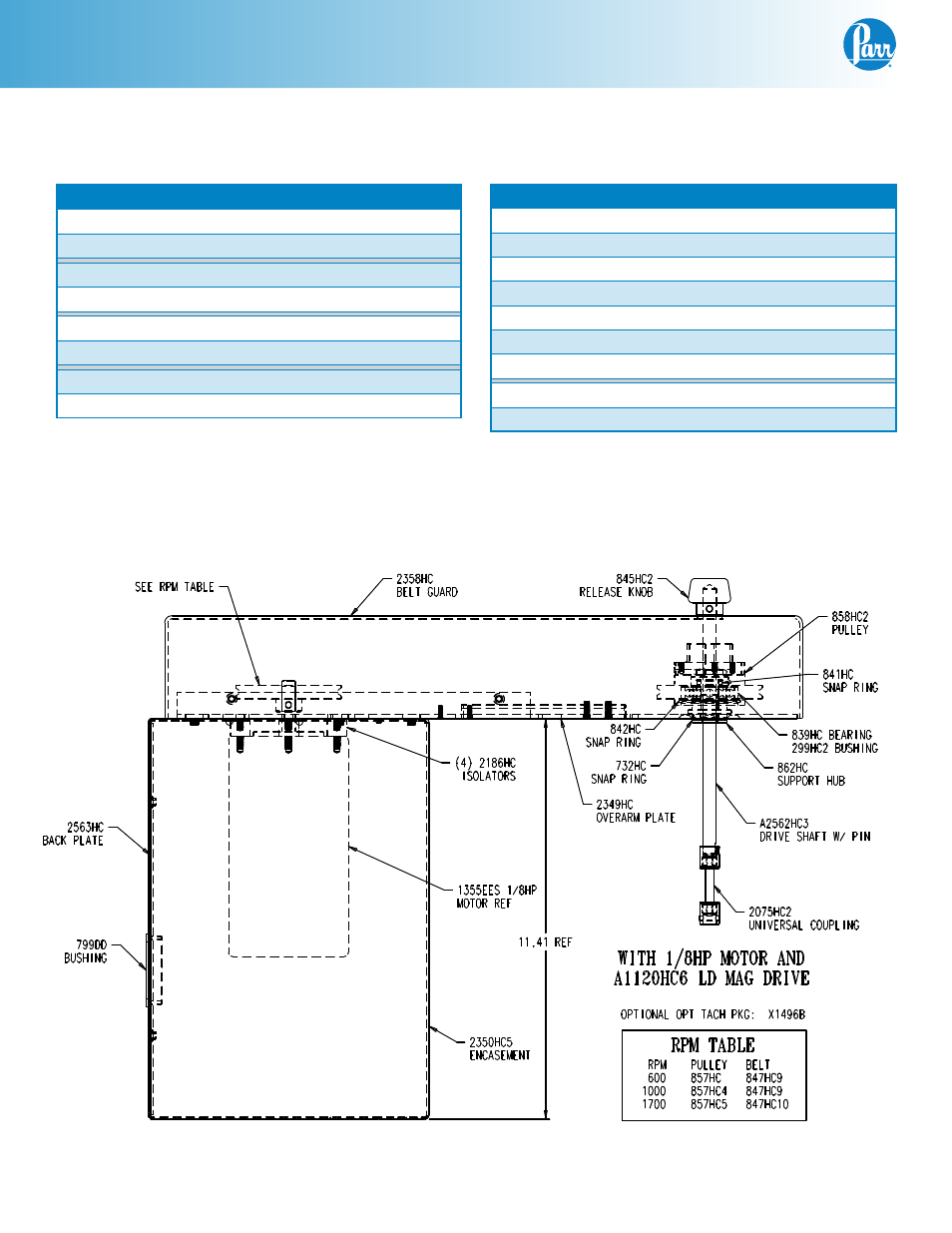

Overarm Assembly for 4575/4576
Removable Style Vessel, 1/8 hp Motor
Overarm Parts List
1/8 hp Motor and Overarm Assembly
Part No. Description Code
1355EES Motor, 1/8 hp
A1554EES Motor, 1/8 hp, EMC
857HC Pulley, 600 rpm
857HC5 Pulley, 1700 rpm
847HC9 Belt for 600 rpm pulley
847HC10 Belt for 1700 rpm pulley
A2562HC3 Upper Drive Shaft, 7.58" LD
A2562HC4 Upper Drive Shaft, 5.68" FMD
Driven Pulley for 1/8 hp Motor and Overarm Assembly
Part No. Description
A2179HC Driven Pulley assembly consists of:
858HC2 Pulley
841HC Snap ring, external
839HC Ball bearing
862HC Support hub
842HC Snap ring, internal
299HC2 PTFE bushing
845HC2 Release knob
732HC Snap ring, extl, 1" dia
