9 EN
Transmitter and Model Setup
Transmitter Setup
Flying wings are controlled by elevons
(moveable surfaces on the wing). Elevons take
the aileron control (move opposite directions),
and elevator control (move up/down
same direction) and mixes them together
electronically through the transmitter.
Make sure both elevons move up and down
(travel) the same amount. This model tracks
well when the left and right elevon travel the
same amount in response to the control stick.
Set trims and sub-trims to zero, center control
surfaces using pliers if needed, then adjust
servo travel so both control surfaces travel the
same amount up and down.
DX4e and DX5e transmitters
Due to the speed and nature of the Ultra
Micro Stryker, we recommend using a DSM2™/
DSMX® transmitter with adjustable dual rates,
exponential and travel adjust. Without these
capabilities, DX4e and DX5e transmitters
will operate this model with some fl ying
limitations.
NOTICE: When using a DSMX non-computer
transmitter (DX4e/DX5e) with multiple
aircraft, always re-bind and set a model’s
failsafe before each fl ight. Please refer to your
transmitter’s manual for failsafe instructions.
Model Setup
• For the fi rst fl ight, fl y the model in low
rate.
The fi rst time you use high rate, fl y at
low to medium speed. High rate, as listed,
is only for EXTREME maneuvering.
• Use a ruler and measure the surface’s
travel at the root of each control surface.

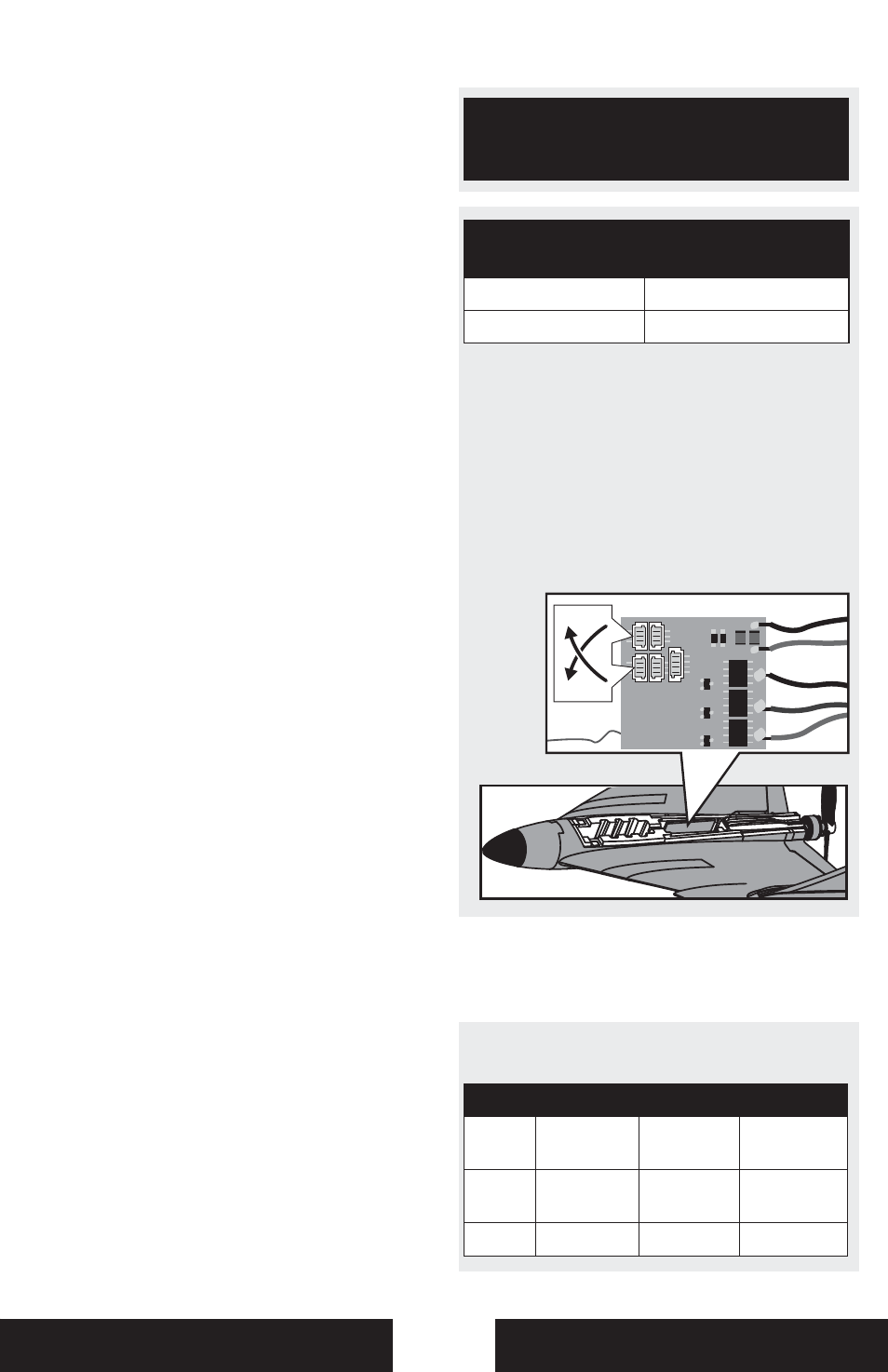

Receiver elevons connection for DX6i
When using the DX6i transmitter, it is
necessary to access the AR6400NBL receiver
and exchange the aileron and elevator
connections where they plug into the
receiver “as shown below” in order to achieve
the correct control direction.
When complete, replace and tape the hatch
and do a control test to confi rm that the
model operates correctly.
For the DX6i, we recommend this setup for
servo channel reversing:
Throttle: Normal Aileron: Reverse
Elevator: Normal Rudder: Normal
Recommended Computerized Transmitter Dual
Rates and Expo
High Rate Low Rate Expo
Elevator 10–12mm
up/down
5mm
up/down
High–50%
Low–20%
Aileron 10–12mm
up/down
6mm
up/down
High–40%
Low–30%
Rudder Max Travel Max Travel 5%
We recommend setting all channels at Normal
in servo reversing when using DX7, DX8,
JR® 9303/9503, 11X and 12X transmitters.
