Motor Service
EN
F E
Assembly
1. Assemble model by following
instructions above in reverse.
2. Make sure propeller size numbers
(3.75 x 3) face the motor (see illustration).
3. Use a small amount of clear tape to
hold the motor wires on the fuselage.
Make sure the wires are securely in place
when the rear hatch is installed on the
fuselage.
B
C
D
CAUTION: Always keep hands away from
the propeller, ESC and motor while the fl ight
battery is connected. Failure to do so could
result in personal injury.

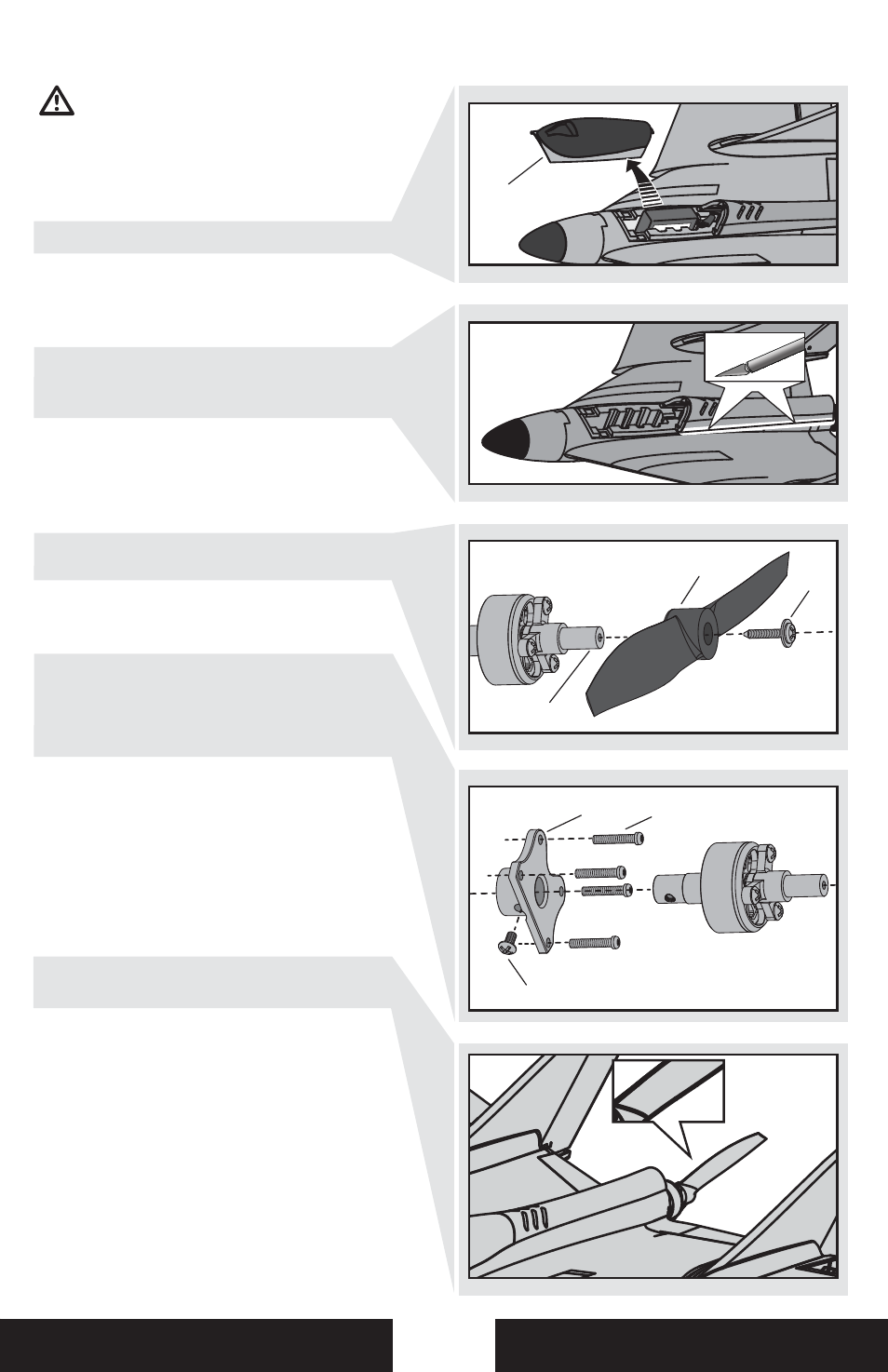

Diassembly
1. Remove front canopy (A) from the fuselage.
2. Disconnect battery from ESC.
3. Remove battery from hook and loop strips
in
fuselage.
4. Cut tape on one side of fuselage for the
rear hatch. Move the rear hatch, using
the remaining tape as a hinge.
5. Disconnect motor connector from ESC/
receiver
connector.
6. Remove screw (B) and propeller (C) from
motor shaft (D).
7. Remove 4 screws (F) from motor
mount
(E) and fi rewall of fuselage.
8. Remove the screw (G) and motor from
the motor mount.
A
G
3.75 x 3
3.75 x 3
