16
ParkZone 4-Channel Radio System
Your ParkZone ® Typhoon ™ 3D comes with a fully propor-
tional 4-channel radio system. Your Typhoon 3D also
comes with industry standard 3-wire servos making the
radio system usable in other small electric aircraft if you
so choose.
NOTE: The servo reversing features of this radio system will
allow you (if you so choose) to be used in another park flyer
application. The servo reversing switches on the Tx should
all be set at the top (normal) for the setup with this airplane.
If any of the switches are set at the bottom (reverse),
the function will be reversed and could put your Typhoon 3D
in jeopardy.
THR ELE AIL RUD T/V

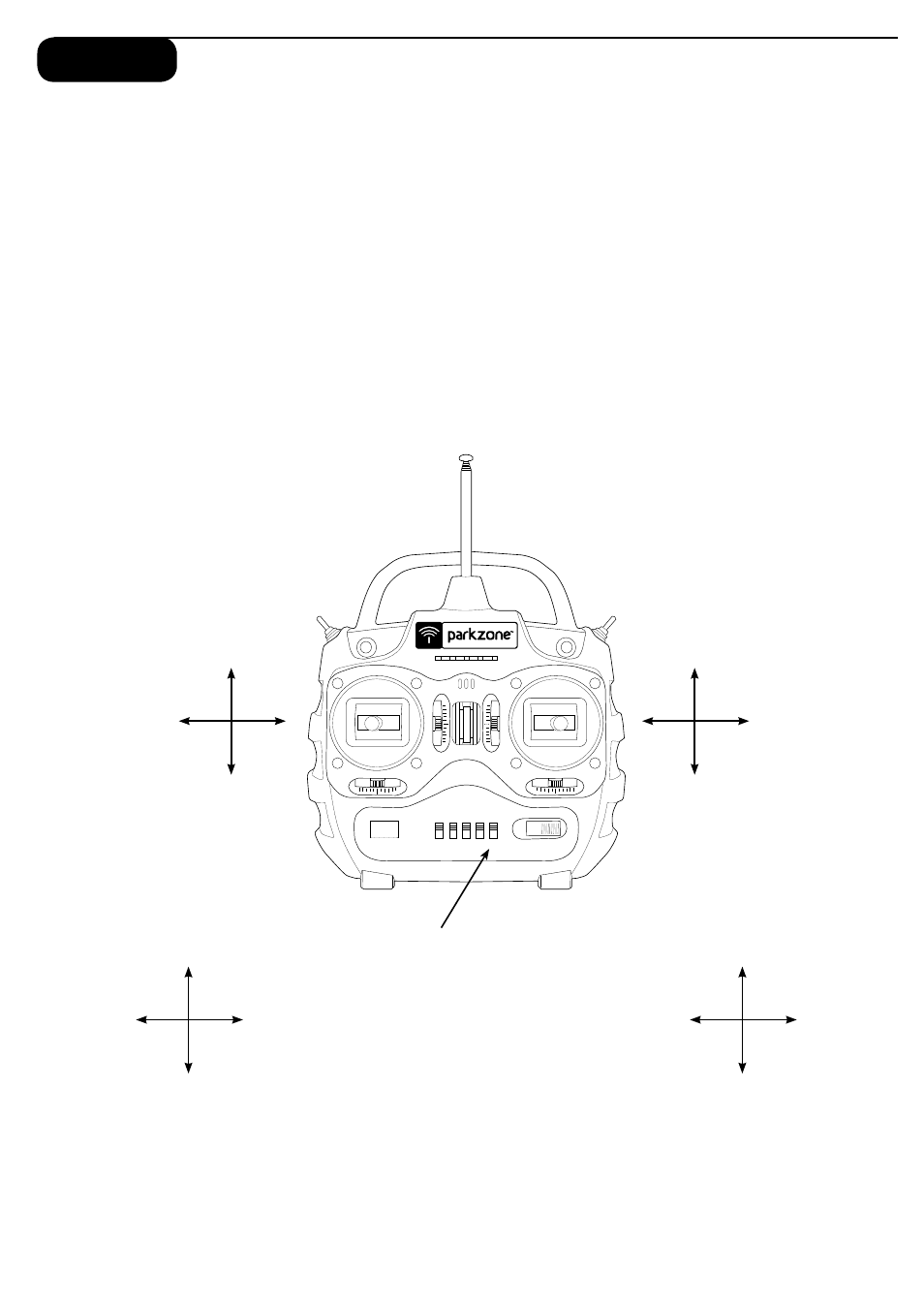

Transmitter Features:
• Fully proportional 4-channel FM radio system with full
control of throttle, elevator, aileron, and rudder
• Dual rates switch (Hi and Low Rates) (When in
Typhoon 3D Mode)
• Proportional trim adjustment
• LED battery voltage indicators
• Neck strap holder
• Charge jack for use with rechargeable Tx batteries
• Servo reversing
• Comfortable ergonomic case design
The stock setup for all of the servo reversing switches on
Tx are at the top (normal).
Elevator
Profondeur
Höhenruder
Profondità
Acelerador
Throttle
Gaz
Gas
Motore
Acelerador
Rudder
Direction
Seitenruder
Direzionale
Timón
T/V Switch:
T= Conventional Tail
V= V-Tail (Mixes Ailerons and Elevator)
Inter T/V
T = Empennage conventionnel
V = Empennage en “V” ( mixage ailerons et profondeur)
T/V Schalter
T= normales Leitwerk
V= V-Leitwerk
Interruttore T/V
T= coda convenzionale
V= coda a V (miscela gli alettoni con il profondità)
Interruptor T/V:
T= Cola convencional
V= Cola en V (combina alerones y timón de altura)
Step 8
Aileron
Aileron
Querruder
Alettoni
Alerón
MODE 2 MODE 2
Elevator
Profondeur
Höhenruder
Profondità
Acelerador
Throttle
Gaz
Gas
Motore
Acelerador
Rudder
Direction
Seitenruder
Direzionale
Timón
Aileron
Aileron
Querruder
Alettoni
Alerón
MODE 1 MODE 1
