- 1 -
QSD004 User’s Manual
4 Channel BNC Camera Input
1 Channel BNC Video Output
Video Source Option: NTSC / PAL
Motion Detection with Sensitivity and Area Settings
Time Schedule Recording / Motion Triggered Recording
One ATA-100 Hard Disk Interface
USB 2.0 Back up to computer
Remote Control

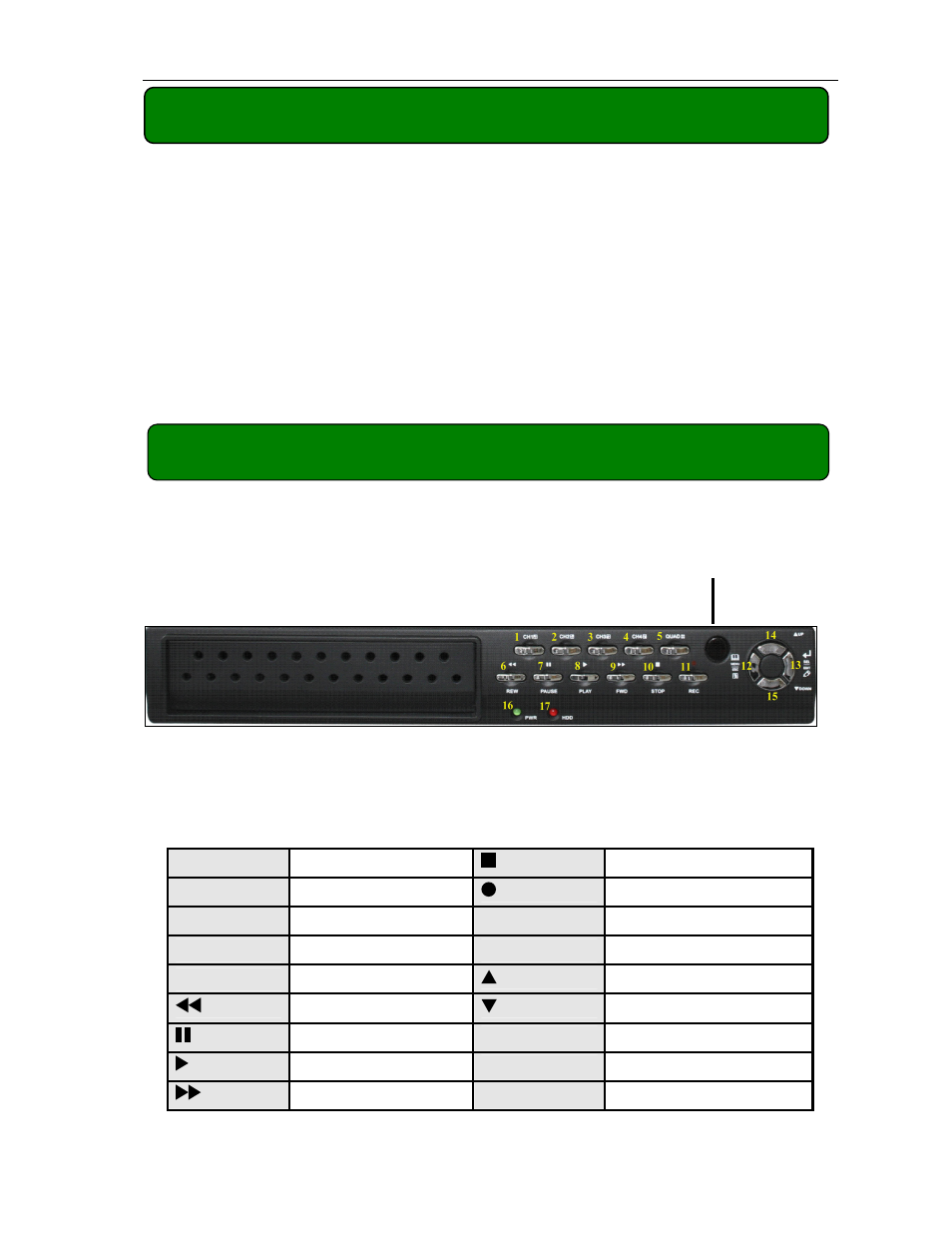

2.1 Front Panel
CH1 #1 Channel #1 Stop #10 Stop recording / playing
back
CH2 #2 Channel #2 REC #11 Record
CH3 #3 Channel #3 Menu/Esc #12 Enter / exit setup menu
CH4 #4 Channel #4 SEL/Edit #13 Select / modify item
Quad #5 Quad View Up #14 Move up / left cursor
REW #6 Rewind Down #15 Move down / right cursor
Pause #7 Pause PWR #16 Power indicator LED
Play #8 Play recorded video HDD #17 Hard disk indicator LED
FWD #9 Forward
Chapter 1: DVR Features
Chapter 2: Layout
IR Receiver
