4. Enter-Key: It is pressed with the Down-key to turn on the UPS, with the Up-key

to turn off the UPS. Beside, it is pressed to confirm and enter the item selected.

5. Fault LED (red): To indicate the UPS is in fault condition because of inverter

shutdown or over-temperature.

6. Warning LED (yellow): To indicate the UPS is in the status of overload, bypass

and battery back-up.

7. Normal LED (green): To indicate the UPS is operating normally.

8. ON/TEST/MUTE key: It should be pressed with the control key simultaneously

to switch on UPS, do UPS auto-test in normal AC mode and turn off the buzzer

in battery operation.
















9

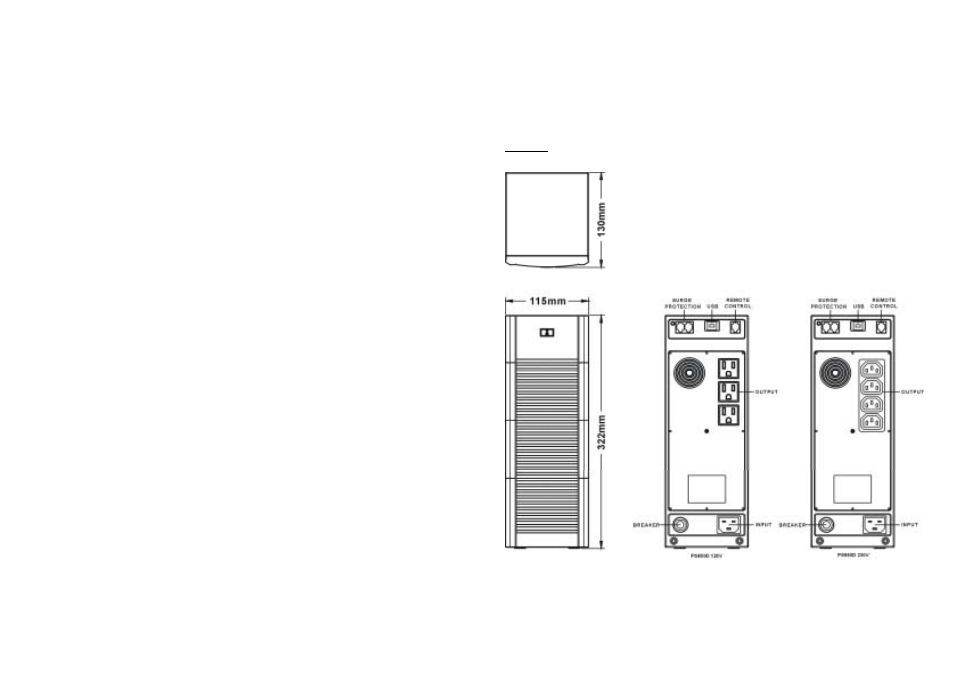

4. OUTLINE DESCRIPTION

4.1 Case Outline

PS650D
