5. CABLE CONNECTION

5.1 Inspection

1. The system may be installed and wired only by qualified electricians in

accordance with applicable safety regulations.

2. When installing the electrical wiring, please note the nominal amperage of your

incoming feeder.

3. Inspect the packaging carton and its contents for damage. Please inform the

transport agency immediately should you find signs of damage. Please keep

the packaging in a safe place for future use.

4. Please ensure that the incoming feeder is isolated and secured to prevent it

from being switched back on again.

5.2 Connection

1. UPS Input Connection

If the UPS is connected via the power cord, please use a proper socket with

protection against electric current and pay attention to the capacity of the

socket.

2. UPS Output Connection

The output of this model is with socket-types only (NEMA or IEC). Simply plug

the load power cord to the output sockets to complete connection.

23

6. OPERATION

6.1 Check Prior to Start Up

1. Ensure the UPS is in a suitable positioning.

2. Check input cord is secured.

3. Make sure the load is disconnected or in the “OFF” position.

4. Check if input voltage meets the UPS rating required.

6.2 Operation Procedure

Please follow the instructions below for the UPS operation.

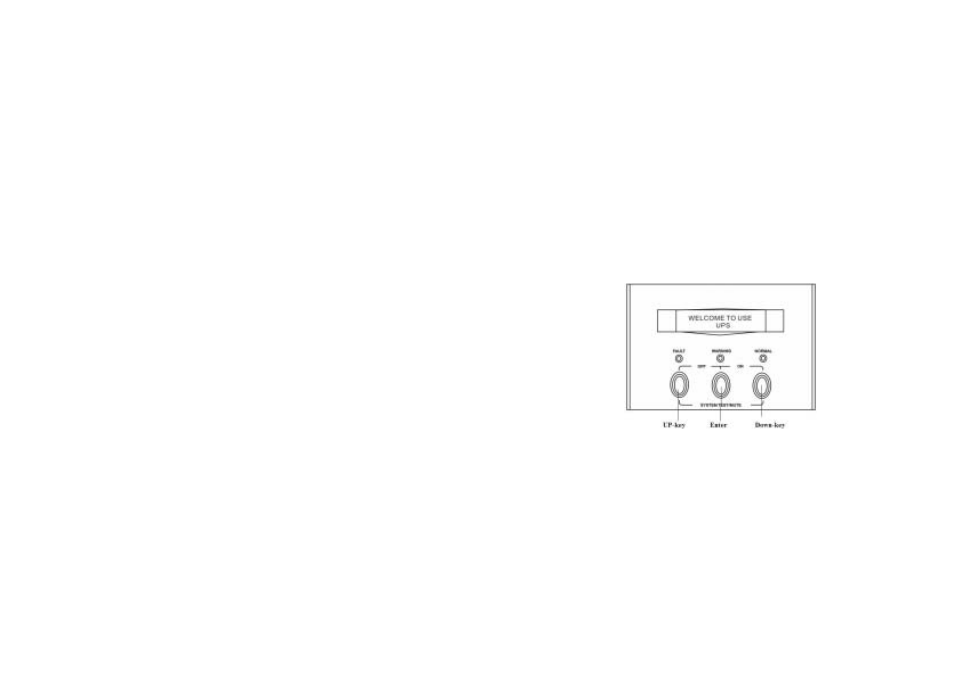

1. Once the AC source is connected, the LCD Display shall light up

immediately to display first the main menu of greeting context and the

Normal LED is blinking to indicate ready to switch on the inverter.
