OPTI-UPS PS7500DL User Manual

Page 14

background image

26

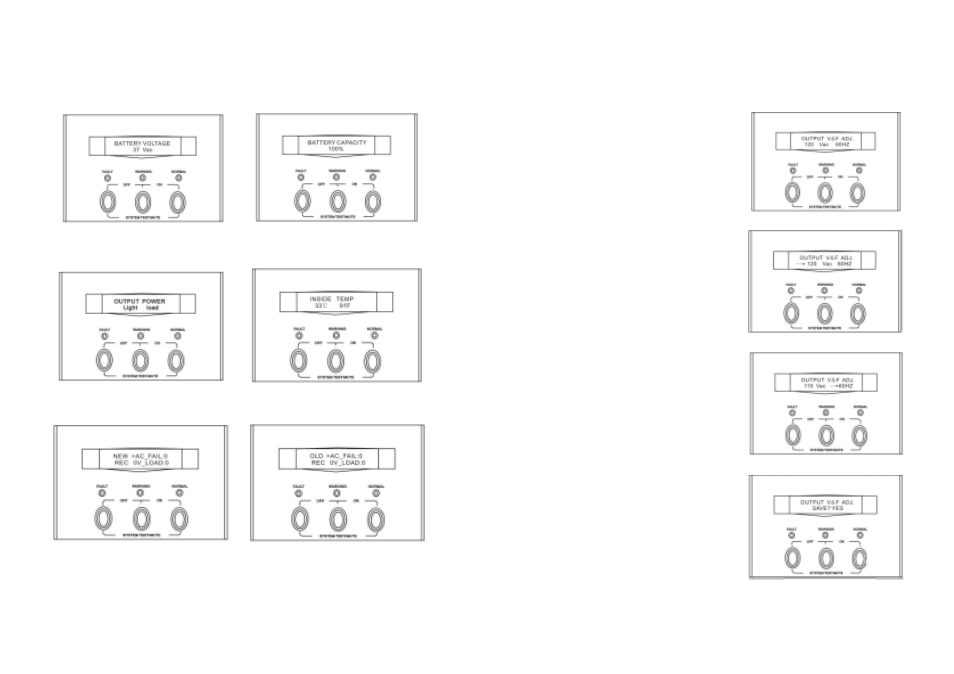

5 Battery Status Menu

6

V Output Power Menu

7

Temperature Menu

8

History Record Menu



27

9.Output Voltage/Frequency Set Menu

A. In this screen, press on/off Control

Key to enter the following steps for
output voltage or frequency setting.

B.

The cursor (→) will pop up to

indicate the output voltage or
frequency newly selected.

C.

Use Up or Down-key to adjust the

output voltage (220V, 230V and
240V are available for 220V system;
100V, 110V, 115V and 120V are
available for 120V system) or output
frequency(50Hz and 60Hz are
available only)

D.

Once the correct voltage or

frequency is selected, press on/off

Control Key again to save the data.
