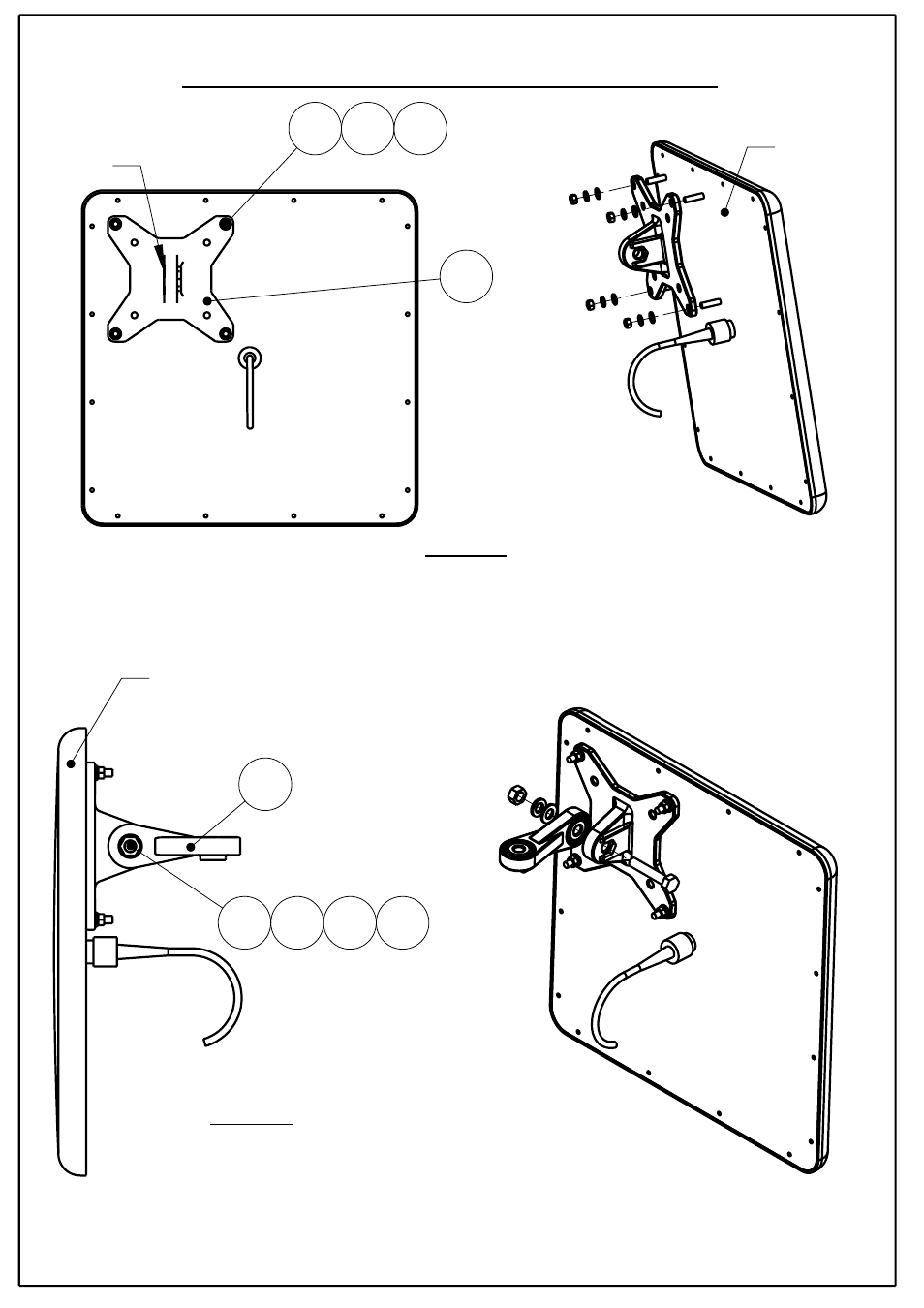

INSTALLATION INSTRUCTIONS TO WALL
ANTENNA
Knurled
surface
Attach item 1 to the back of the antenna
using items 2 ,3, 4 as shown.
Use tightening torque of 5.7 N/m .
STEP 1
2
3
4
1
x4
x4 x4
Attach item 5 to the base
(mate knurled surfaces)
using items 6, 7, 8, 9 as shown.
Use tightening torque of 24 N/m .
STEP 2
ANTENNA
6
7
8
9
5
