For pole 1"- 1 3/4"
10
For pole 1 3/4"-3"
ANTENNA

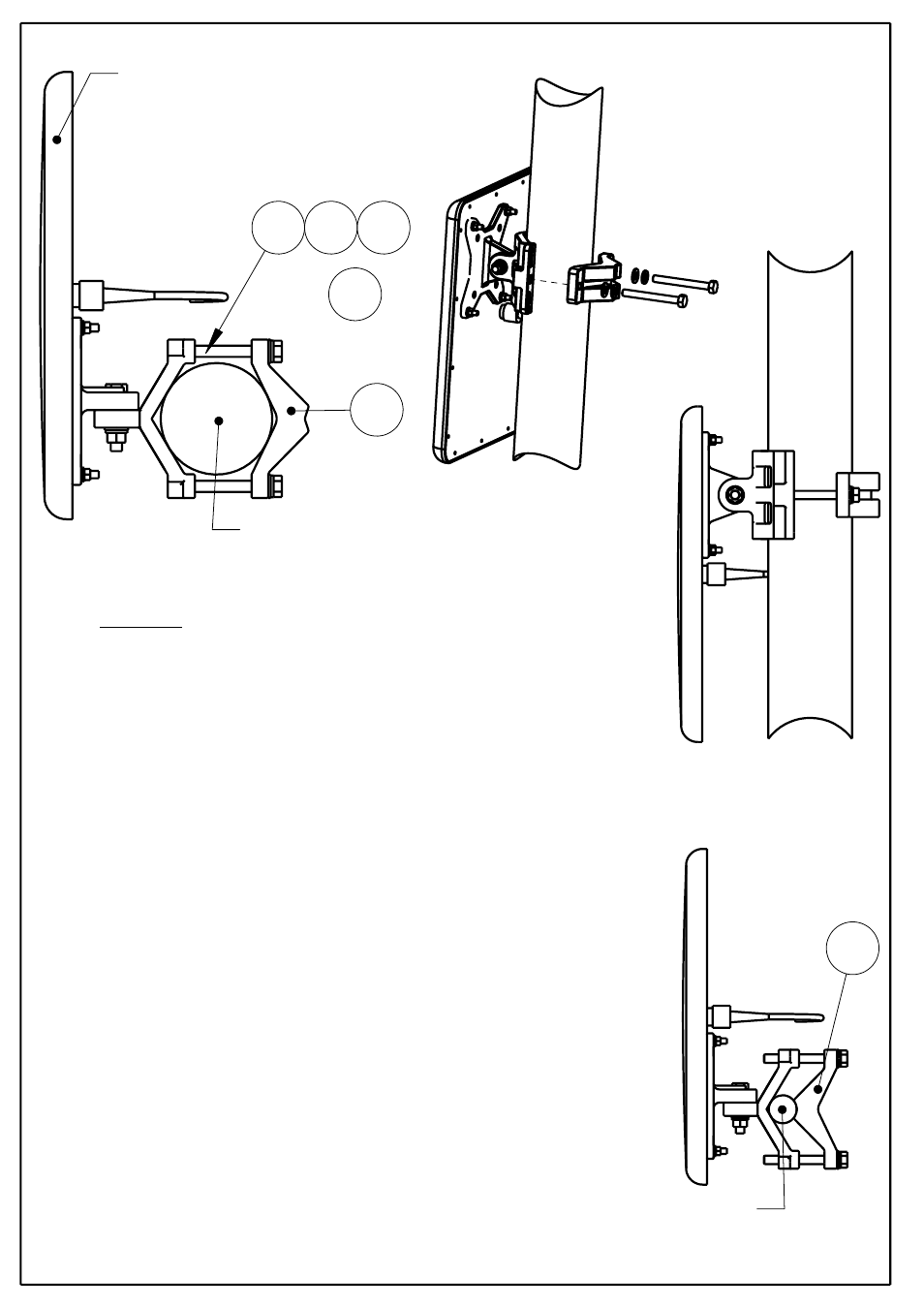

Tighten the antenna to the pole , using item 10,
screws, and washers items 11 ,7 ,8 as shown.
Use tightening torque of 14 N/m .
STEP 3
11 7 8
10
x2
12
x2 x2
or
Installation Kit
ITEM DESCRIPTION QTY
1 Base ant. 1
2 Washer flat M5 4
3 Washer spring M5 4
4 Nut M5 4
5 Clamp 1
6 Screw hex head M8x40 1
7 Washer flat M8 3
8 Washer spring M8 3
9 Nut M8 1
10 Clamp 1
11 Screw hex head M8x40
(for 1 3/4”-2 ¼” dia pole) 2
12 Screw hex head M8x70
(for 2 ¼”-3” dia pole) 2
