42 LDplus Control System
Operating Manual Freeze Dryer ALPHA 1-4 LDplus / ALPHA 2-4 LDplus

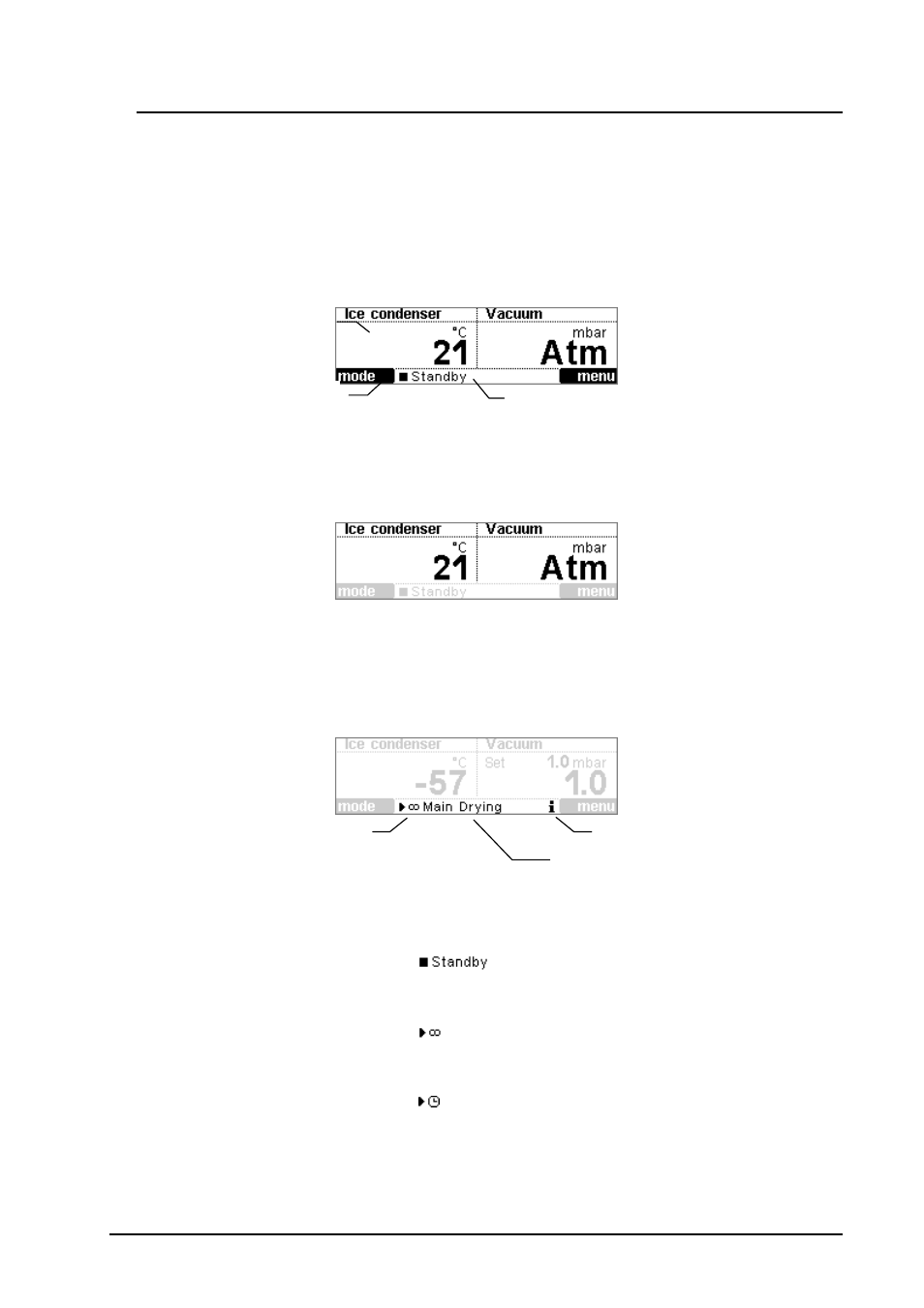

5.4. Visual components of the LDplus control
system
The LC display is divided into the three following areas:
1. Main window
2. Status bar
3. Softkey function
5.4.1. Main window
The main window shows set values and actual values, menus and
process-relevant information.
5.4.2. Status bar
The status bar shows the current operating mode, the active phase
and other relevant information. The status bar is visible at all times.
Structure of the status bar:
5.4.2.1.
Operating mode
The freeze-dryer is in the standby mode. All aggregates
are switched off.
The freeze-dryer is in the run mode. The timer is
deactivated.
The freeze-dryer is in the run mode. The timer is
activated.
Status bar
Softkey
function
Main window
Operating mode
Active phase
Info icon
