36 Installation and Commissioning of the Unit
Operating Manual Freeze Dryer ALPHA 1-4 LDplus / ALPHA 2-4 LDplus

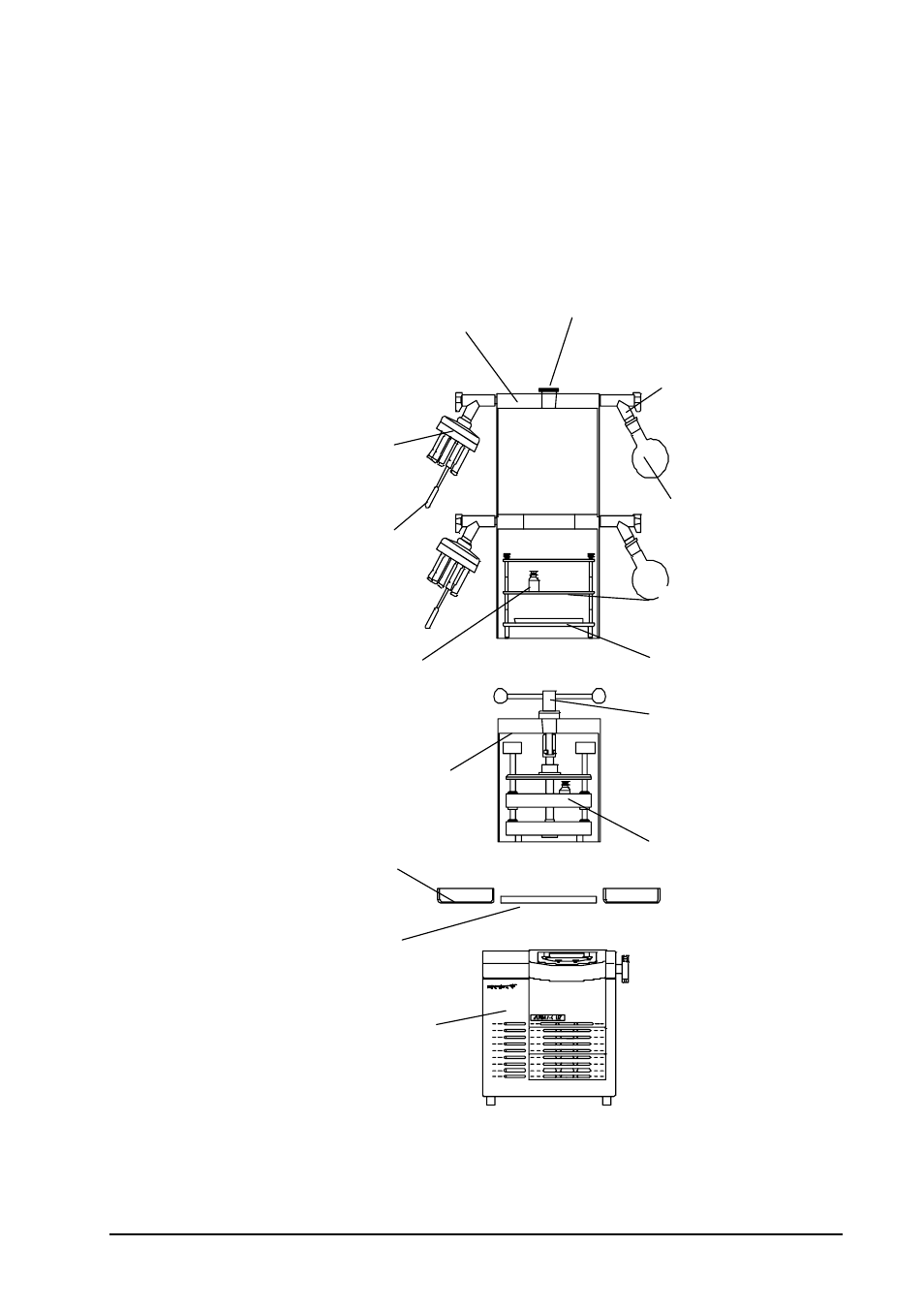

4.8.3. Diagram of the accessories
The other accessories (e.g. drying chamber, shelves, and
connections for round bottom flasks) will be completed according to
the scope of supply.
,
Ground-in stopper
Rubber valve
Drying chamber Ø300
with 12 connections
Distributor
Drying vessel
e.g. injection bottle
3 or 5 shelves Ø265,
unheated
Product dish
Drying vessel
e.g. ampoule
Drying chamber
Ø300
Drip tray
Base plate
Drying vessel
e.g. injection bottle
Dying vessel e.g.
round bottom flask
Sealing device
with 1shelf Ø250 heated,
can be extended to a
max. or 2 or 4 shelves
according to type of device
ALPHA 1-4 LD
plus
ALPHA 2-4 LD
plus
