Livorsi DTS Controls- Three/Four Engine Installation APRIL 2012 Page 8 of 9
Control Quadrant Operation

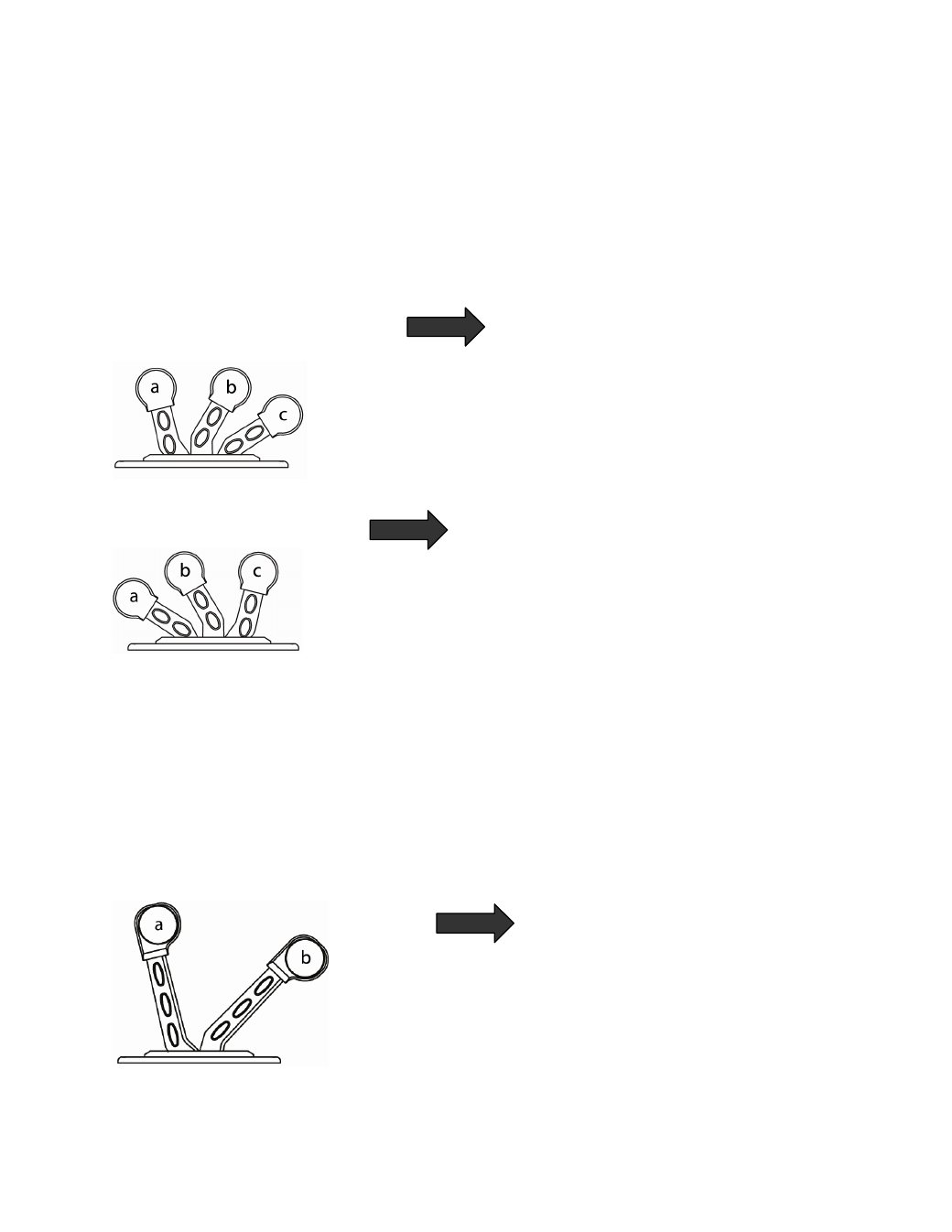

Shift Lever
Shift into reverse by moving the shift lever to its aft position.
Shift into neutral by moving the shift lever into its center position.
Shift into forward by moving the shift lever into its forward position.
Forward Cant Models
AFT Cant Models
Throttle Lever
Increase the RPM by moving the throttle lever forward. Achieve wide open
throttle (WOT) by placing the throttle lever in its full forward position.
Decrease RPM by moving the throttle lever back. Achieve minimum RPM (idle)
by placing the throttle lever in its full aft position.
Forward Cant Models
a- reverse
b- netural
c- forward
a- reverse
b- neutral
c- forward
a- minimum RPM (idle)
b- maximum RPM (WOT)
