Livorsi DTS Controls- Three/Four Engine Installation APRIL 2012 Page 5 of 9
3. Use a #22 drill bit to drill the required holes. Drill perpendicular to the console
surface.
4. Saw between the drilled holes along the cut lines. Cut perpendicular to the
console surface.
5. Set the control into the opening and check for clearance and fit. Remove the
control from the console.

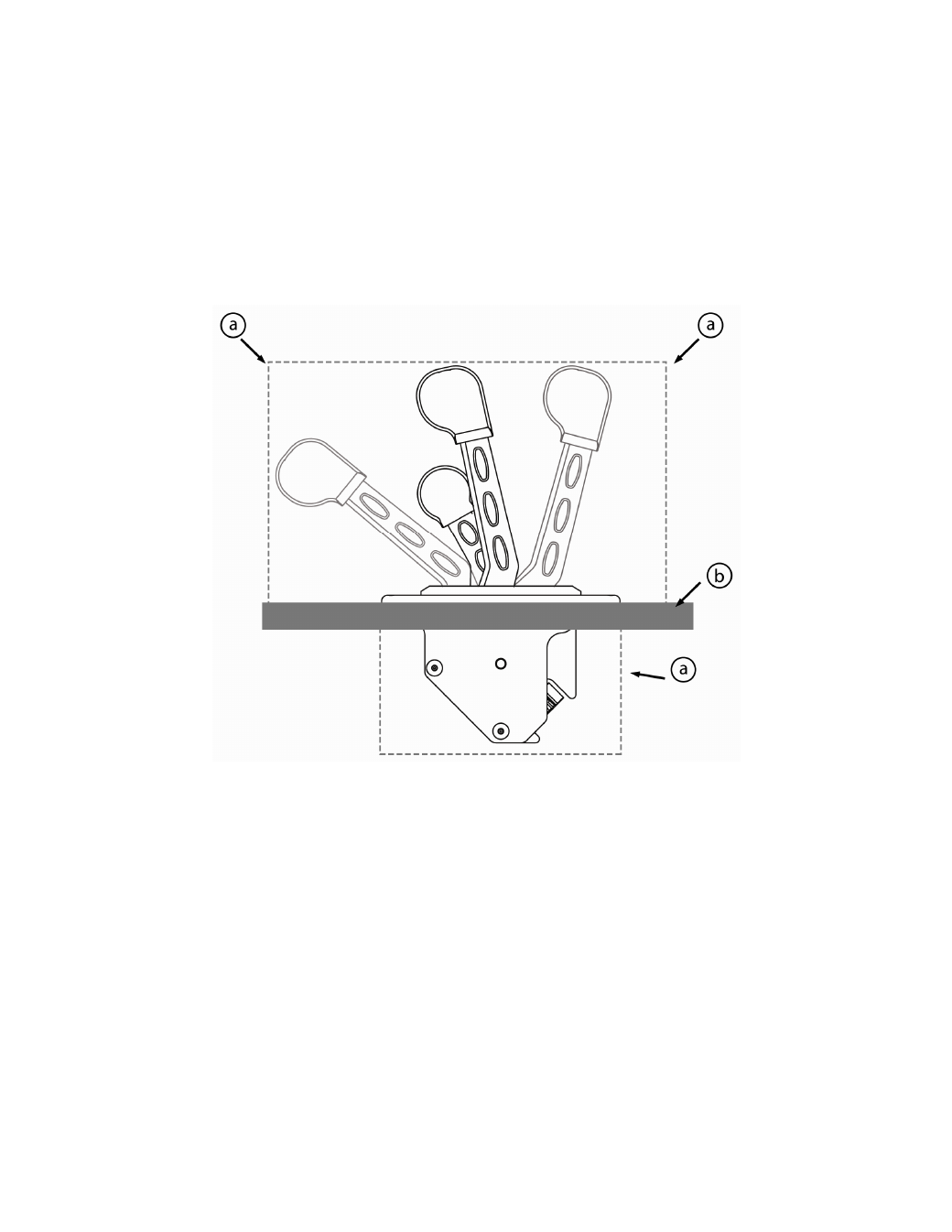

a- clearance areas required (approximate)
b- console
Check for Clearance
