Livorsi DTS Controls- Three/Four Engine Installation
APRIL 2012
Page 6 of 9
Installing the Control to the Console

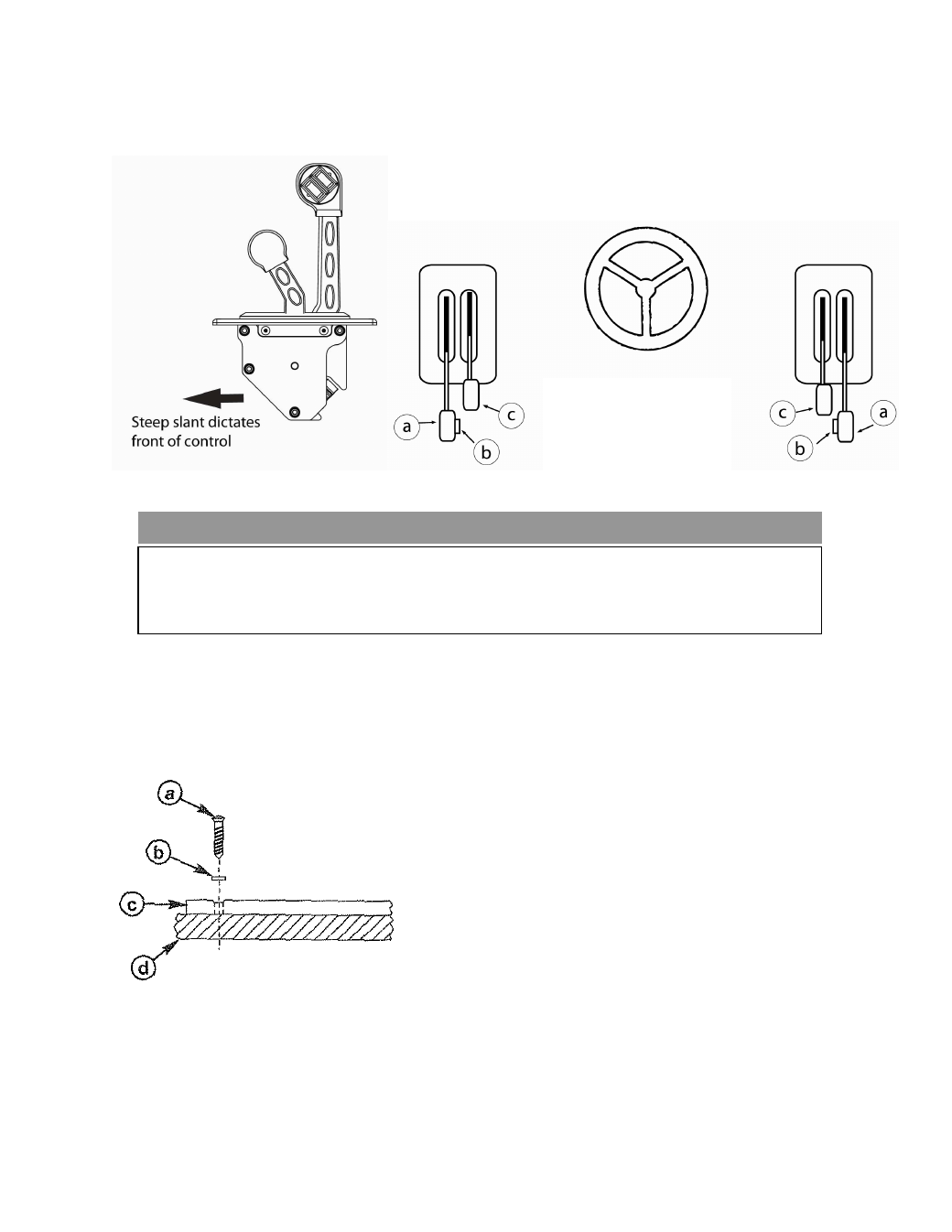

1. Secure the control to the console using the 4x #10 screws and nylon washers.
a- throttle lever
b- trim switch
c- shift lever
Avoid possible corrosion damage. Always install the nylon washer between each screw
and the control plate. Improper installation may result in chipped paint, triggering
corrosion.
CAUTION
a- 4 x #10 screw (4)
b- Nylon washer (4)
c- Control quadrant assembly
d- Console
For an 8 handle control
o
6 x #10 screws
o
Nylon washer (6)
