Livorsi DTS Controls- Single/Dual Engine Installation APRIL 2012 Page 4 of 12
Livorsi DTS Control Dimension Chart
Number of Handles “A” DIM “B” DIM
2 handle 3- 3/8 in. 2- 7/8 in.
4 handle 5- 11/16 in. 5- 3/16 in.
Installing the Control
Control Configuration
Important: Canting refers to the direction of bend in handle. Install the Livorsi DTS
Controls in the orientation specified for that model (aft-cant port, forward-cant port,
aft-cant starboard, or forward-cant starboard)
Cutting the Control Console Opening
1. Remove the Console Cutout page, located at the end of this document.
Important: Hole patterns between the DTS flat base and DTS contour base
differ.
2. Transfer all drill holes and cut lines to the console in a suitable location. Refer to
Dimensions and Clearances for help determining the installation location.
Important: Ensure that the area below the console is clear of any wiring or items that
may hinder or be damaged by drilling/cutting.

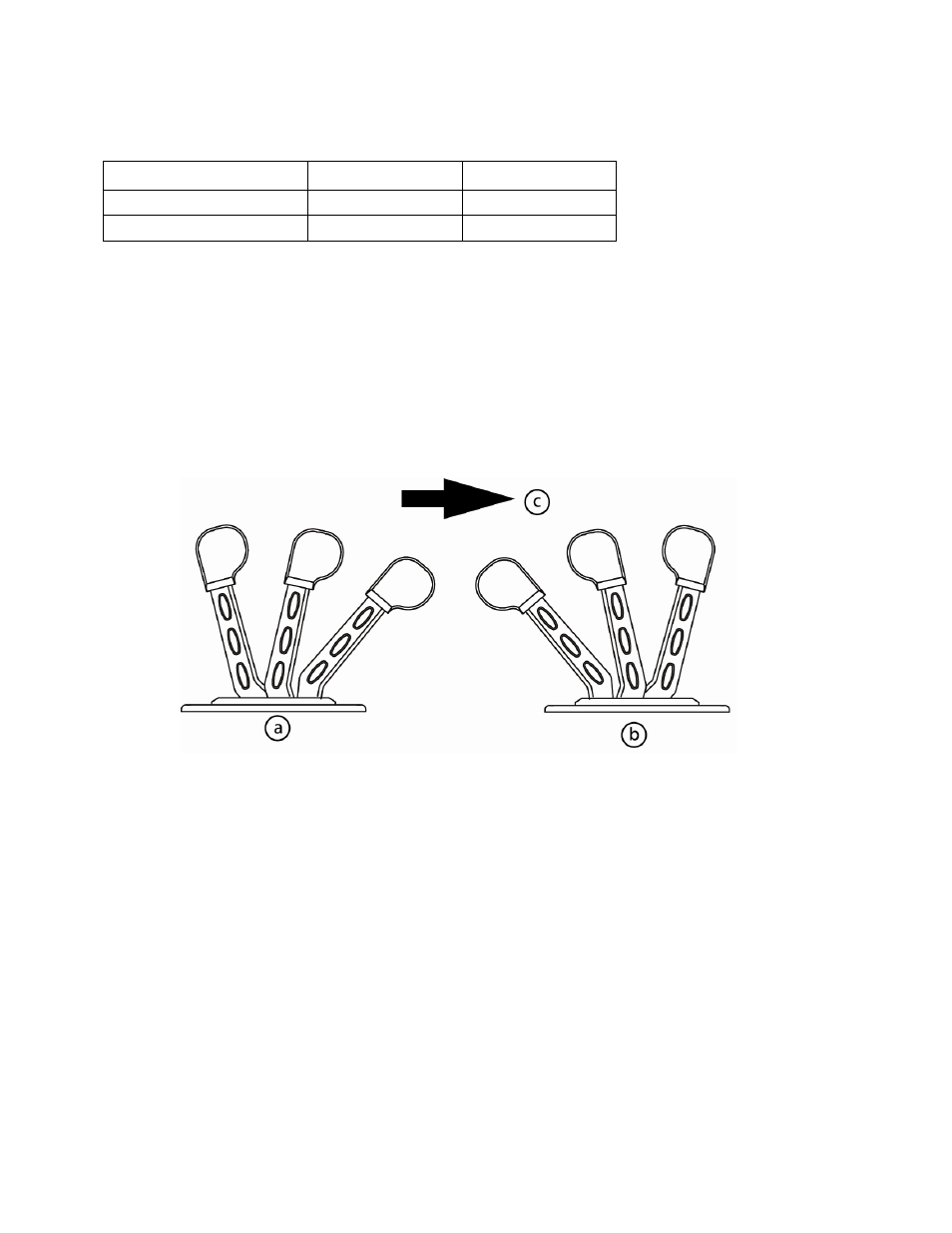

a- Forward cant models
b- Aft cant models
c- Arrow pointing to the ship’s bow
