Livorsi DTS Controls- Single/Dual Engine Installation APRIL 2012 Page 2 of 12
Dimensions and Clearances
Location Requirements
Understand the following criteria when selecting a Livorsi DTS Control location:
Mount the control to provide the boat operator with a comfortable and controlling
position during operation and allow sufficient hand and shift/throttle lever
clearance.
Mount the control to provide enough space for harnesses and wiring beneath the
console panel.
If equipped with a trim switch, locate the switch on the side of the throttle lever
closest to the steering wheel.

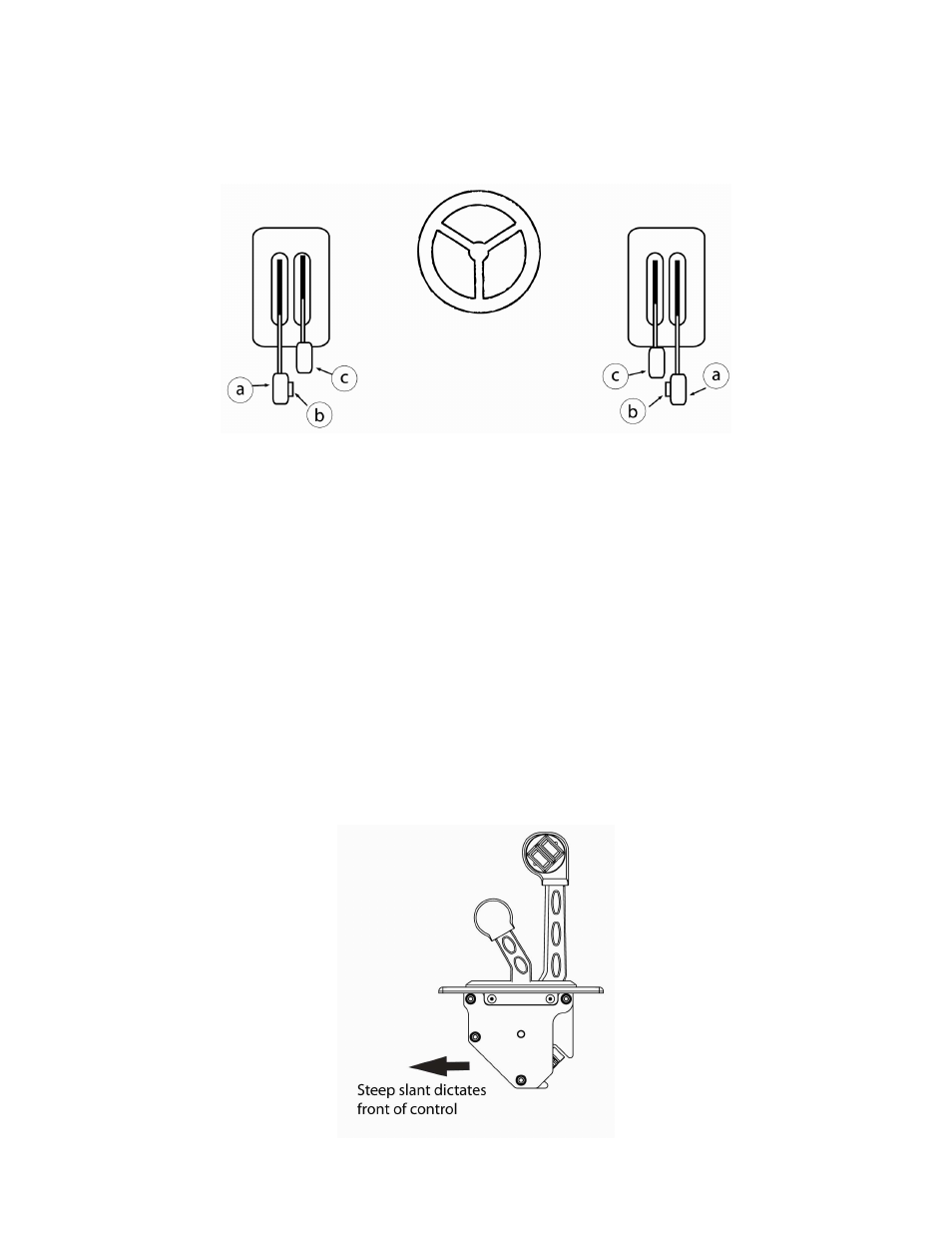

a- throttle lever
b- trim switch c- shift lever
