Livorsi DTS Controls- Single/Dual Engine Installation APRIL 2012 Page 12 of 12
Aft Cant Models
In-Handle Trim Switch
1. To trim the outboard or drive up/out, press the top area of the trim button.
2. To trim the outboard or drive down/in, press the bottom area of the trim button.
Control Quadrant Maintenance
IMPORTANT: Periodically lubricate the inside slit area of the rubber boots with a good-
quality, rubber-compatible marine lubricant. Use a small amount of lubricant to prevent
adverse movement of the rubber booth within the control housing.

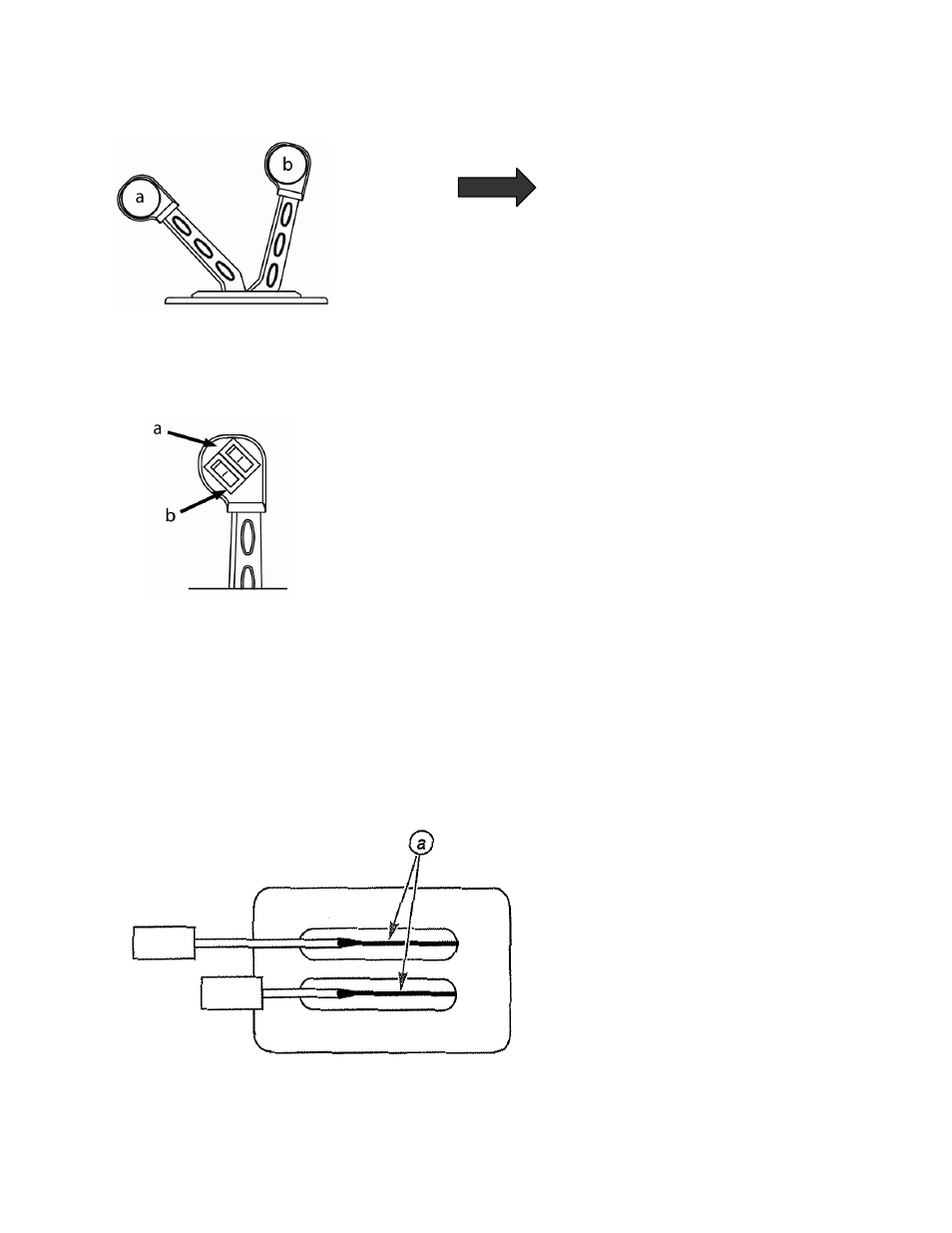

a- minimum RPM (idle)
b- maximum RPM (WOT)
a- trim up/out
b- trim down/in
a- rubber boot slit
