Automatic transmission with linelock – Lingenfelter L460105297 Lingenfelter LNC-003 Dual RPM Launch Controller v2.7 User Manual
Page 11
Page 10 of 17
Secondary
RPM
x1000
x100
Orange = +12V Secondary
RPM Activation
LNC-003
Dual RPM Launch Controller
Momentary Switch MUST be capable of supplying current
draw of Linelock Solenoid. If switch is rated at a lower amperage
than the solenoid, a Relay MUST be used. See Diagram for
Manual Transmission installation for Relay wiring details.
Optional LED, On when
Arming Switch is ON.

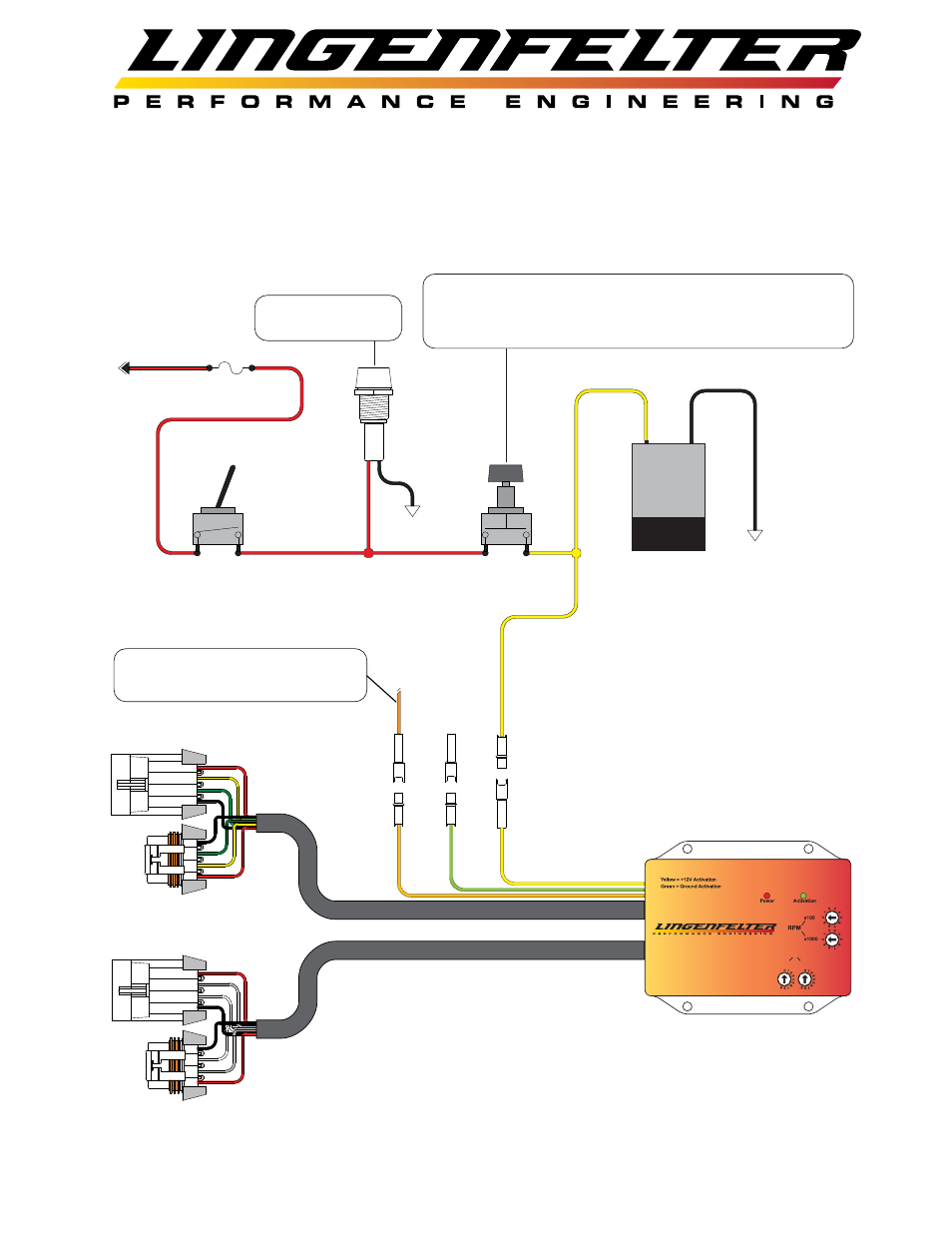

Automatic Transmission with Linelock
Use this configuration to activate Linelock and the 2-step function using a momentary push-button switch.
Once the toggle switch is flipped ON and the momentary switch is pressed, Linelock and the 2-step function will
be activated. When the push button is released, Linelock and the 2-step function will be deactivated.
Secondary RPM Activation, apply a
+12 volt signal to enable Secondary
Launch RPM.
+12V
Toggle Switch
Ground
Momentary
Switch
Ground
Linelock
Solenoid
(Arms 2-Step and Linelock)
Fuse
20 Amp
