Lingenfelter L460065397 Lingenfelter TRG-002 58x Trigger Conversion Module v1.6 User Manual
Page 10
A
B
C
Engine Harness
Cam E40
12129615
Male Pin
12045773-L
Green, 20ga
Black, 20ga
Red, 20ga
+12V
Ground
Cam Signal Out
A
B
C
Engine Harness
Cam E40
12131195
Male Pin
12045773-L
Green, 20ga
Black, 20ga
Red, 20ga
+12V
Ground
Cam Signal Out
All E40 vehicles except GTO & HSV applications
E40 TRG camshaft output adapter harness engine side connection:
E40 GTO & HSV applications
E40 TRG camshaft output adapter harness engine side connection:

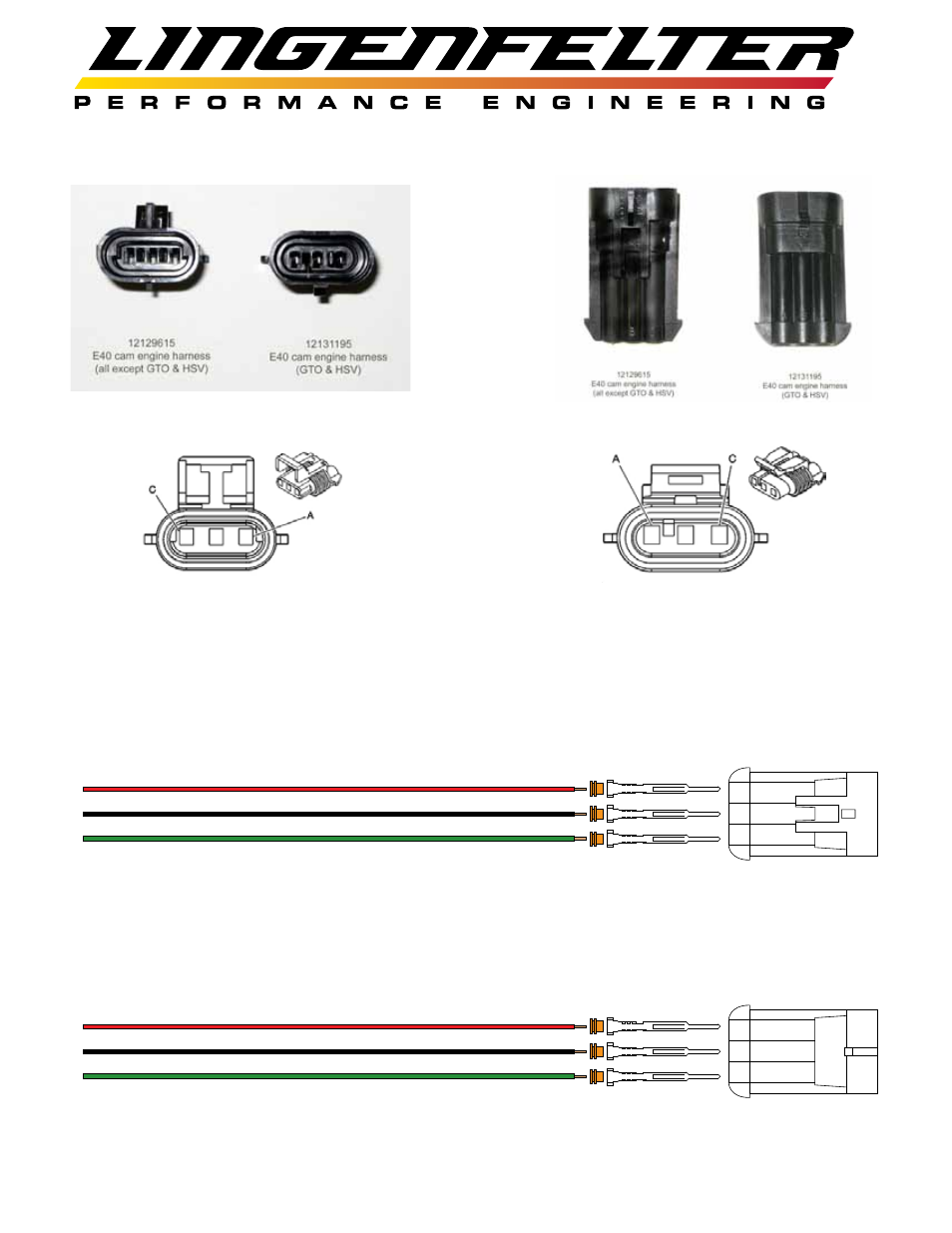

Connector and Wiring Diagrams for E40 Controlled Vehicles Addendum
Labeled connector images;
Page 9 of 15
Vehicle ECM harness side connector views for the camshaft input into the ECM:
All E40 vehicles except GTO
& HSV applications
E40 GTO & HSV applications
