Chapter 3: Getting Started
Product Service 1-800-522-7658 12
Note: When moving the cabinet on the hydraulic lift base stand, ensure that
the hydraulic lines and the electrical cord are clear before installing the
cabinet on the stand or operating the lift system.
Connecting the PuriCare Cabinet to Utility
Service Lines
The service lines (if any) should be connected to the tube fitting(s) on the
outside of the liner wall as shown in Figure 3-3. To install the tubing, follow
these steps:
1. Ensure that the tubing is ¼ inch O.D., soft metal, and that the end has
been deburred completely.
2. Route the tubing from the rear of the cabinet, ensuring that it will line up
with the slot in the back of the side panel.
Note: Make sure that the tube routing will not contact any electrical wires.
DO NOT loop service line tubing within the side panels of the Procedure
Station.
3. Make sure that the nut on the tube fitting is loose, but do not remove it.
Look inside the fitting to make sure the tube ferrule is there.
4. Push the tube into the fitting until it is properly seated. The tube will go
approximately ¾ inch into the fitting.
5. Tighten the tube fitting nut hand tight and then, using a 7/16-inch wrench,
tighten it at least ¾ turn more.
6. Close the service valve in the cabinet and then slowly open the shutoff
valve on the service valve. Test all fittings for leakage. Tighten the tube
nut slightly if needed.

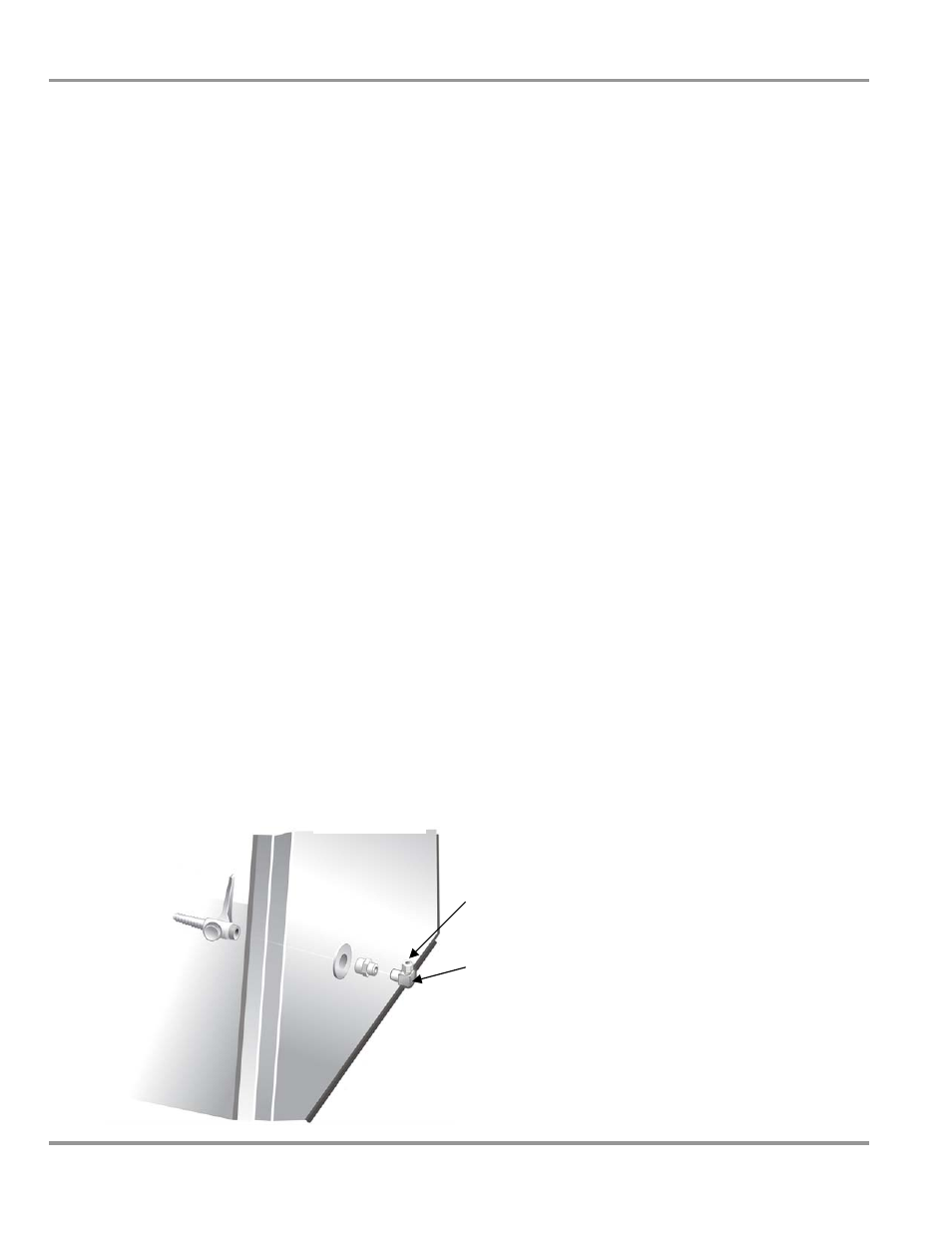

Tube fitting nut
Tube fitting
Figure 3-3
