Chapter 3: Getting Started
Product Service 1-800-522-7658
10
10
Filtered PCR Enclosure Work Surface Installation
1. Level the base cabinet or stand and the work surface. See Figure 3-1.
2. Position the work surface in its intended location and with the front of the
work surface towards you. (Rear mounting holes are located close to the
rear edge.)
3. Secure the work surface to the base cabinet or stand with a structural
adhesive or silicone sealant.
4. Insert the supplied mounting screws in the four holes. Allow a minimum
of 1/8" clearance under the head of the screw for positioning the enclosure.
5. Place the enclosure on the work surface and slide the rear flange and front
air foil flanges under the mounting screw heads.
6. Tighten the four screws to complete the installation.

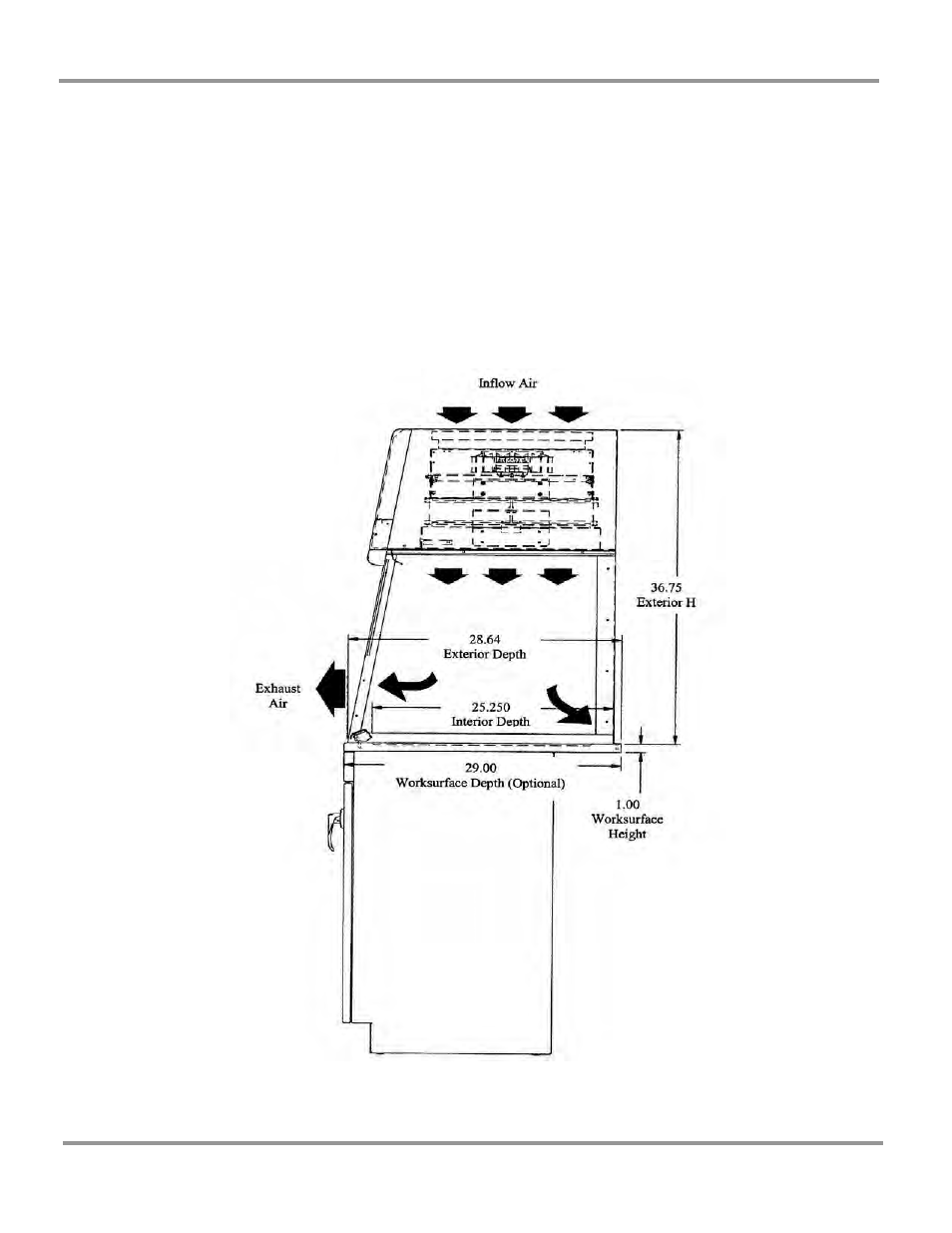

Figure 3-1
Filtered PCR Enclosure Installation
