Chapter 5: Maintaining the System
Product Service 1-800-522-7658
18
Service Operations
Filter Replacement:

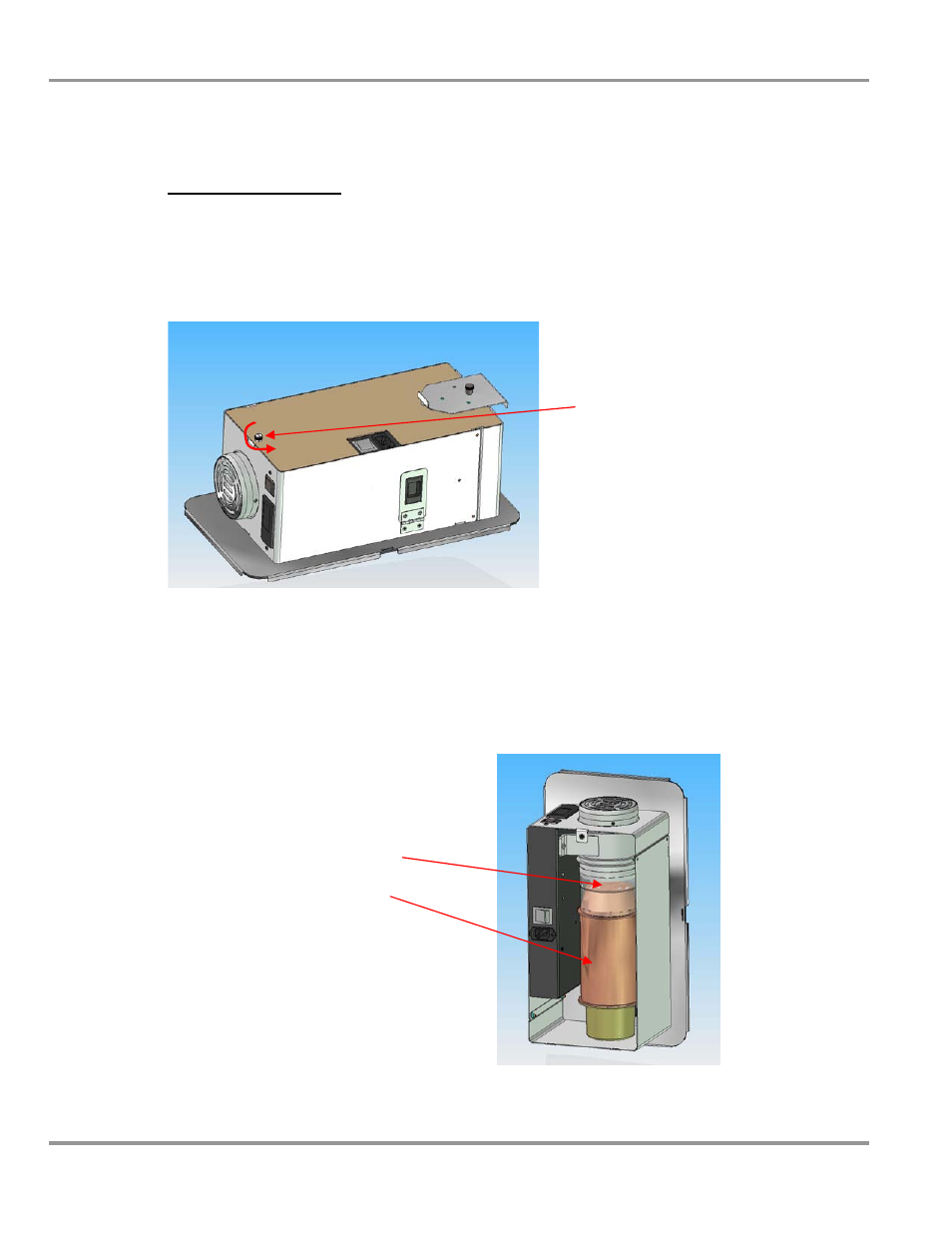

1. Unplug the system. Separate the heater/filter module from the clear
chamber. Place the module with the stainless steel face plate down on
a stable, level surface, as shown in Figure 5-1.
2. Loosen the maintenance
panel thumbscrew. It is
a captive screw, and
will be retained by the
panel.
3. Remove the panel from the module, and locate the filter cartridge, as
shown in Figure 5-2.
Flexible Connector
Filter Cartridge
Figure 5-2
Figure 5-1
