Chapter 4: Using the System
Product Service 1-800-522-7658
9
Note: The following are located in the carton:
• User’s Manual
• Product Registration Card
• Filter Service Reminder Card
Located in the clear chamber:
• Foam Storage Insert (DO NOT DISCARD), containing:
o
Power Cord
o
10 Heating Pans
o
1 Hook
o
1 Shelf
o
1 Pair of Pliers
If you did not receive one or more of the components listed for the
system contact Labconco Corporation immediately for further
instructions.

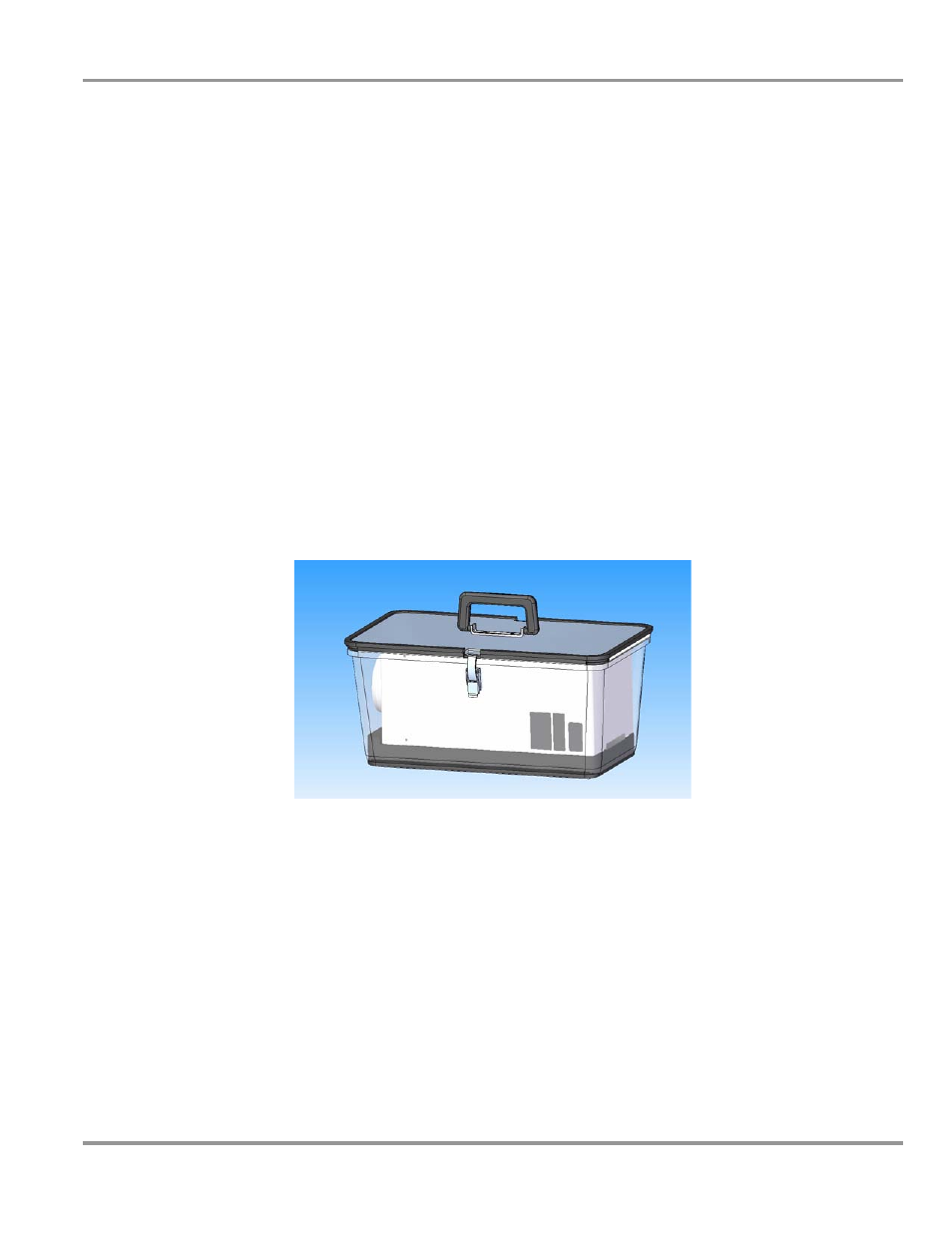

The system is shipped in the transport mode, as shown in Figure 4-1
Transporting the System
When transporting the system, the unit should be in transport mode, with the
heater/filter module nested in the clear chamber and the transport lid locked
on top.
Note: NEVER transport the system in the operating mode (Figure 4-2a). The
heater/filter module can be damaged by rough handling when not protected
by the clear chamber.
Figure 4-1
