Page 14
•
Re-connect 4 way power cable to rear of Switch panel.
•
Re-fit cover – 8 x M3 countersunk screws.
5.9
GROUNDING OUTPUT D

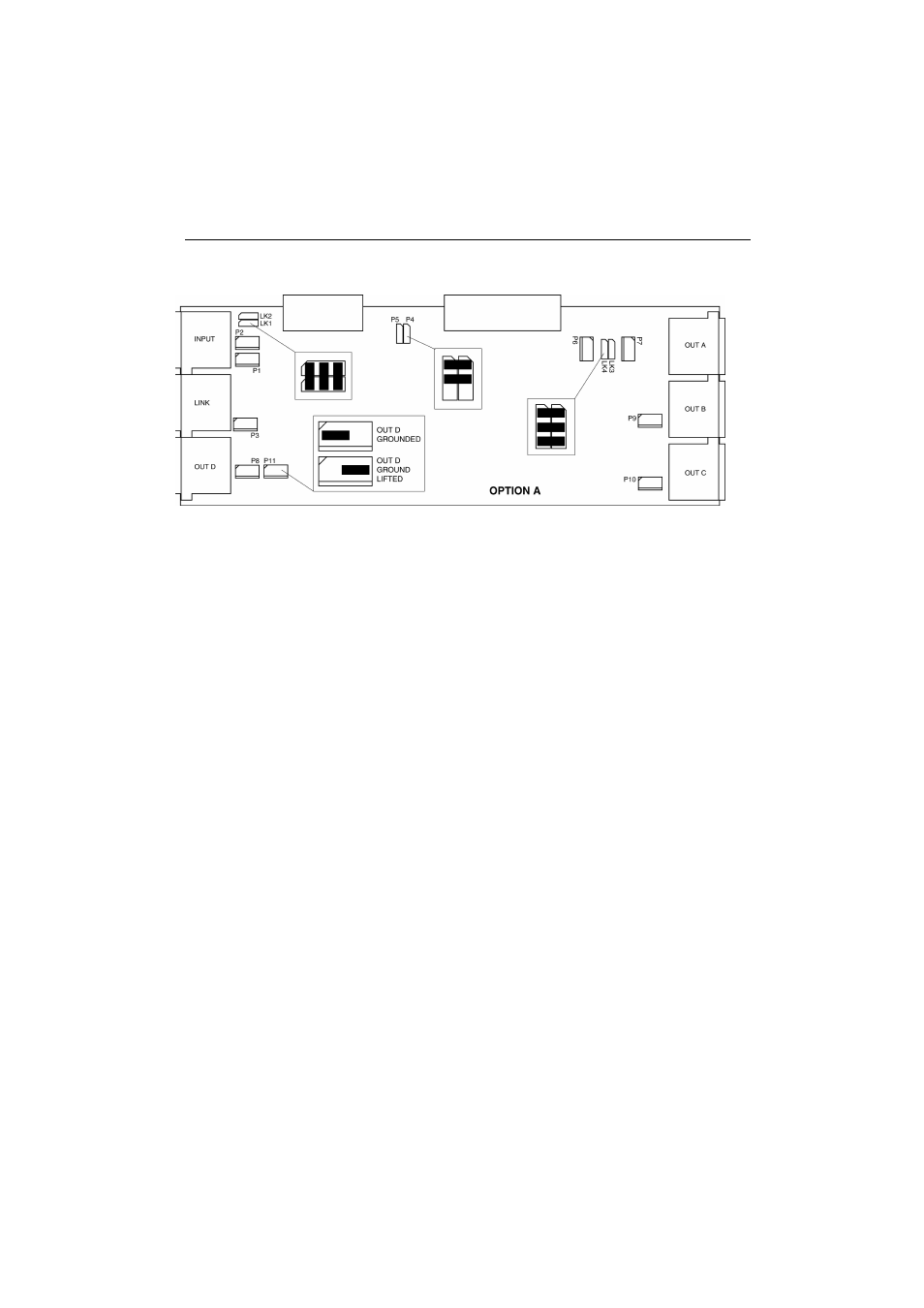

Referring to the above diagram the shorting link on P11 can be used to ground pin
1 on OUT D.
Please note:
Ex-works default is with OUTPUT D ground lifted.
