D-Link DIR-301 - Manual (Page 39)

3 D-Link DIR-301 User Manual
Section 3 - Configuration

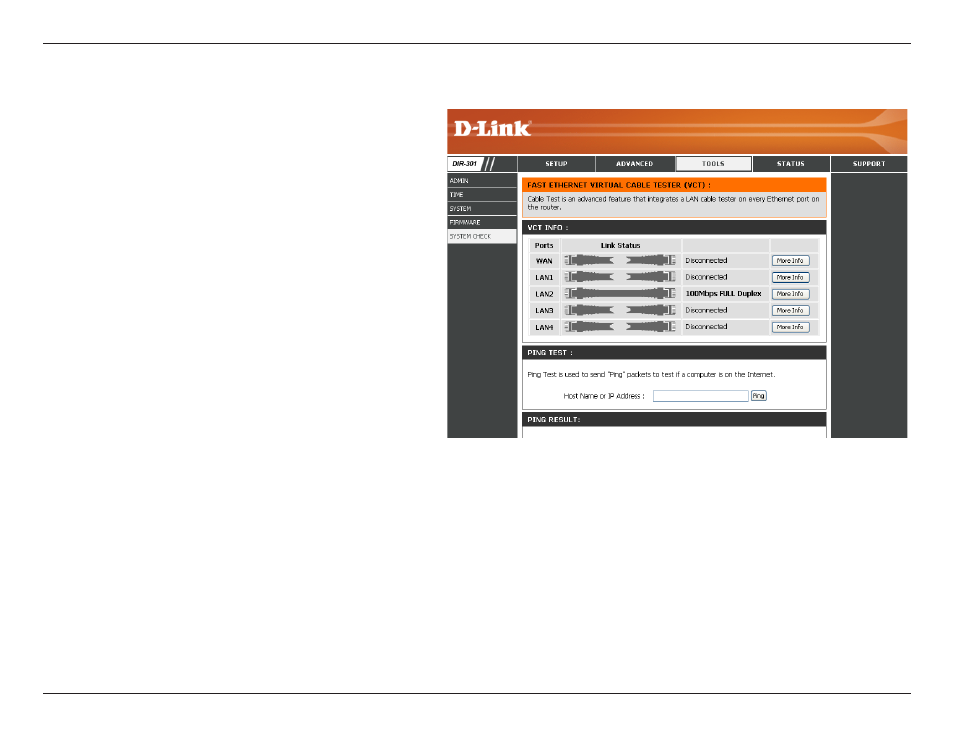

System Check
VCT is an advanced feature that integrates a
LAN cable tester on every Ethernet port on the
router. Through the graphical user interface
(GUI), VCT can be used to remotely diagnose
and report cable faults such as opens, shorts,
swaps, and impedance mismatch. This feature
significantly reduces service calls and returns
by allowing users to easily troubleshoot their
cable connections.
The Ping Test is used to send Ping packets
to test if a computer is on the Internet. Enter
the IP Address that you wish to Ping, and click
Ping.
Virtual Cable
Tester (VCT) Info:
Ping Test:
