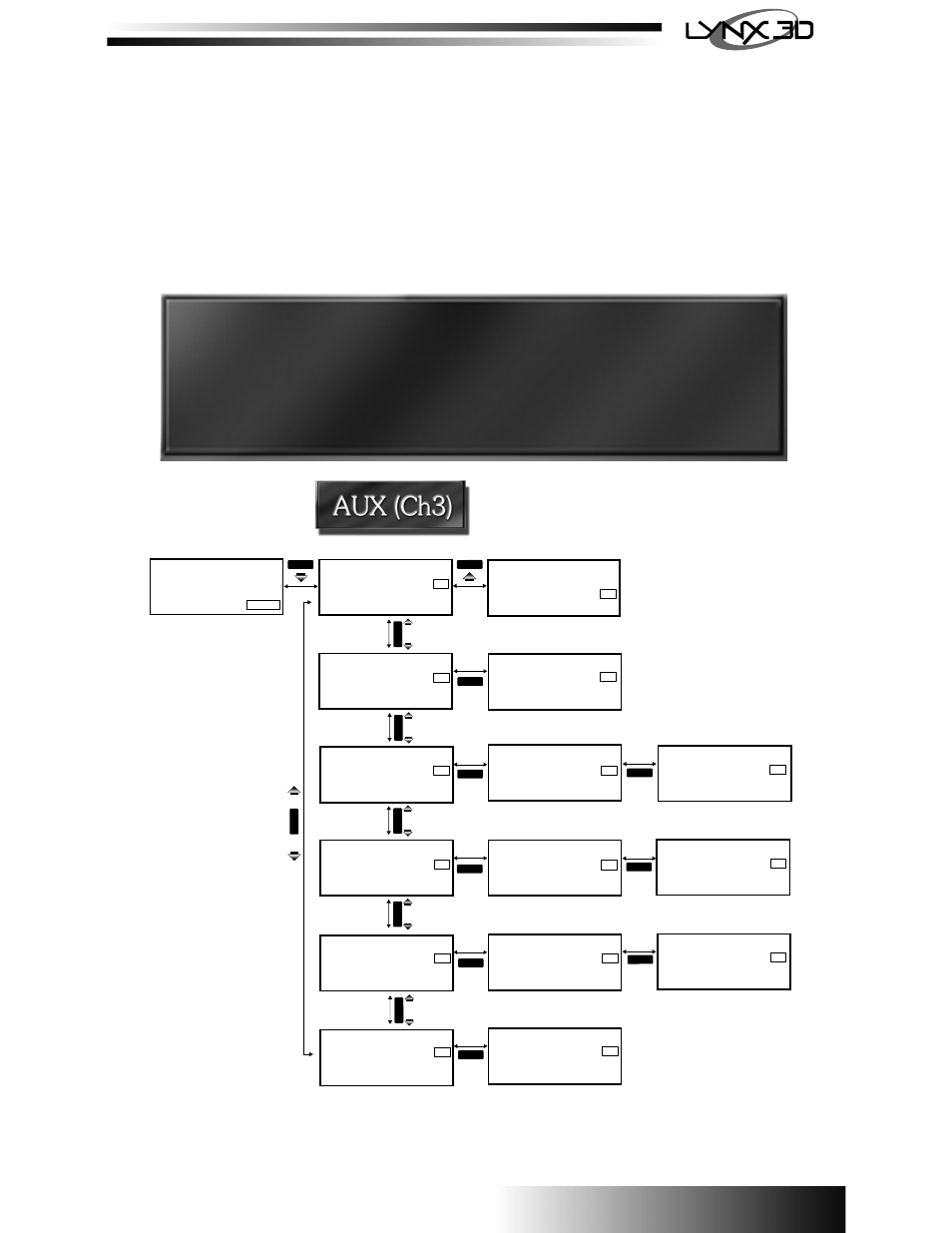

Auxiliary Channel 3:
This is the third channel of your three channel radio and can be used for many different applications.
There are 5 programmable settings for the Aux. 3rd channel. They can be selected by pressing the
Aux. +/- keys to access each point. Once you have selected the #, they can be adjusted by using the
“Data” in/dec keys. Continue with all 5 until they are programmed to your needs. If you wish to use
less than the five setting you can inhibit #2, 3 or 4 by pressing the “Data” inc/dec keys simultaneously,
the screen will read “Inh”. To reactivate the inhibited setting just push the “Data” inc/dec keys
simultaneously and select the %. To activate the third channel once it is programmed, push the “Aux”
+ or - keys to cycle through the points you have programmed.
Servo Reversing:
This is used to change the rotating direction of your servos. Use the “Aux” +/- keys to select channel
#1 (Steering), #2 (Throttle) or #3 (Aux). Normal rotation will look like “noR” and reverse will look like
“REv”. To change these settings you will have to push the “Data” inc/dec key simultaneously.
Racer Tip
The most common use of this function is the manipulation of a remote needle valve
adjustment for nitro boats. Lets talk about how to set it up. First, you want to determine
the neutral position and set this on #3. This will allow you two clicks up and two clicks
down. Next, program the settings so you can “learn” or :richen” the motor for fine tuning
the performance. Do not have drastic changes: a few percentage points are fine.
Experiment for yourself to find the optimum.
