26
5. Enter the IP address, Port Number and choose a Name/Location for the installation. In the COM
Selection drop-
down box, click on “Select 4 – TCP/IP” and then click “OK”. Click “OK” back on

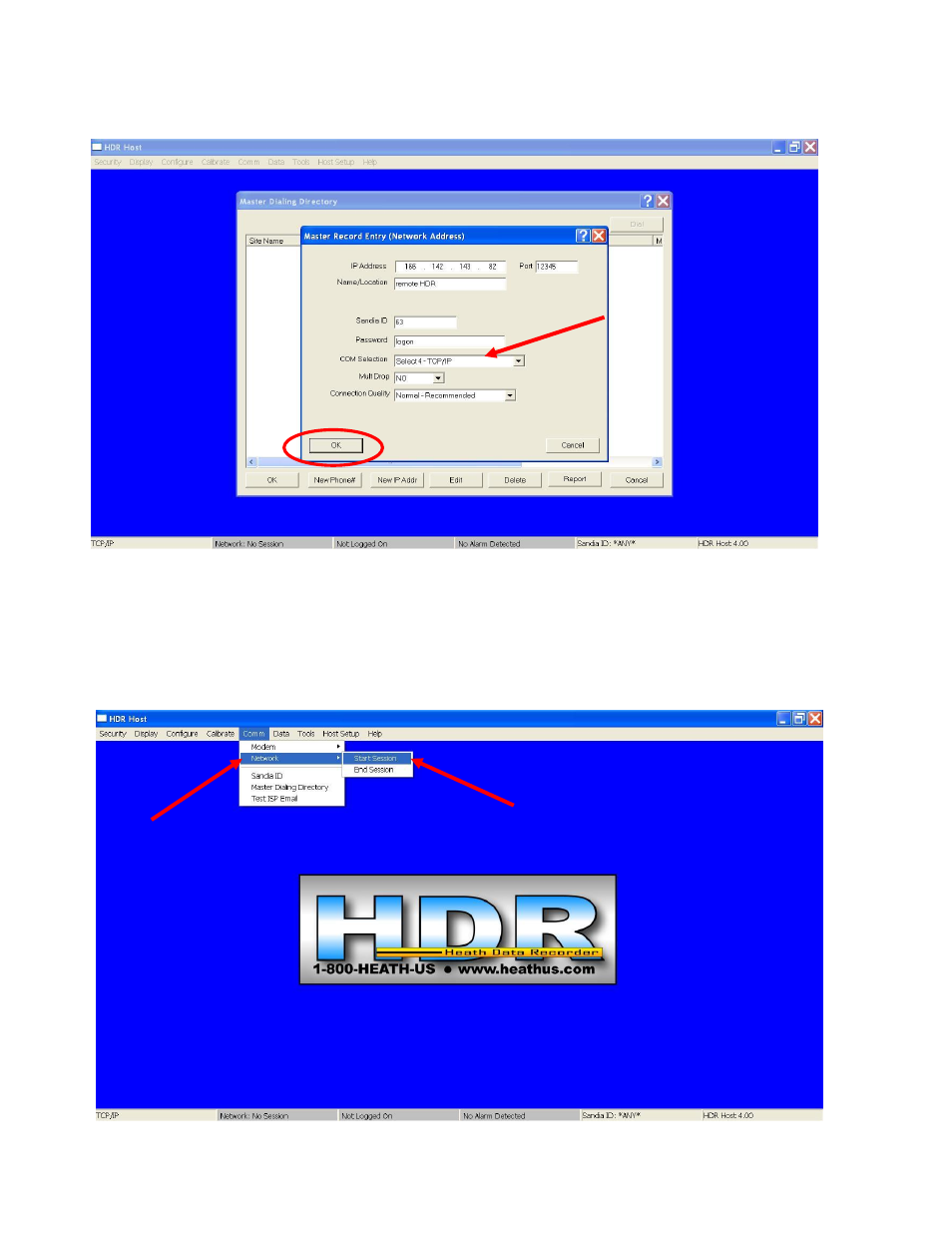

the Master Dialing Directory window to accept the information. The screen shown below is an
example using the Heath engineering HDR instrument.
6. To begin using the IP modem it must be wired correctly, configured properly and powered up.
The HDR modem port baud rate must match the IP modem baud rate. Refer to the IP modem
manufacturer’s users manual for further information on its use and configuration. Heath provided
IP modems will be pre-configured at the factory.
7. Select “Comm – Network – Start Session” to begin a network session.
