Pinout Assignments
57
IND100241-17
Appendix

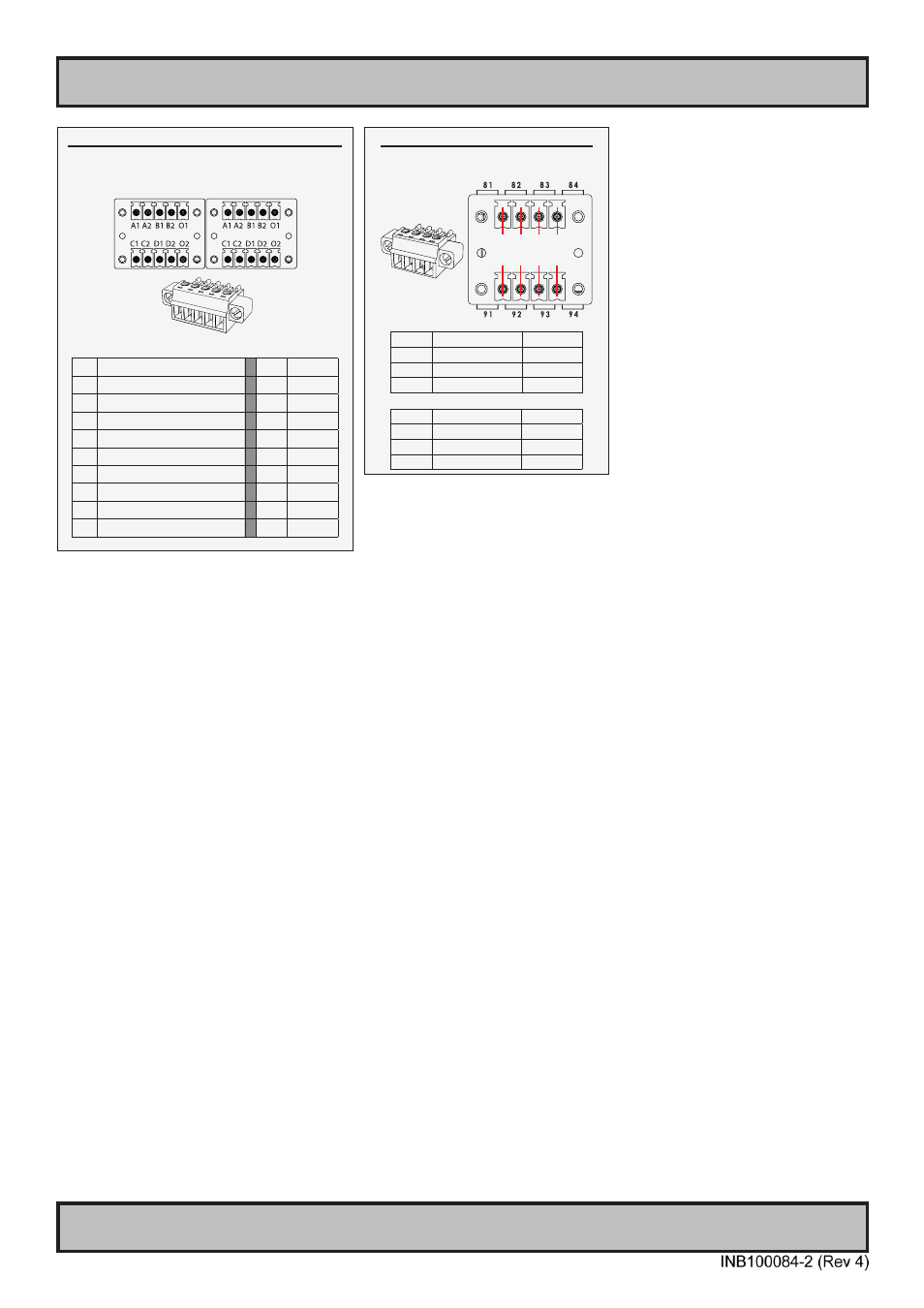

10+10 pin Isolated Digital Input/Output Module
Type Number “HT00268 OPT-A1”
Module A Module B
Module A Module B
A1 External Power +
A1
IN+[0]
A2 N/C (Not Connected)
A2
IN-[0]
B1 External Power - (GND1)
B1
IN+[1]
B2 N/C (Not Connected)
B2
IN-[1]
O1 HS[0]
O1 N/C
C1 HS[1]
C1 IN+[2]
C2 N/C (Not Connected)
C2 IN-[2]
D1 HS[2]
D1 IN+[3]
D2 N/C (Not Connected)
D2 IN-[3]
O2 HS[3]
O2 N/C
4+4 pin CAN I/O Module, 2 channels
Type Number “HT 00254 OPT-A1”
X8
CAN1
X9
CAN2
1 2 3 4
1 2 3 4
Pin 01 X8 - Can1:
081 In Low
Pin 02 X8 - Can1:
082 Out Low
Pin 03 X8 - Can1:
083 In High
Pin 04 X8 - Can1:
084 Out High
Pin 01 X9 - Can2:
091 In Low
Pin 02 X9 - Can2:
092 Out Low
Pin 03 X9 - Can2:
093 In High
Pin 04 X9 - Can2:
094 Out High
