Physical Connections
24
IND100133-55
Added functionality through 4 x PCI Sized Metal Brackets
If the PCI slots are not all occupied by regular internal PCI Based Cards (as indicated on previous page), the PCI
Sized Holes can be fitted with additional functionality which are connected to the main board offering more connectors
mounted on PCI Metal Brackets.

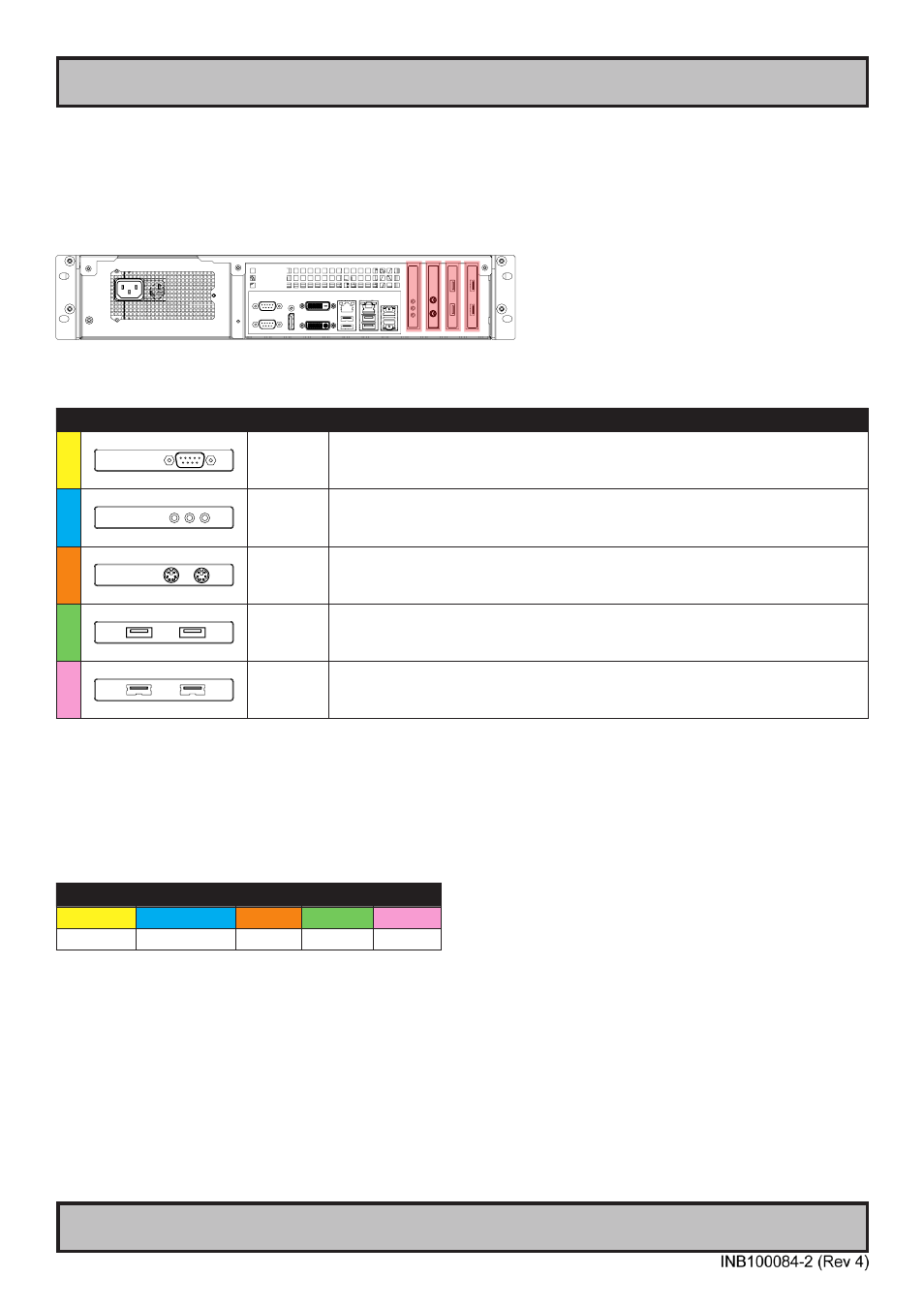

Example illustration showing 4 x PCI Metal Bracket options (1 x AUD, 1 x PS/2, 1 x USB2.0, 1 x USB3.0):
Available PCI Sized Metal Bracket Options:
# Illustration Module Code ID Description / Function
A AMP
2W Amplified Audio Mono/Stereo Module
Connectors: D-SUB 9P Male
Typenumber: Pending, coming Q2/2015
B AUD
Audio Mono/Stereo Module
Connectors: 3 x 3.5mm Jack (Line-in, Line-Out, Mic-in).
Typenumber: Pending, coming Q2/2015
C PS/2
Keyboard and Mouse
Connectors: 2 x PS/2 5-pin mini-din
Typenumber: Pending, coming Q2/2015
D USB2
Additional USB ports
Connectors: 2 x USB2.0
Typenumber: Pending, coming Q2/2015
E USB3
Additional USB ports
Connectors: 2 x USB3.0
Typenumber: Pending, coming Q2/2015
PCI Bracket Expansion Matrix
Table below indicates how many duplicates of the same bracket can be installed at the same time. Due to limited
number of internal connectors and technical limitations some combinations (with duplicates) are naturally not possible
to achieve. In other cases adding a duplicated PCI Bracket Option would not yield any technical/functional benefits.
AMP AUD PS/2 USB2 USB3
A B C D E
1 1 1 2 1
