Figure 8 - Rough Opening for Installing Peninsula Fireplace on
Platform
* As required by design as long as ceiling clearance is maintained.
Platform Must Be
Solid, Flat, and
Fully Supported
Figure 9 - Rough Opening for Installing See-Thru Fireplace
PRE-INSTALLATION
PREPARATION
Continued
MANTEL CLEARANCES
Woodwork, such as wood trims, mantles, and other combustible
materials projecting no more than 1
1 /
2
inches (3.81cm) shall not be
placed within 7 inches (17.78cm) from the opening of the unit.
Combustible material above and projecting more than 1
1 /
2
inches
(3.81cm) from the appliance’s face must not be placed less than 15
inches (38.10cm) from the opening of the appliance (see Figure 6).

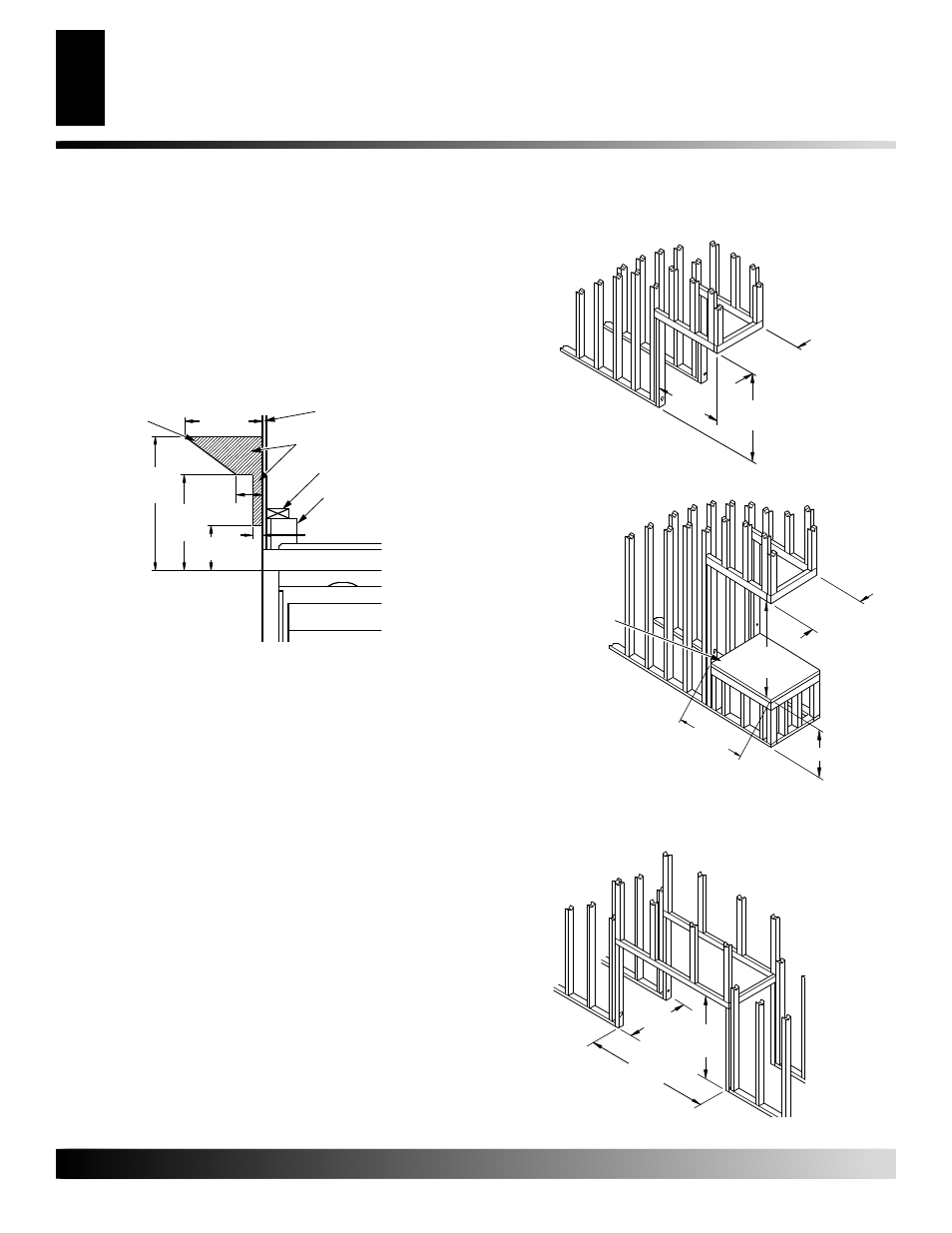

Figure 6 - Mantel Clearances for Peninsula and See-Thru
Fireplaces (Peninsula Shown)
12"
(30.5cm)
Min.
21"
(53.3cm)
Min.
15"
(38.1cm)
Min.
4"
(10.2cm)
Min.
7" (17.8cm)
Min.
1 1 / 2 " (3.8cm)
Min.
UNIT
Spacer
2 x 4
Combustible
Material May
Be Used
Drywall (Gypsum
Board, Sheetrock, Etc.)
Safe Zone for Projection
of Combustible Material
Figure 7 - Rough Opening for Installing Peninsula Fireplace
39 3 / 4 "
(101cm)
Min.
40
1 / 2 "
(102.9cm
)
23
5 / 8 "
(60cm
)
FRAMING
Once the final location has been determined, observing height
clearances for vent termination, you may construct framing using
dimensions shown in Figures 7 through 12, depending on your
installation.
If the appliance is to be installed directly on carpeting, tile (other
than ceramic), or any combustible material other than wood floor-
ing, the appliance must be installed on a metal or wood panel
extending the full width and depth of the appliance. There are three
holes on each side of the bottom of the unit where screws can be used
to secure the unit to the floor.
The gas supply line may be connected through the side framing or
alternately through the lower sub-flooring or a platform base if
provided (see Figures 10 and 11, page 7). Depending on the
installation, refer to the appropriate illustration.
