CLEARANCES
Minimum clearances to combustibles are:
• Back and Sides of Surround: ......................................... 0" min.
• Vent Surfaces: ............................................... 1" (2.54cm) min.
• Ceiling to Opening: ................................... 36" (91.44cm) min.
• Floor: ............................................................................. 0" min.
• Wall to Front of Glass: .............................. 36" (91.44cm) min.
• Perpendicular Wall to Opening of Unit: ....... 2" (5.08mm) min.
• Top Spacer: ................................................................... 0" min.

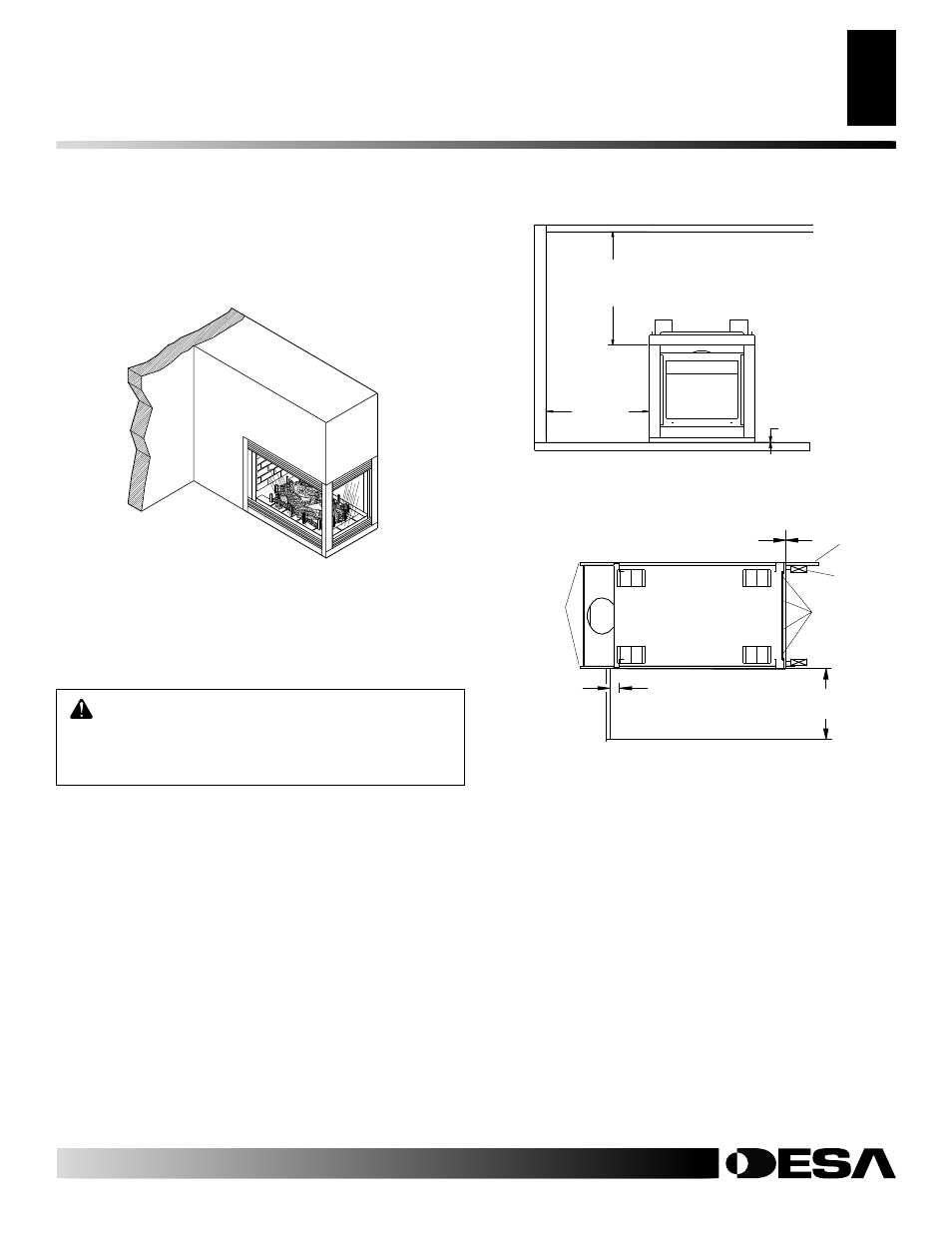

Figure 4 - Minimum Clearances (Peninsula Shown)
Figure 5 - Minimum Clearances (See-Thru Shown)
CAUTION: Do not block required air spaces with
insulation or any other material. Do not obstruct the
effective opening of the appliance with any type of
facing material.
PRE-INSTALLATION
PREPARATION
CEILING
WALL
36"
(91cm)
Min.
36"
(91cm)
Min. 0" Floor
0"
36"
(91cm)
2" (5cm)
Wall In Front Of Glass
36" (91cm) Min.
Perpendicular
Wall 2" (5cm)
Min. From Opening
Right Side
Surround
(0" Min.)
Left Side
Surround
(0" Min.) TOP VIEW
Combustible
Material
Drywall
2 x 4 Stud
Minimum 1"
Clearance from
Side (Only for
See-Thru)
Figure 3 - Possible Installation of Peninsula Fireplace
7. Do not use this appliance if any part has been under water. Imme-
diately contact a local service technician to examine the appliance
and to replace any part(s) of the control ignition system and other
related components that have submerged under water.
SELECTING LOCATION
Continued
SELECTING LOCATION
PRE-INSTALLATION PREPARATION
Clearances
