HIGH ALTITUDE INSTALLATION
Your Vanguard direct-vent fireplace has been CSA tested and
approved for operation at altitudes in the USA from 0-2000 ft. and
in Canada from 0-45000 ft.
When installing this fireplace at an elevation above 2000 feet (in the
USA), you may need to decrease the input rating by changing the
existing burner orifice to a smaller size. Reduce input 4% for each
1000 feet above sea level. Check with your local gas company for
proper orifice size identification.
When installing this fireplace at an elevation above 4500 feet (in
Canada), check with local authorities.
Consult your local gas company to help determine the proper orifice
for your location.
For assistance with any high altitude installation contact DESA
International’s Technical Service Department at 1-866-672-6040.
VENTING INSTALLATION
Continued
Venting with Two 90° Elbows
Vertical (V
1
) Horizontal (H)
5' min. 6' max.
6' min. 12' max.
7' min. 18' max.
8' min. 20' max.
Note: Vertical (V
1
) +
Vertical (V
2
) = 20' max.
45° Starter Elbow
Required
Vertical Venting
V = 30' max.

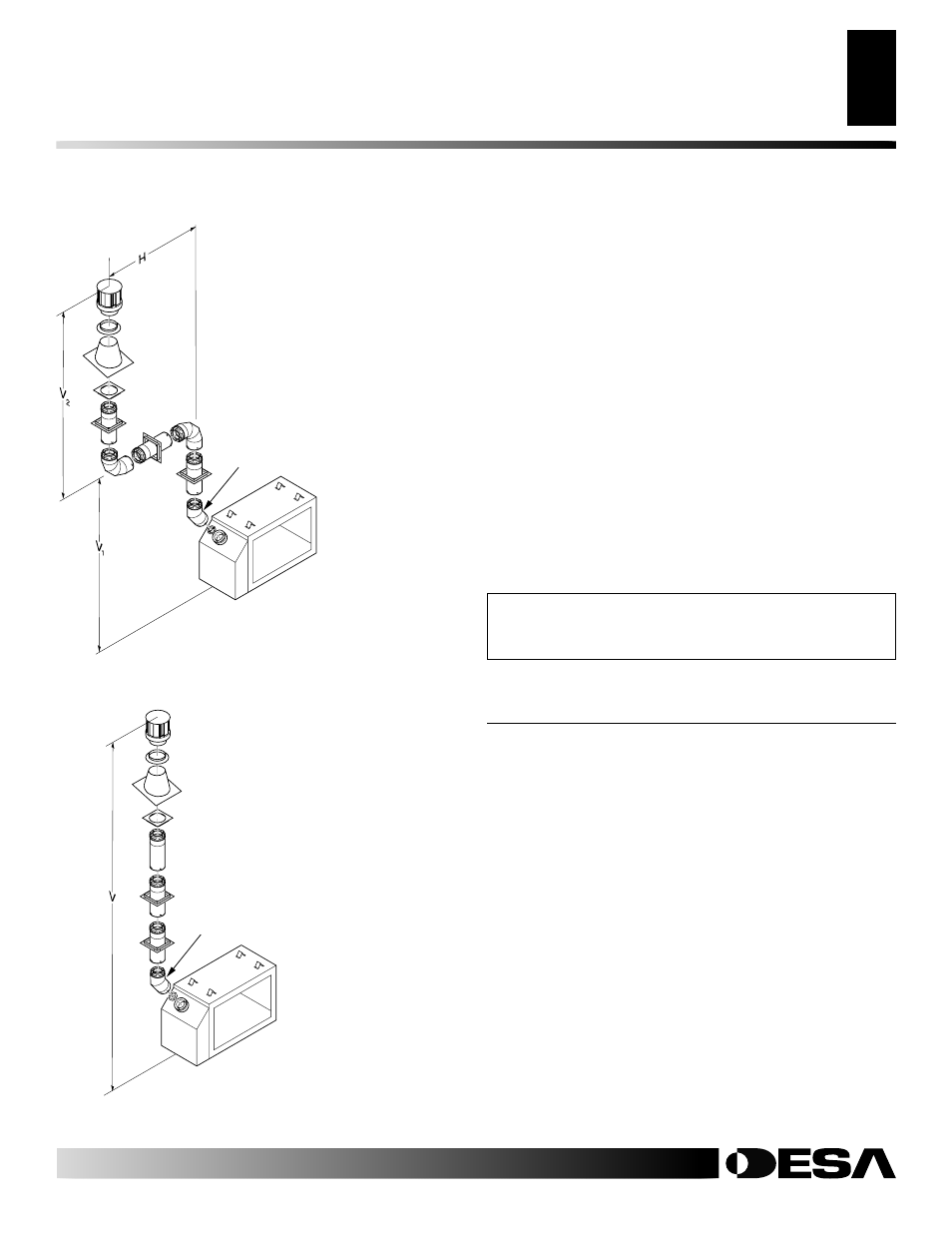

Figure 31 - Vertical Rigid Venting Configuration With No
Horizontal Run
Figure 30 - Vertical Rigid Venting Configuration Using Two
90° Elbows
RVF Kit Shown
45° Starter Elbow
Required
VENTING INSTALLATION
Installation for Vertical Termination (Cont.)
High Altitude Installation
Parts Lists for Venting Kits and Components
PARTS LISTS FOR VENTING KITS AND
COMPONENTS
Vanguard Rigid Venting
Number Description
*CVK Corner Vent Kit
Includes: 7" x 30º Elbow, 7" x 90º Elbow, 7" Adjustable
Galvanized Pipe (7-12"), 6" Pipe, Wall Thimble, Hori-
zontal Termination, RTV Silicone and 20 Screws
*BVK Basement Rigid Vent Kit
Includes: 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x
90° Elbow, 7" Adjustable Galvanized Pipe (7-12"),
Wall Thimble, Horizontal Termination, RTV Silicone
and 20 Screws
*SVK Snorkel Rigid Vent Kit
Includes: 7" x 30° Elbow, 7" x 4' Galvanized Pipe, 7" x
90° Elbow, 7" Adjustable Galvanized Pipe (7-12"),
Wall Thimble, 36" Snorkel Termination, RTV Silicone
and 28 Screws
*RVF Roof Rigid Vent Kit
Includes: Flue Restrictor, Storm Collar, 7" x 30° Elbow,
7" x 4' Galvanized Pipe, 7" x 2' Galvanized Pipe, 7"
Adjustable Galvanized Pipe (7-12"), Firestop Support,
Roof Flashing, RTV Silicone, Vertical Termination,
and 26 screws
*NOTICE: The 7" x 30° Elbow supplied with kits CVK,
BVK, SVK, and RVF cannot be used. It MUST be
replaced with a 7" x 45º Starter Elbow (D2060).
