Thermocouple
Incoming
Main
Gas
Supply
Piezo Ignitor
Control
Valve
Variable Speed
Control
* Remote
Control
Electrical Rating:
120v, 60Hz, 0.7A
Blower
* Use Extension Cord (Included With Kit)
Pilot
TH
TP
TPTH
Thermopile
Piezo Ignitor Do Not
Connect
To 120V
N.O.SW
(Wall Switch
Supplied)
Pilot
Gas Line
Wireway
GND
BLK
WHT
GRN
Incoming
120V AC
(Fuse Box
or
Breaker)
Connectors
(Not Supplied)
Field Wire
N.O.SW
(Wall Switch
Not Supplied)

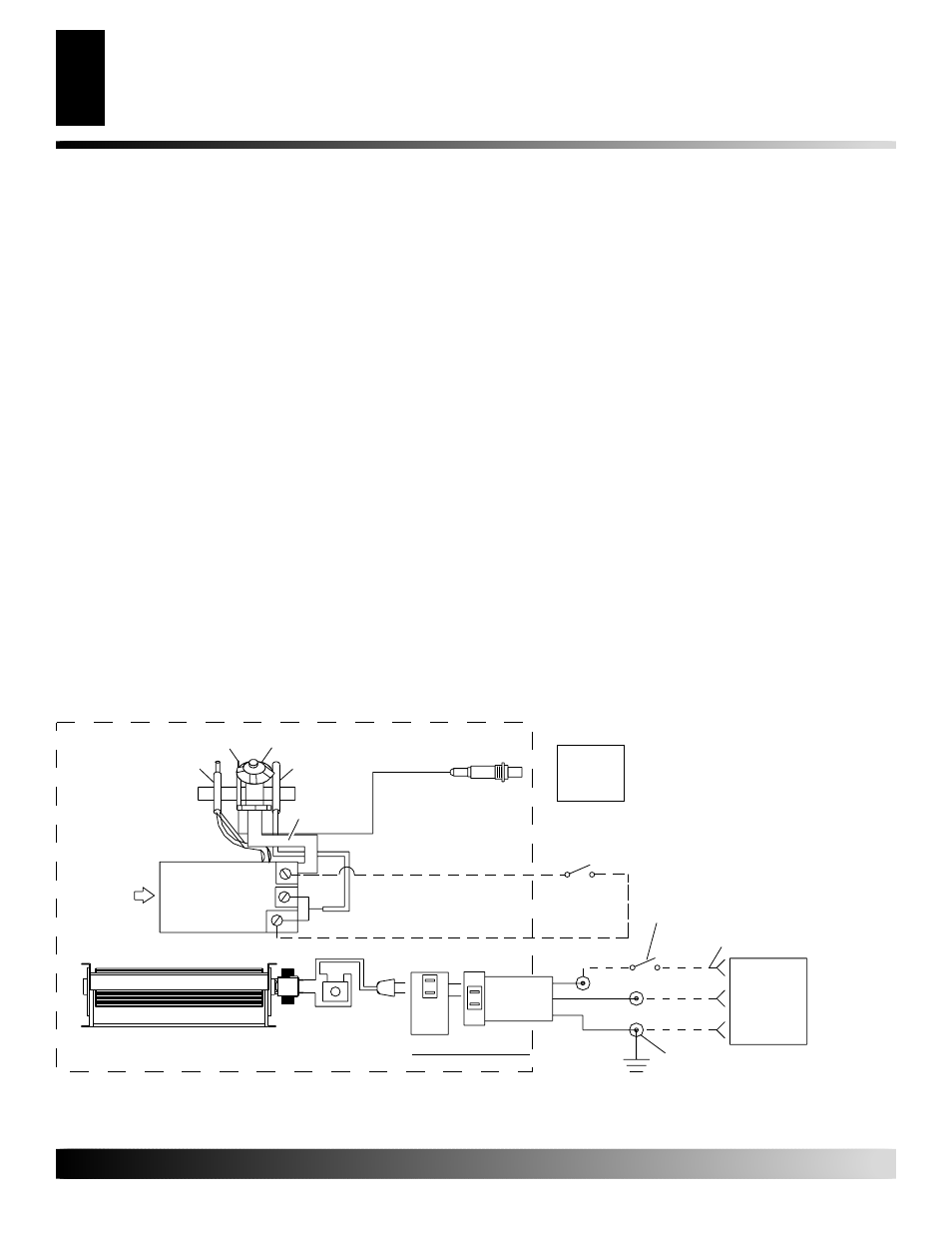

WIRING DIAGRAM
REPLACEMENT PARTS
WIRING DIAGRAM
SERVICE HINTS
TECHNICAL SERVICE
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA International’s Technical Ser-
vice Department at 1-866-672-6040. When calling, please have your
model and serial numbers ready.
You can also visit DESA International’s Technical Services web
site at
www.desatech.com.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burner will have delayed ignition
• fireplace will not produce specified heat
• propane/LP gas supply may be low
You may feel your gas pressure is too low. If so, contact your local
gas supplier.
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s) call DESA International’s Technical
Service Department at 1-866-672-6040 for referral information.
When calling DESA International, have ready
• your name
• your address
• model and serial numbers of your fireplace
• how fireplace was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s) call DESA International at 1-866-672-
6040 for referral information.
When calling DESA International, have ready
• model number of your fireplace
• the replacement part number
REPLACEMENT PARTS
