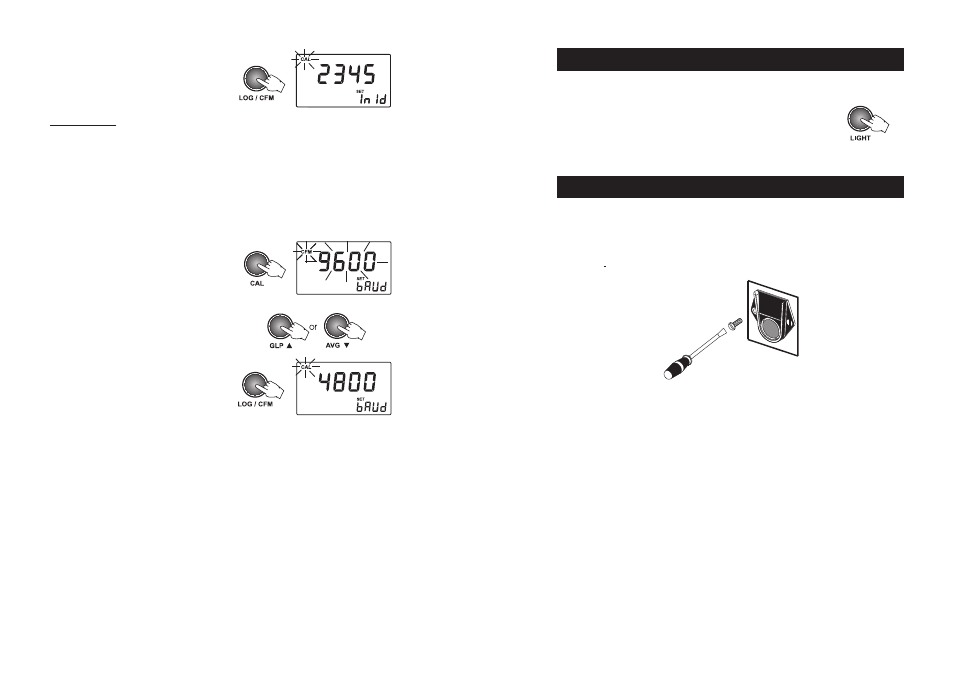

• Press LOG/CFM to save the change. The new
instrument ID will be displayed.
Alternatively, press CAL to exit without saving
the changes.
SET BAUD RATE
The
HI 98713 has a RS232 and a USB link. When
the USB connection is used, the RS232 connection
becomes inactive.
To successfully communicate with the PC, the same
baud rate must be selected on the instrument and
on the PC application. The available baud rates are
1200, 2400, 4800 and 9600.
• To set the baud rate, press CAL when set baud
rate panel is displayed.
The parameter value and “CFM” tag will start
blinking.
• Press the UP or DOWN keys to select the new
baud rate value.
• Press LOG/CFM to save the change. The new
selected baud rate will be displayed.
Alternatively, press CAL to exit without saving
the changes.
L C D B A C K L I G H T L C D B A C K L I G H T L C D B A C K L I G H T L C D B A C K L I G H T L C D B A C K L I G H T
The LCD can be illuminated to allow the user to see the readings even in dark
environments.
To turn ON or OFF the backlight, press LIGHT.
The backlight will automatically shut-off after 25 seconds of non-use to
save the battery life.
T A G I N S T A L L A T I O N T A G I N S T A L L A T I O N T A G I N S T A L L A T I O N T A G I N S T A L L A T I O N T A G I N S T A L L A T I O N
The tag is housed in a rugged metal that can withstand harsh environments. However, it is better
to protect the tag from direct rain.
Place the tag near a sampling point. Fix it securely with the provided screws, in such a way that
the metallic iButton
® is easily accessible for reading the tag.
The number of tags that can be installed is practically unlimited. Additional tags can be ordered
(
HI 920005 - five tag holders with tags).
