4
3.0 Setup
3.1 Package Contents
The UHBX-8X is shipped with a power cord and an RS232 cable.
3.2 Extender Connections

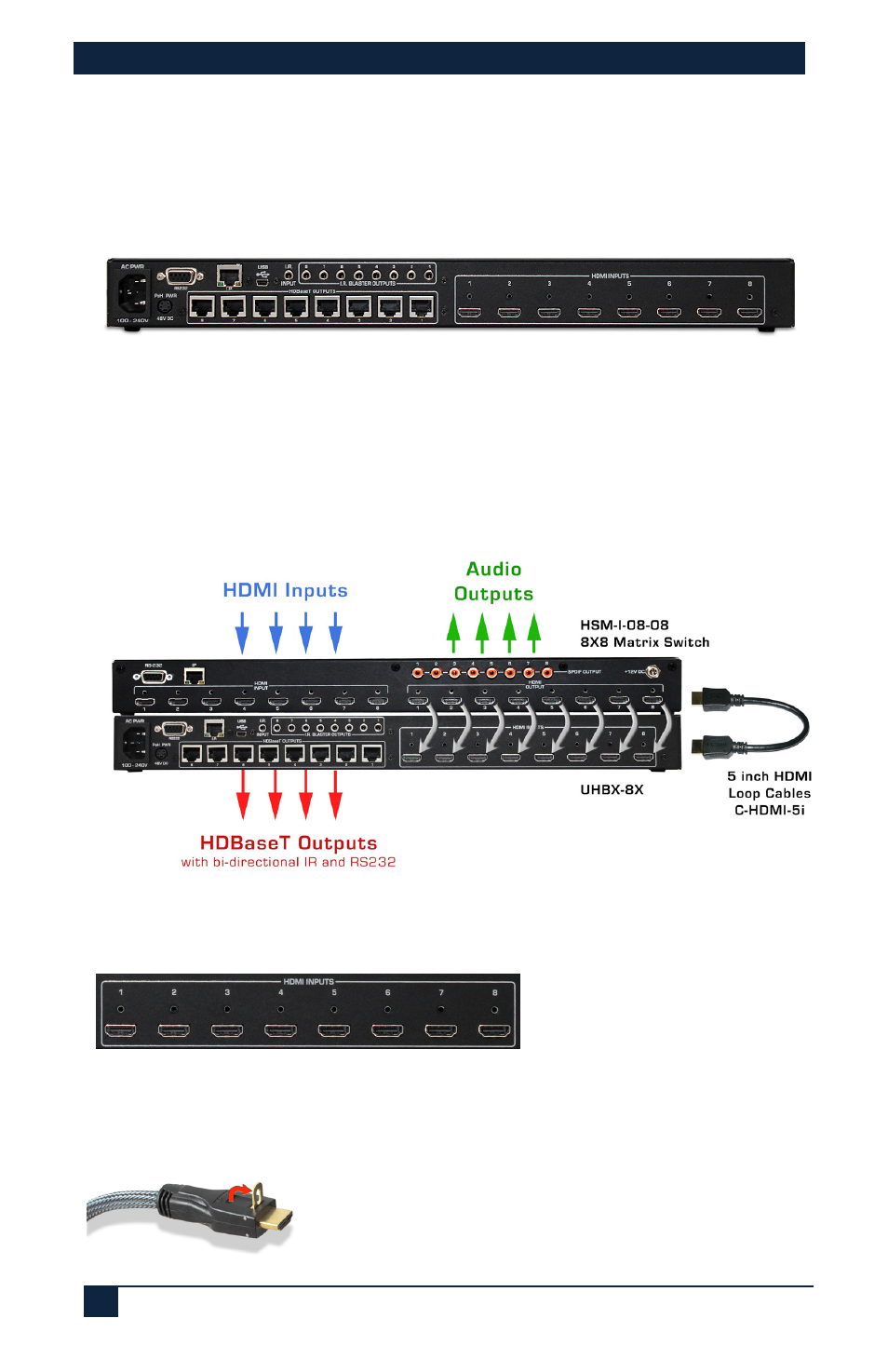

Figure 1 - Extender Connections
As you may have noticed in the above picture the HDMI inputs are on the right
side and the outputs are on the left. The reason for this arrangement is to allow
easy construction of a 8x8 HDMI matrix that has HDBaseT outputs. Hall
Research manufactures 8x8 HDMI matrix with the outputs on the right side. So
if you stack the UHBX-8X with the above matrix, using short 5 inch patch
cables you can add cross-point capability to the extender as shown below:
Figure 2 – Connecting 8x8 Matrix Switcher to the UHBX-8X
3.2.1 Extender Video Input Connections
Figure 3 – HDMI Inputs
Connect any one of the HDMI inputs to the source using quality HDMI cables.
Hall Research offers compatible locking high-quality HDMI input cables with
a convenient flip tab that can secure the input cables to the extender.
Figure 4 – Hall Research C-HDMI-L high bandwidth
HDMI cable with flip-up locking tab
