15

gp

electric.com

GP-RV-80

GP-RV-95

GP-RV-160

GP-RV-80E

GP-RV-95E

GP-RV-160E

Weekender SW

Weekender HD

Solar Elite

Solar Extreme

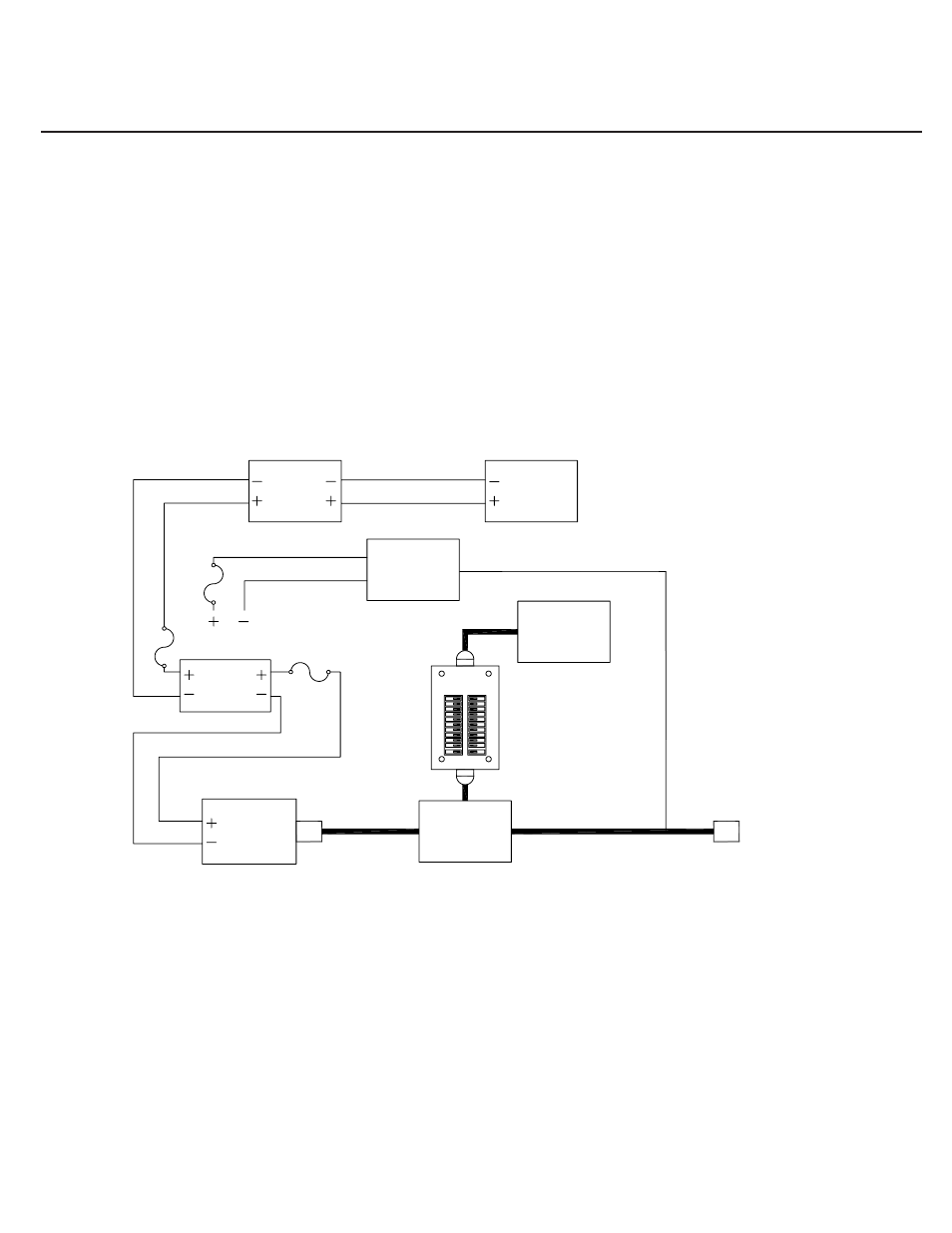

Diagram 6

Inverter

Battery

Solar

Module

Loads

Charge

Controller

Converter/

Battery

Charger

Utility Power or

Generator

AC

Panel

Transfer

Switch

Diagram is recommended wiring only. Compliance

with governing electrical code is assumed.

In no event will Carmanah be liable to any party or

for any direct, indirect, special or other consequential

damages resulting from use of this diagram.

If the inverter supplies power to the AC panel which provides

power to a converter, the resulting battery loop will quickly drain

the batteries.
Disconnect the converter entirely from the system via a breaker

or physically disconnecting the wires.
Usually the converter with circuit protection is rewired to connect

to the utility power side of the system, if utility power is available.

RV Electrical Layout - Two AC Power Sources

with Automatic Transfer Switch

All positive conductors connected

to the battery should be equipped

with the circuit protection rated to

the wire size used.
