Page 13

background image

13

gp

electric.com

GP-RV-80

GP-RV-95

GP-RV-160

GP-RV-80E

GP-RV-95E

GP-RV-160E

Weekender SW

Weekender HD

Solar Elite

Solar Extreme

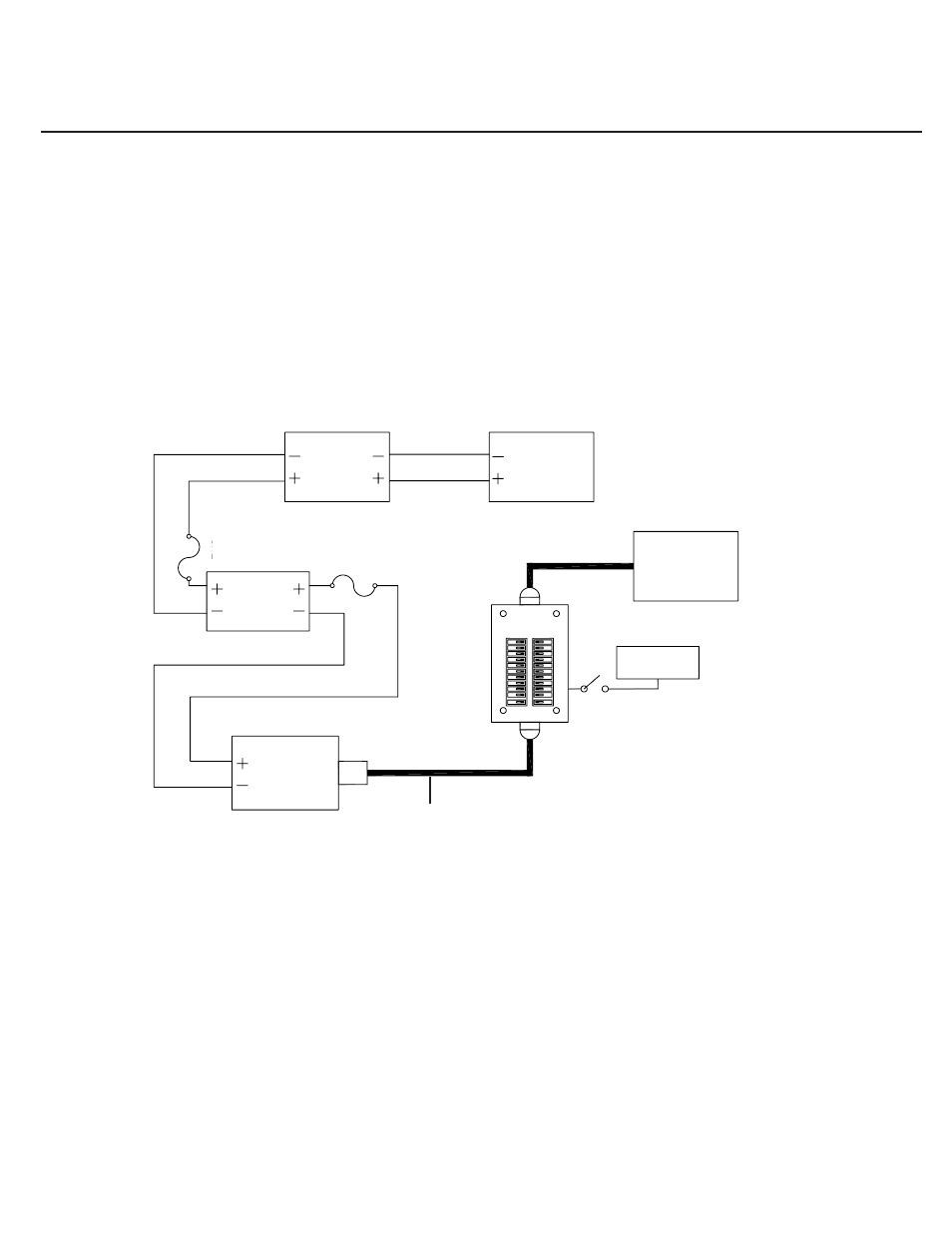

Diagram 4

RV Electrical Layout - RV / Off Grid

All positive conductors connected to the battery

should be equipped with the circuit protection rated

to the wire size used.

If the inverter supplies power to the AC panel which provides

power to a converter, the resulting battery loop will quickly drain

the batteries.

Disconnect the converter entirely from the system via a breaker or

physically disconnecting the wires.

Usually the converter with circuit protection is rewired to connect to

the utility power side of the system, if utility power is available.

Diagram is recommended wiring only. Compliance

with governing electrical code is assumed.

Shore Power Cable

Inverter

Battery

Solar

Module

Loads

Charge

Controller

Converter

AC

Panel

In no event will Carmanah be liable to any party or

for any direct, indirect, special or other consequential

damages resulting from use of this diagram.
