Go Power! Solar Extreme - Manual (Page 14)

14
gp
electric.com
GP-RV-80
GP-RV-95
GP-RV-160
GP-RV-80E
GP-RV-95E
GP-RV-160E
Weekender SW
Weekender HD
Solar Elite
Solar Extreme

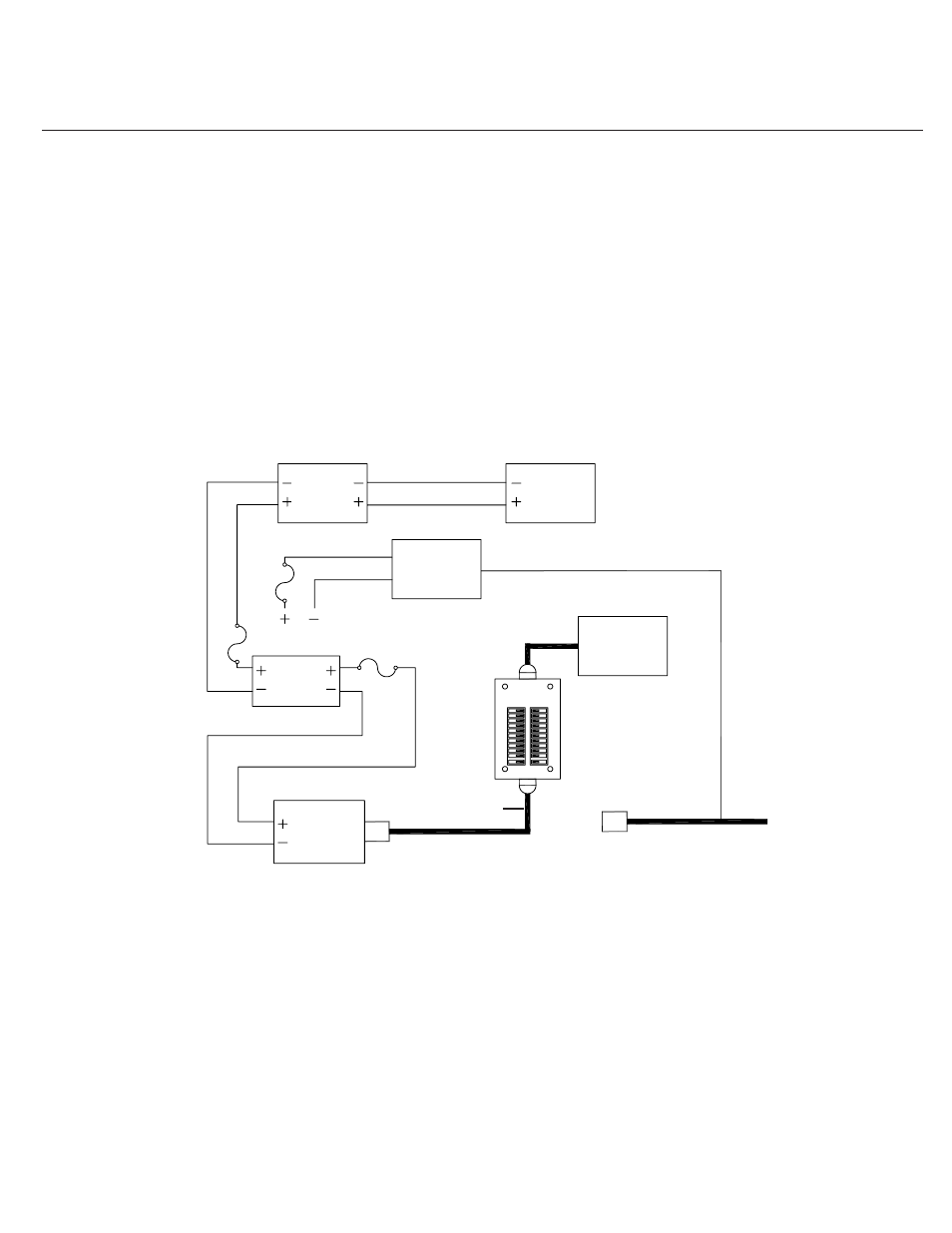

Diagram 5
RV Electrical Layout - Two AC Power Sources
No Transfer Switch - Manual Switching
If the inverter supplies power to the AC panel which provides
power to a converter, the resulting battery loop will quickly
drain the batteries.
Disconnect the converter entirely from the system via a
breaker or physically disconnecting the wires.
Usually the converter with circuit protection is rewired to
connect to the utility power side of the system, if utility power
is available.
Inverter
Battery
Solar
Module
Loads
Charge
Controller
Converter/
Battery
Charger
Shore Power Cable
In the absence of a transfer switch, the AC panel
connection is physically unplugged from inverter
and plugged into utility power and vice versa.
Utility Power or
Generator
Diagram is recommended wiring only. Compliance
with governing electrical code is assumed.
In no event will Carmanah be liable to any party or
for any direct, indirect, special or other consequential
damages resulting from use of this diagram.
All positive conductors connected to
the battery should be equipped with
the circuit protection rated to the
wire size used.
AC
Panel
