INSTALLATION
EN
INSTALLATION
i All the dimensions shown of the illustrations are
expressed in millimetres (mm).

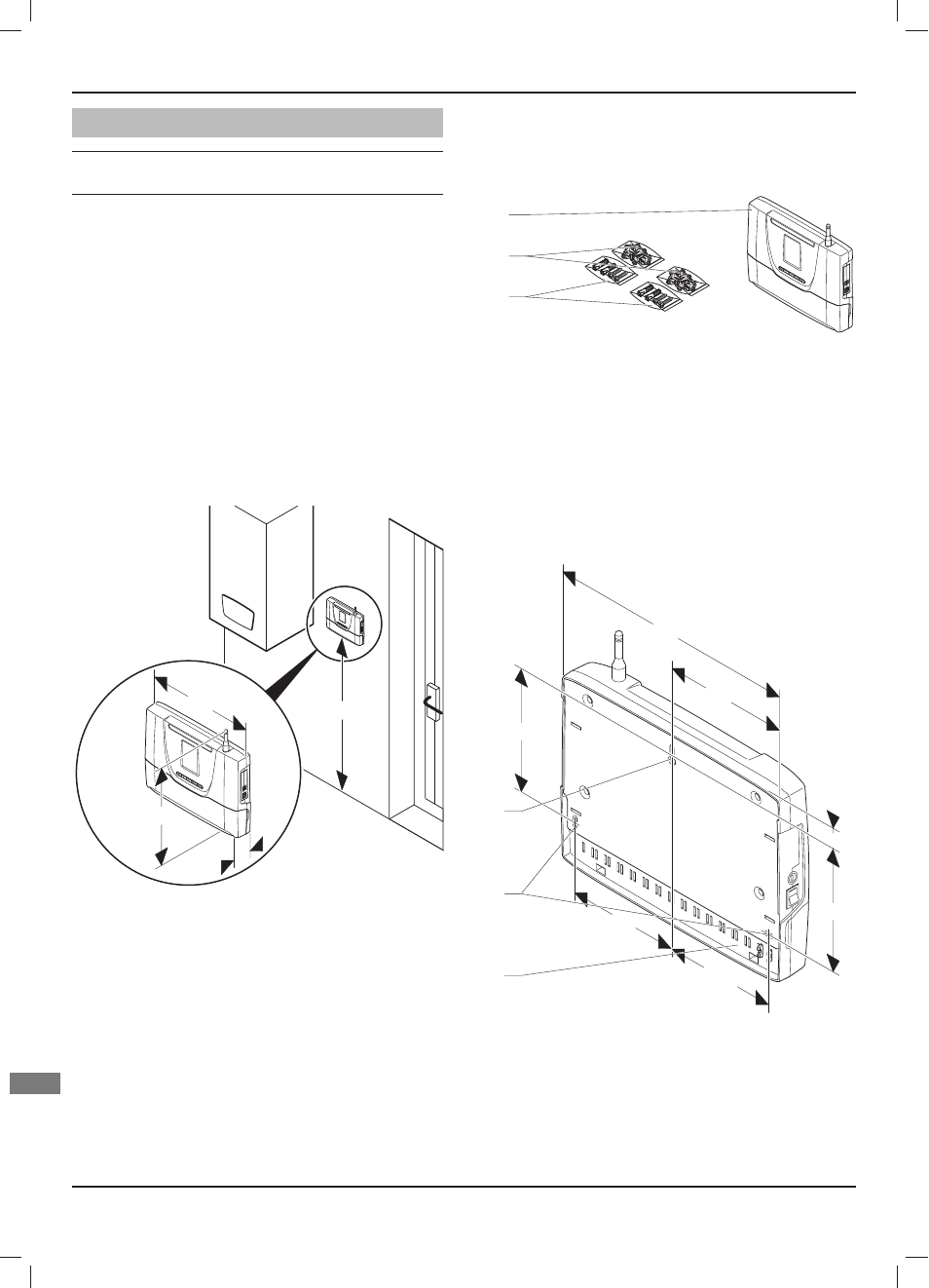

8 Control unit location
• Take all necessary precautions.
Install the system:
- in a room protected from frost,
- in a convenient location, accessible for wiring and servicing
allowing for visibility of the screen.
Do not install the control unit:
- close to heat sources such as radiators, chimney walls,
televisions, sun rays,
- above a cooking device capable of generating steam and
grease,
- in a room with a lot of dust or with a corrosive atmosphere.
290
264
45
1500
9 Installation
9.1 Scope of delivery
3
1
2
Key
1 2 packs with 2 screws with Ø 6 mm plugs
2 2 packs containing 7 anti-tamper connectors
(one anti-tamper connector installed)
3 Control unit
9.2 Installation
• Ensure that the materials used for installation are compatible
with those of the control unit.
• Determine the location of the installation. See the "Control
unit location" chapter.
290
145
126,5
128
23
1
3
2
145
143,5
Key
1 Control unit
2 Lower attachment holes
3 Upper attachment holes
