MAINTENANCE
- 33 -

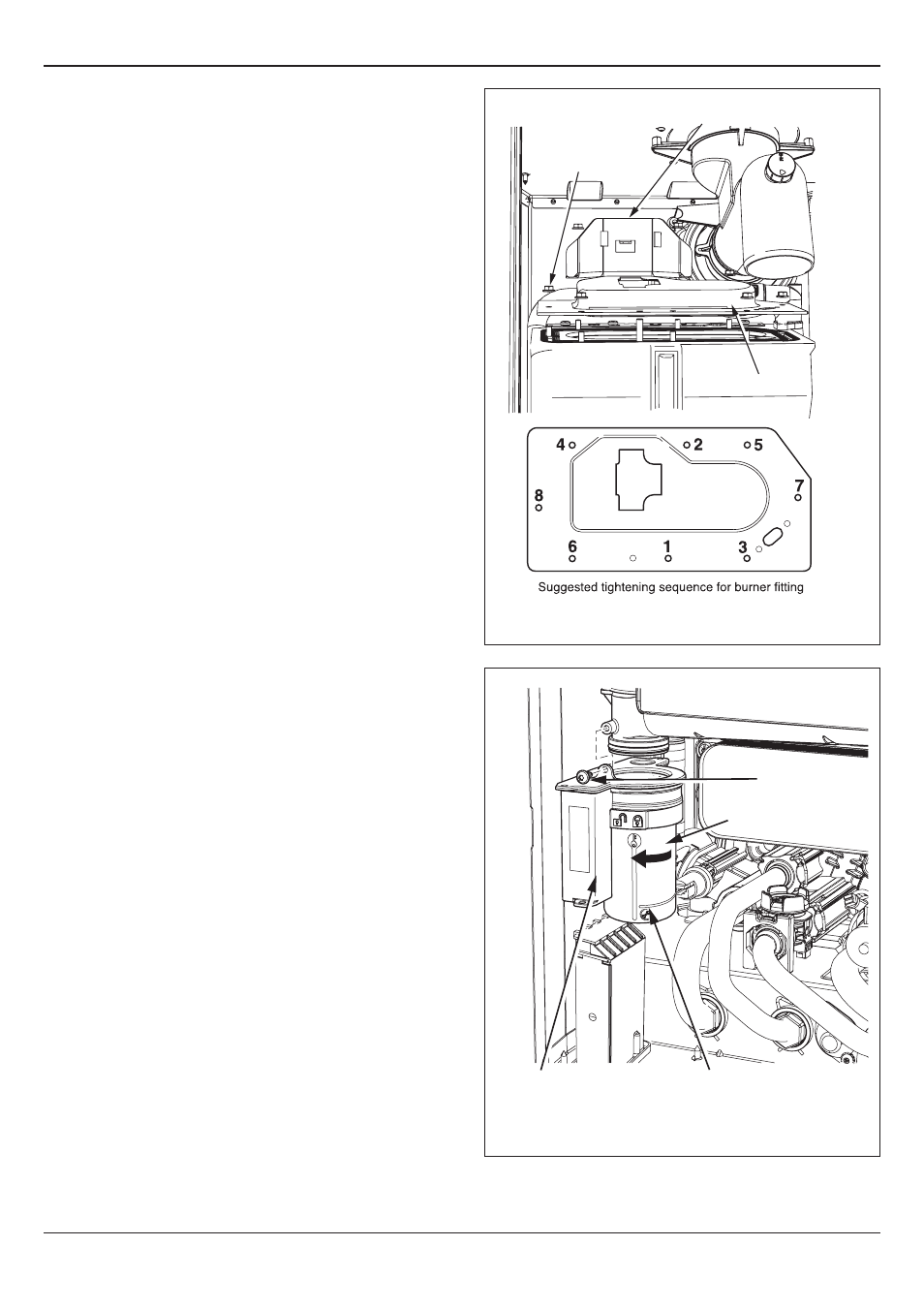

Diagram 12.13
12.5 Condense Trap and Siphonic Drain
The condense trap and siphonic drain does not normally need
servicing unless material deposits exceed beyond the service fill
level, see diagram 12.13.
To clean the condense trap remove the sump and rinse with
water.
12.6 Casing panel seal check
NOTE: If the functional checks did not indicate poor
combustion then it is not necessary to service this
component.
Check the condition of the seal and replace if worn or damaged.
To replace remove the old seal and thoroughly clean the casing
surfaces. Fit the new seals, these are supplied to the correct
lengths and are in four pieces, for use on the sides, top and
bottom.
12.7 Service Completion
Re-check the combustion as described at the beginning of this
section.
On completion of the service the “Benchmark” Service Record
should be completed.
CONDENSE TRAP
AND SIPHONIC DRAIN
SERVICE
FILL LEVEL
SECURING
SCREW
SUMP
13929
SECURING
NUTS (6)
BURNER
FAN CLAMPING
BRACKET
Diagram 12.12
14410
14397
