5 Assembly and installation
16 Installation instructions Envirosorb₃ 0020154078_03
7. Install a flexible connection pipe (1) and (6) (to be
provided on-site) with an O-ring and a stop valve to
each of the connections for the heat pump heating flow
and return.
8. Check the connections for tightness.
5.3.2 Connecting the swimming pool (optional)
Danger!
Risk of material damage due to a direct
connection to a swimming pool.
If the product is directly connected to a swim-
ming pool, damage may be caused by corro-
sion.
▶ Do not connect the heat pump heating
circuit directly to a swimming pool.
▶ If you want to connect a swimming pool to the heating
circuit, note the components (expansion vessels, etc.)
that are required for the installation.

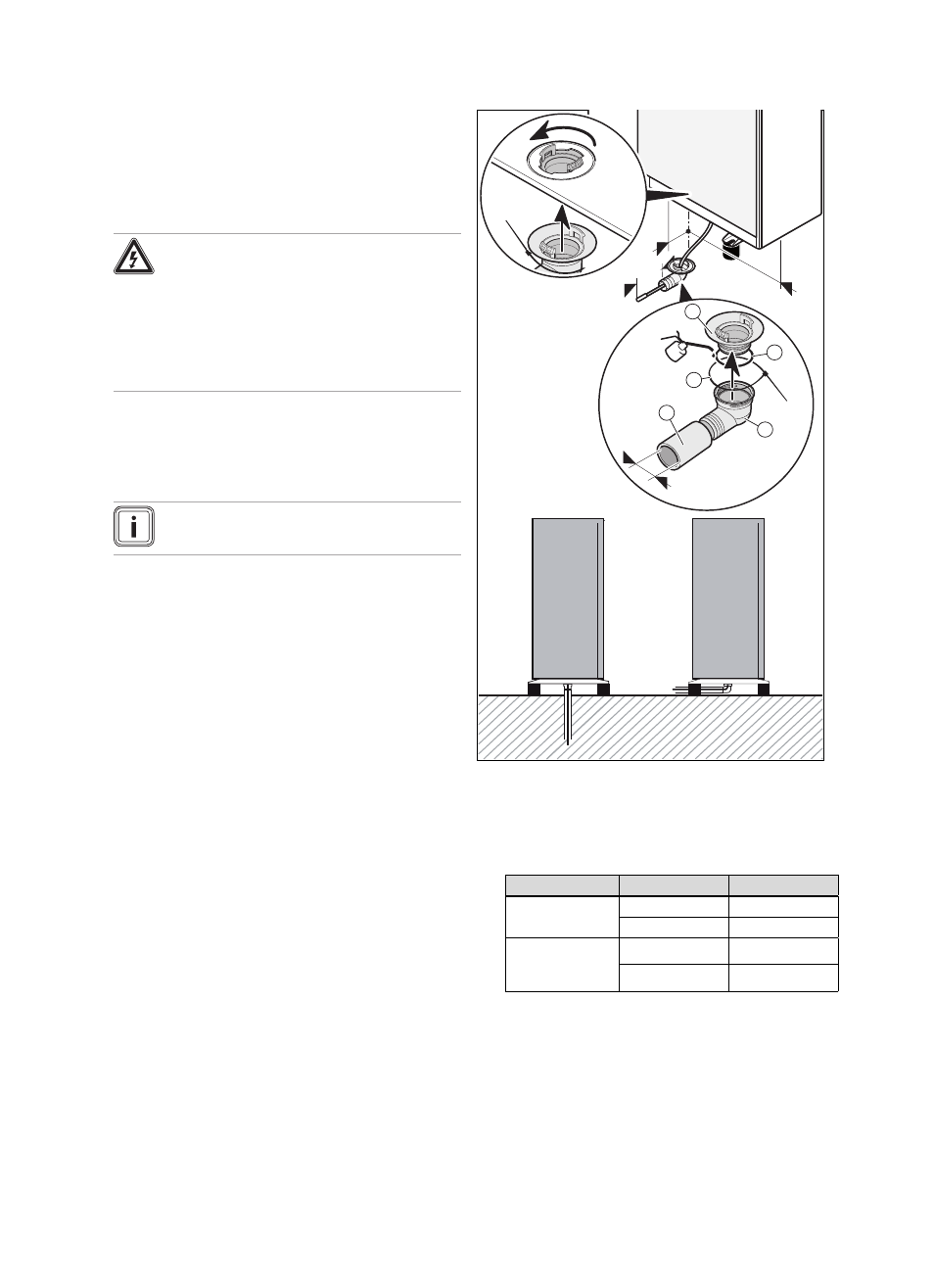

5.3.3 Connecting the condensate drain pipework
Note
Observe all valid national regulations and rules.
B
A
365
Ø25
1
2
3
4
5
1 Condensate drain pipe
2 Adaptor
3 Cable tie
4 Elbow
5 Seal
1. Observe the various installation dimensions for the
products.
Product Dimension Value
– Envirosorb
3
5 A 70.0 mm
B 490.0 mm
– Envirosorb
3
8
– Envirosorb
3
11
– Envirosorb
3
15
A 102.5 mm
B 550.0 mm
2. Pull the heating wire in the condensate pan until the
elbow (4).
3. Connect the elbow (4) and adaptor (2) to the seal (5)
and secure them both using a cable tie (3).
4. Connect a condensate drain pipe to the elbow.
5. Install the heating wire in the condensate drain pipe (1)
in order to prevent the condensate from freezing in the
line.
6. Connect the adaptor (2) with the product's floor plate
and secure it with a 1/4 rotation.
