5 Assembly and installation
14 Installation instructions Envirosorb₃ 0020154078_03

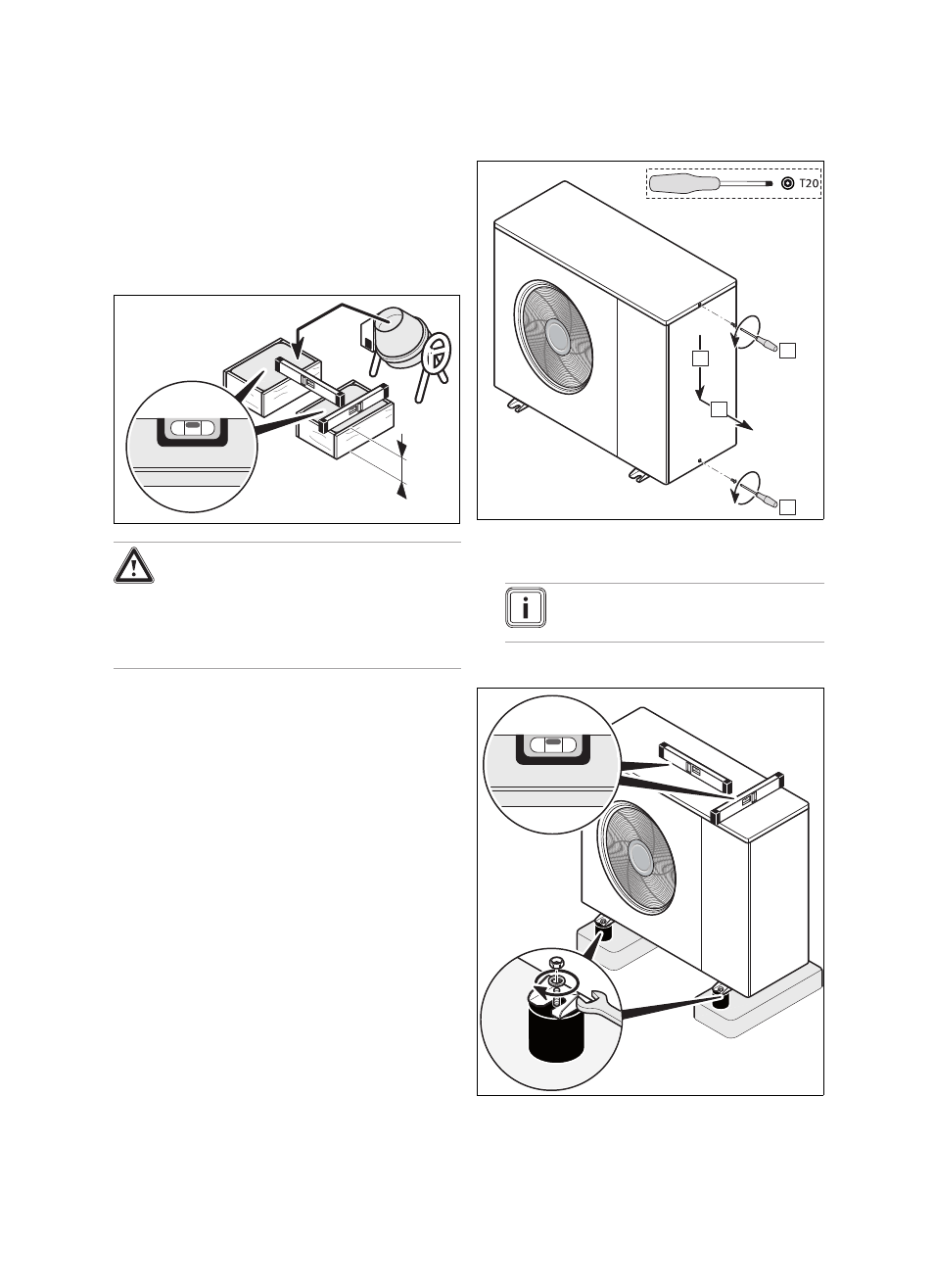

5.1.2.4 Installing the heat pump
1. Note the safety information in this manual and in the
operating instructions before installing the product.
2. Install the product on steel beams, concrete blocks or
using a wall holder (accessory).
3. Ensure that no water collects under the product.
4. In order to avoid ice formation, ensure that the ground
in front of the product can absorb water well.
5.1.2.5 Preparing the condensate discharge
>100mm
Danger!
Risk of injury due to frozen condensate.
Frozen condensate on paths may cause falls.
▶ Ensure that condensate does not dis-
charge onto paths and that ice cannot
build up there.
The condensate is discharged centrally underneath the
product.
▶ Prepare the condensate discharge using a drain line or in
a gravel bed.
5.2 Carrying out the installation
5.2.1 Removing the side casing
B
A
A
C
1. Remove both screws (A).
2. Pull the side casing downwards and then forwards.
Note
Note that the required tool is not included in
the scope of delivery.
5.2.2 Aligning the product
1. Only use bolts of a specific length.
