5 Assembly and installation

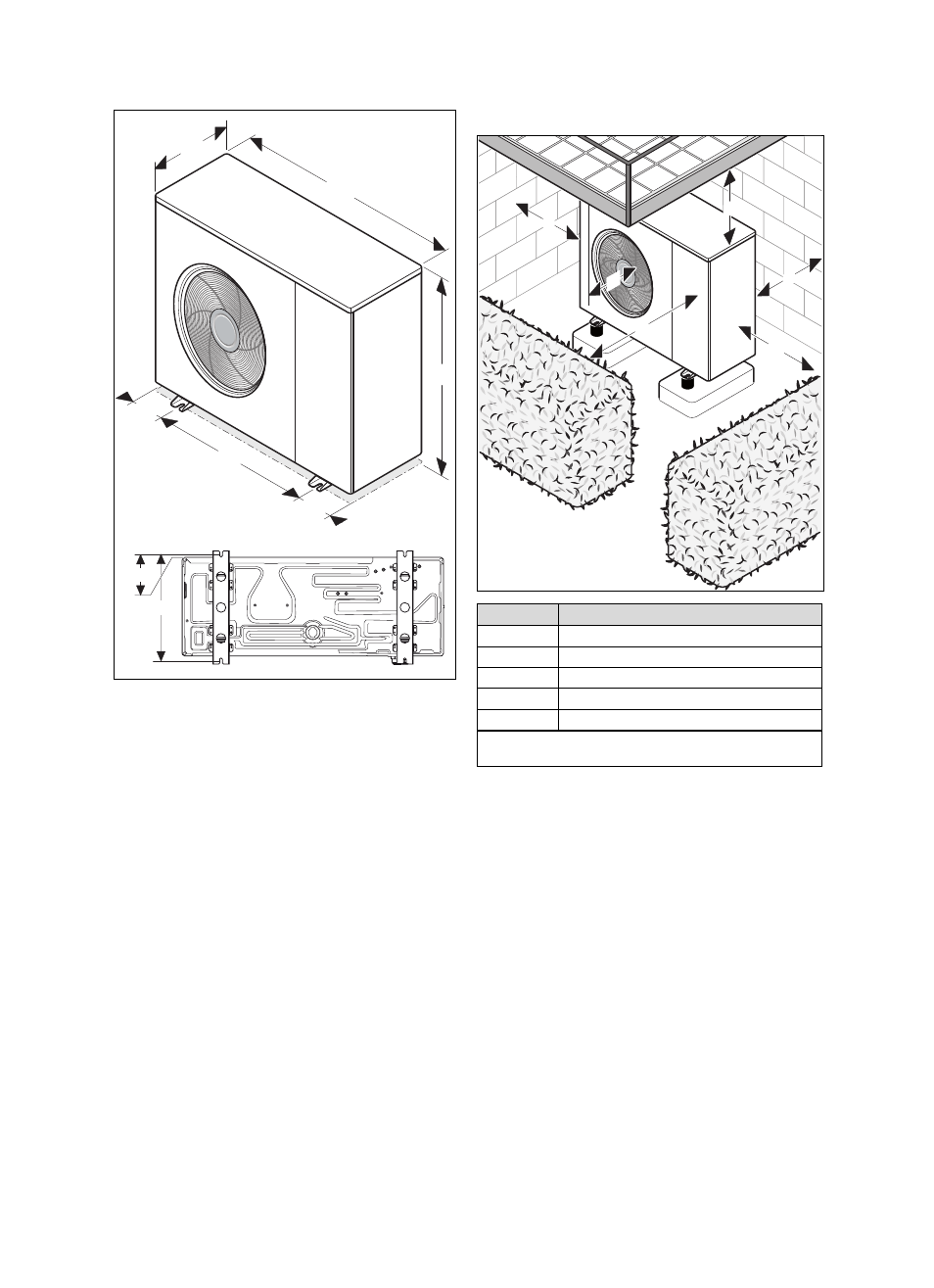

12 Installation instructions Envirosorb₃ 0020154078_03
162
162
778
1103
415
1340*
437
11
Envirosorb 15
3
* Size increases by 45 mm
when using the vibration
dampers supplied.
5.1.2.2 Installation clearance
C
B
D
A
A
E
Clearance For heating mode
A > 250 mm
B > 1000 mm
C > 120 mm*
D > 600 mm
E > 300 mm
*Caution: If the minimum clearances are not maintained, the
output of the product may be affected.
▶ To guarantee sufficient air flow and to facilitate mainten-
ance work, observe the minimum clearances that are
specified above.
▶ Ensure that there is sufficient room to install the hydraulic
lines.
▶ If the product is to be installed in areas where heavy
snow falls, ensure that the snow does not accumulate
around the product and that the minimum clearances
specified above are observed. If you cannot ensure this,
install an additional heat generator in the heating circuit.
